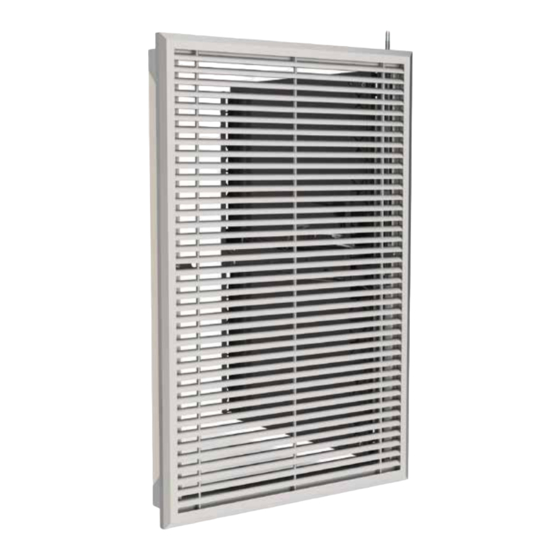

AVANTAGE DP
Motorised dual purpose CE marked AOV for protected
lobby to shaft ventilation.
RF-Technologies , 9860 Oosterzele, Belgium. info@rft.be . Distributed in the UK and Ireland by: Smoke Control Dampers Ltd.
6 Avon Gorge Industrial Estate, Avonmouth, Bristol, BS11 9LQ. T:+44 (0) 117 938 1666. sales@smokecontroldampers.co.uk
www.rft.be
Advertisement
Table of Contents
Summary of Contents for Rf-t AVANTAGE DP Series
- Page 1 AVANTAGE DP Motorised dual purpose CE marked AOV for protected lobby to shaft ventilation. www.rft.be RF-Technologies , 9860 Oosterzele, Belgium. info@rft.be . Distributed in the UK and Ireland by: Smoke Control Dampers Ltd. 6 Avon Gorge Industrial Estate, Avonmouth, Bristol, BS11 9LQ. T:+44 (0) 117 938 1666. sales@smokecontroldampers.co.uk...
-
Page 2: Table Of Contents
Table of content Table of content Declaration of performance Product presentation AVANTAGE DP Range and dimensions AVANTAGE DP 1V60/1V120 Evolution - kits Options - at the time of order Storage and handling Installation Operation and mechanisms Electrical connection Weights Selection graphs Selection data Approvals and certificates Explanation of the abbreviations and pictograms... -
Page 3: Declaration Of Performance
Declaration of performance Harmonised standard EN 12101-8:2011... -
Page 4: Product Presentation Avantage Dp
Product presentation AVANTAGE DP Product presentation AVANTAGE DP The Smoke Control Damper Avantage DP is available as single (1V) shutter units, with a double action actuator that allows the remote opening and resetting of the blade. The Avantage DP is a CE marked product certified in accordance with EN12101-8 suitable for vertical mounting within apertures in ducts or structures. -
Page 5: Evolution - Kits
Evolution - kits Evolution - kits Natural magnet 24 V DC KITS VD24-VA Volt free switches for remote signalling of open and closed damper KITS FDC-VA position. Motor DP 24V KITS ME AVANDP Options - at the time of order Damper painted black with non decorated dust coat to provide vision BLACK shading behind a fitted finishing grille... -
Page 6: Storage And Handling
∎ Rf-t smoke dampers may be applied to ducts that have been tested according to EN 1366-8 and EN 1366-9 as appropriate, con- structed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials. -
Page 7: Installation
Installation Operation: manual opening Unlocking 1V Turn the key 20° anti clockwise and the damper will push open without releasing the magnetic latch. Turn the key past 20 degrees and the latch will disengage and the damper will also push open. To re-arm the latch insert key and turn clockwise. Operation: manual closing Resetting 1V Insert the key and turn 35°... - Page 8 Installation The Avantage DP is a 24 volt DC drive open, drive closed unit in- Drill a hole in the refractory material at the chosen corner(s). corporating a 24 volt DC pulse active locking latch. It is supplied The galvanised part at the inside of the shutter is already with double insulated trailing lead cables for onsite connection indented.
- Page 9 Installation Position in the shaft The shutter is affixed to the smoke evacuation shaft through a sleeve. That sleeve can be indifferently installed: in the shaft, in the axis of the shaft or outside the shaft (or shaft extension). Maintenance ∎...
-
Page 10: Operation And Mechanisms
Operation and mechanisms Operation and mechanisms Operation: general points ∎ See under 'Installation' (manual opening and closing). Caution : please note dampers must be fully open before starting supply and/or extract fans. † VA DP MEC for motorised unlocking and resetting. Mechanism for the motorised unlocking and resetting of the Smoke Control Damper Avantage DP. -
Page 11: Weights
Weights Weights AVANTAGE DP 1V60 Hn\Wn [mm] 385 kg 10,3 11,0 11,6 415 kg 10,4 11,0 11,5 12,0 445 kg 10,3 10,8 11,4 11,9 12,5 475 kg 10,0 10,6 11,2 11,8 12,3 12,9 505 kg 10,4 11,0 11,5 12,1 12,7 13,3 535 kg 10,1... -
Page 12: Selection Graphs
Selection graphs Hn\Wn [mm] 865 kg 12,4 13,1 13,8 14,5 15,5 16,4 17,3 18,2 895 kg 12,6 13,4 14,1 14,8 15,9 16,8 17,7 18,6 925 kg 12,9 13,6 14,4 15,1 16,2 17,2 18,1 19,0 955 kg 13,1 13,9 14,7 15,4 16,5 17,5 18,5... - Page 13 Selection graphs AVANTAGE DP 1V60/1V120 Hn\Wn [mm] 385 ζ [-] 1,6965 1,4451 1,2593 1,1179 1,0059 0,9149 0,8394 0,7759 415 ζ [-] 1,5489 1,3211 1,1525 1,0238 0,9217 0,8387 0,7699 0,7118 445 ζ [-] 1,4257 1,2173 1,0629 0,9448 0,851 0,7746 0,7113 0,6578 475 ζ...
-
Page 14: Selection Data
Selection data Selection data: free air passage AVANTAGE DP 1V60/1V120 Hn\Wn [mm] 385 Sn [m²] 0,0858 0,1020 0,1182 0,1344 0,1505 0,1667 0,1828 0,1990 415 Sn [m²] 0,0946 0,1123 0,1300 0,1477 0,1653 0,1830 0,2006 0,2183 445 Sn [m²] 0,1035 0,1226 0,1419 0,1610 0,1802 0,1993...
