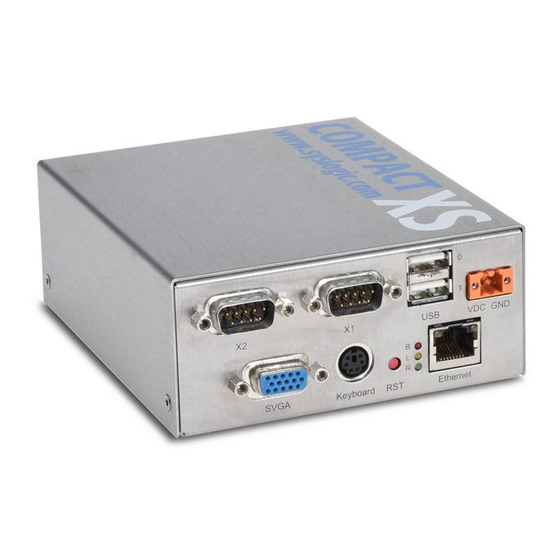

- Page 1 u s e r d o c u m e n t a t i o n IPC/COMPACT4-XS DOC/COMPACT4-XSE Revision Date Author Modification 17.09.2010 U. Müller 10.02.2011 U. Müller technical data corrected 26.04.2011 U. Müller block diagrams corrected, notes added for G...
-
Page 2: Table Of Contents
Serial Interface Configuration 3.2. IPC/COMPACT4-1F(E) 3.2.1. CPU Configuration 3.2.2. CAN Interface Configuration 3.3. IPC/COMPACT4-1G(E) 3.3.1. CPU Configuration 3.3.2. Serial Interface Configuration 4 Enclosure, Assembly and Mounting 4.1. COMPACT4-XS Dimensions 4.2. Internal Cabling © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... - Page 3 General Absolute Maximum Ratings Tab. 10 General Recommended Operating Conditions Tab. 11 General Electrical Characteristics Tab. 12 General Switching Characteristics Tab. 13 Electromagnetic Emission Tab. 14 Electromagnetic Immunity Tab. 15 Hardware Revision State © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch...
- Page 4 Additional grounding of the cable shields at the entry point of a cabinet. Fig. 9 Non isolated communication link with common chassis potential Fig. 10 Isolated communication link Fig. 11 Three side view of the IPC/COMPACT4-XS enclosure © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch...
-
Page 5: Introduction
Note that the documentation for the products is constantly revised and improved. The right to change this documentation at any time without notice is therefore reserved. Syslogic is grateful for any help referring to errors or suggestions for improvements. This documentation may contain names, company logos and registered trademarks which are... -
Page 6: Items Delivered
IPC/COMPACT4-XS: user documentation DOC/COMPACT4-XSE; V1.2 1.3. Items delivered The COMPACT4-XS family is built of standard boards and components from Syslogic. It is delivered with power connector but without external power supply and without CompactFlash for OS/application storage. 1.3.1. IPC/COMPACT4-1E(E) –... -
Page 7: Additional Products And Literature
The following software products are used together with the COMPACT base board: – IPC/IOCOMSW-1A: Sample program code and utilities for x86 based systems 1.4.3. Operating Systems Syslogic offers an implementation for the following operting systems (OS): Debian Linux Distribution CNF/DEBIAN50-4A (configuration) IPC/DEBIAN50-4A (development environment) Microsoft DOS 6.22 CPN/MSDOS622-RTL (MSDOS Licence) Others on request. -
Page 8: Documents
The products are operated with electrical power. Before manipulating the products, they must be disconnected from the power source and from the communication signals. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 9: Electro-Static Discharge
The main functionality of the IPC/COMPACT4-XS is defined by the application programs running on the system. The application programs are not part of the delivery by Syslogic but are defined, developed and tested by the customer or a system-integrator for each specific application. -
Page 10: Warranty
Therefore the Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) is not applicable. But users should still dispose the product properly at the end of life. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 11: System Overview
Interrupt Controller COM2 (8254, 2x8237, 2x8259) Watchdog (16550A, RS232) Ethernet Real Time Clock Temperature Supervisor (10/100 MBit) (Year 2000 ready) Power USB0 / USB1 (OHCI/EHCI) (10..30V DC) Fig. 1 Functional Block Diagram © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 12: Ipc/Compact4-1F(E)
COM2 (8254, 2x8237, 2x8259) Watchdog (16550A, RS232) Real Time Clock Ethernet Temperature Supervisor (Year 2000 ready) (10/100 MBit) Power USB0 / USB1 (OHCI/EHCI) (10..30V DC) (SJA1000, ISO) Fig. 2 Functional Block Diagram © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 13: Ipc/Compact4-1G(E)
Interrupt Controller COM2 (8254, 2x8237, 2x8259) Watchdog (16550A, RS422/485) Ethernet Real Time Clock Temperature Supervisor (10/100 MBit) (Year 2000 ready) Power USB0 / USB1 (10..30V DC) (OHCI/EHCI) Fig. 3 Functional Block Diagram © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 14: System Configuration
Memory Base Address C0000h SW301-7..0 Restricted (only if selected) … DBFFFh I/O Base Address 7600h Fixed (only if selected) Active Termination J401 (120E) Interrupt J302 Restricted Tab. 2 Allowable configuration options CAN interface © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 15: Ipc/Compact4-1G(E)
A small delay has to be added before disabling the transmitter because of the time needed to put the last character serialized out to the line (depending on baud rate setting). © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 16: Enclosure, Assembly And Mounting
Before assembling the whole enclosure with the electronic modules please read through the following paragraphs containing information about the assembling of the system. 4.2. Internal Cabling No internal cabling has to be done. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 17: Serviceable Parts
Remove 4 screws (M2.5x4, DIN965A, BN3310) on the side of the case. Slide back the cover part of the case. Exchange the battery or the Compact Flash card. Battery Compact Flash Fig. 5 Service of battery or Compact Flash card © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 18: Final Mounting Of The Enclosure
M4x5 Screw (DIN7985A, BN3334, M4x5, Form Z) M4 Washer (8x 4.3 x 0.5, BN726, M4) Clamp (Weidmueller, FM 4.2/TS35) DIN-Rail Cabinet-Wall Connectors Fig. 6 One possible way of mounting the IPC/COMPACT4-XS onto the DIN-Rail © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 19: Installation And Cabling
Weidmüller connector: Description Ground Tab. 4 Power connector pinout The connector can be ordered directly at your Weidmüller distributor (order code: BL3.5/2F). Order Code Type 1606640000 BL3.5/2F Tab. 5 Weidmüller power connector © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 20: Cabling The Interfaces
24V. 5.3. Cabling the Interfaces Fig. 7 Front view with connector markings 5.3.1. IPC/COMPACT4-1E(E) Connector Marking Interface Type COM1 (RS232) COM1 (RS232) Tab. 6 IPC/COMPACT4-1E: Interfaces © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 21: Ipc/Compact4-1F(E)
Important Notes Grounding of the cables shields using "pig-tail wires" are not recommended because of their high impedance at high frequencies. It is better to clamp the shields onto a grounded copper rail. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 22: Cabling Of Communication Links
10 shows an isolated system with independent grounds. Important Notes Grounding of cable shields using "pig-tails wires" are not recommended because of their high impedance at high frequencies. It is recommended to clamp the shields onto a grounded copper-rail. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 23: Fig. 9 Non Isolated Communication Link With Common Chassis Potential
Unisolated Node Potential-Ausgleichsleitung min. 10 mm Kupfer Copper-wire for Potential Adjustment, min. 10 mm Zentraler Erdpunkt am Chassis Zentraler Erdpunkt am Chassis Central Grounding Point Central Grounding Point Fig. 10 Isolated communication link © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 24: Technical Data
RJ45 to logic (AC, 60s, 500m a.s.l., 1500 Vrms Ta=25°C) isolation RJ45 to chassis (AC, 60s, 500m a.s.l., 1000 Ta=25°C) creepage distances: logic to chassis and PCB boarder logic to PC/104 mounting holes © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 25: Tab. 9 General Absolute Maximum Ratings
Non-specific electrical characteristics Vbatt loading (Vcc=0V, without SocketMemory) Ibat(off) 27.5 Vbatt loading (Vcc=5V) Ibat(on) LOWBAT* trip point 2.35 2.65 VRT trip point (RTC Valid RAM and Time Flag) Tab. 11 General Electrical Characteristics © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 26: Tab. 12 General Switching Characteristics
Real Time Clock base clock fclk 32.768 Real Time Clock accuracy (25°C) +/-20 Real Time Clock temperature coefficient -0.04 ppm/(°C)² Real Time Clock aging +/-3 ppm/year Tab. 12 General Switching Characteristics © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 27: Emi / Emc Specification
Control and singal lines Radiated E-Field, horizontal and vertical EN 55022 Class A Compliant with polarized EN 50121-3-2 E-Field-Anenna 30 – 100 MHz (referring to EUT with all cables EN 55011) Tab. 13 Electromagnetic Emission © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 28: Immunity
The IPC/COMPACT4 has been designed to meet the the following standards: – EN 60068-2-27 Basic environmental testing procedures – Part 2-27: Test Ea and guidance: Shock – EN 60068-2-6 Environmental testing – Part 2-6: Test Fc: Vibration (sinusoidal) © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 29: Mechanical Data
8.5 x 14.5 84.93 14.35 14.5 x 17 77.4 36.05 14.5 x 15.5 53.48 14.1 68.87 11.6 73.33 15.98 DSUB9 Connectors 73.33 12.68 73.33 9.38 Fig. 11 Three side view of the IPC/COMPACT4-XS enclosure © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 30: Hardware
IPC/COMPACT4-1FE #1 Original release IPC/COMPACT4-1G #1 Original release IPC/COMPACT4-1GE #1 Original release Tab. 15 Hardware Revision State 7.1. Firmware Please refer to the appropriate firmware documentation of the IPC/NETIPC-4A(E) for detailed information. © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch... -
Page 31: Manufacturer Information
Syslogic Datentechnik AG Taefernstrasse 28 CH-5405 Baden-Daettwil / Switzerland Email: info@syslogic.ch www: http://www.syslogic.ch Tel: +41 (0)56 200 90 40 Fax: +41 (0)56 200 90 50 Technical support: support@syslogic.ch © Syslogic Datentechnik AG, CH-5405 Baden-Daettwil, Switzerland, http://www.syslogic.ch...
