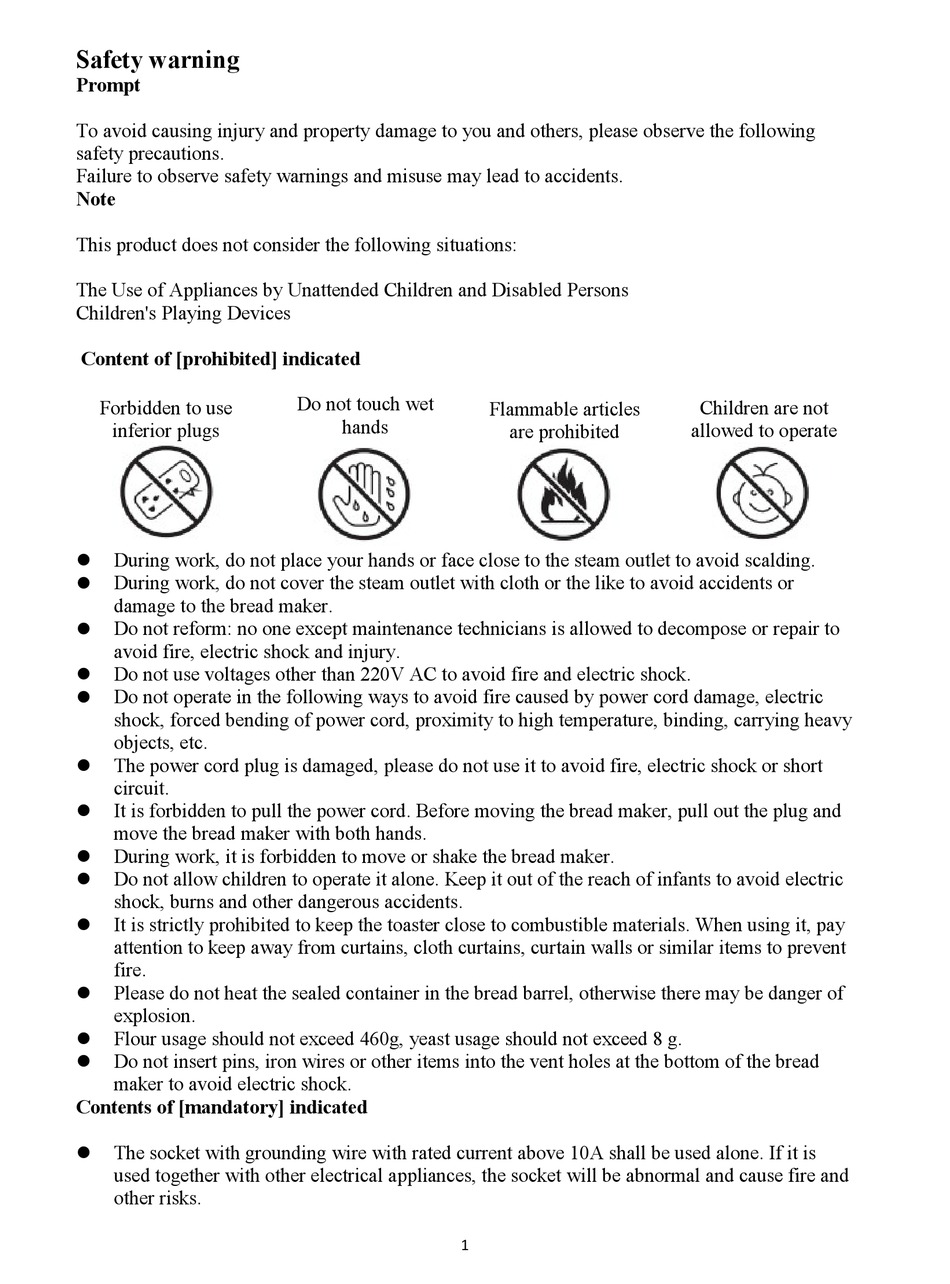

Prompt

To avoid causing injury and property damage to you and others, please observe the following
safety precautions.
Failure to observe safety warnings and misuse may lead to accidents.
Note
This product does not consider the following situations:
The Use of Appliances by Unattended Children and Disabled Persons
Children's Playing Devices
Content of [prohibited] indicated
Forbidden to use
inferior plugs
During work, do not place your hands or face close to the steam outlet to avoid scalding.
During work, do not cover the steam outlet with cloth or the like to avoid accidents or
damage to the bread maker.
Do not reform: no one except maintenance technicians is allowed to decompose or repair to
avoid fire, electric shock and injury.
Do not use voltages other than 220V AC to avoid fire and electric shock.
Do not operate in the following ways to avoid fire caused by power cord damage, electric
shock, forced bending of power cord, proximity to high temperature, binding, carrying heavy
objects, etc.
The power cord plug is damaged, please do not use it to avoid fire, electric shock or short
circuit.
It is forbidden to pull the power cord. Before moving the bread maker, pull out the plug and
move the bread maker with both hands.
During work, it is forbidden to move or shake the bread maker.
Do not allow children to operate it alone. Keep it out of the reach of infants to avoid electric
shock, burns and other dangerous accidents.
It is strictly prohibited to keep the toaster close to combustible materials. When using it, pay
attention to keep away from curtains, cloth curtains, curtain walls or similar items to prevent
fire.
Please do not heat the sealed container in the bread barrel, otherwise there may be danger of
explosion.
Flour usage should not exceed 460g, yeast usage should not exceed 8 g.
Do not insert pins, iron wires or other items into the vent holes at the bottom of the bread
maker to avoid electric shock.
Contents of [mandatory] indicated
The socket with grounding wire with rated current above 10A shall be used alone. If it is
used together with other electrical appliances, the socket will be abnormal and cause fire and
other risks.
Do not touch wet
hands
1
Flammable articles
are prohibited
Children are not
allowed to operate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM-TLS2010 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea MM-TLS2010 2

  • Page 1 Safety warning Prompt To avoid causing injury and property damage to you and others, please observe the following safety precautions. Failure to observe safety warnings and misuse may lead to accidents. Note This product does not consider the following situations: The Use of Appliances by Unattended Children and Disabled Persons Children's Playing Devices Content of [prohibited] indicated...
  • Page 3 Safety warning  The appliance cannot be operated by external timer or independent remote control system.  If there is dust or water mark on the power cord plug, plug tail and product socket, please clean it in time to avoid fire, electric shock or short circuit. ...
  • Page 4 Product introduction Part display Note Due to the differences in product appearance, the following figure is for reference only, and the actual objects in the packing box shall prevail. Upper cover handle Fruit box Bread barrel Control panel Fuselage Heat dissipation hole Stirring plate Measuring spoon Flour measuring...
  • Page 5 Installation instructions Brief introduction of accessories 1 Measuring cup Measure flour: 1 cup = about 150g Measure water and other liquids: please refer to the scale of cup wall. 2 Measuring spoons Large spoon Small spoon Measure flour: 1 cup = about 150g Measure water and other liquids: please refer to the scale of cup wall.
  • Page 7 Installation instructions Loading and unloading bread barrel Extract 1 Rotate counterclockwise in the direction marked "Loosen" on the inner wall. Can be raised upward. Installation 1 Press down lightly. 2 Rotate clockwise in the direction marked "locked" on the inner wall. Note: When the side of the bread barrel is parallel to the cavity of the bread maker, it will be installed in place.
  • Page 8 Take out the bread barrel and put the food inside to prevent the food from falling into the body and failing. Yeast cannot directly contact with oil, sugar, salt or aqueous solution containing these substances, otherwise yeast will lose its activity, resulting in production failure.
  • Page 9 Direction for use Quick Start 1 Connect power supply Note: Do not operate the machine when it is in the initial state within 3 seconds of power-on. If the key is abnormal, please power on again. 2 Setting options  Menu setting: select the menu by clicking the "menu"...
  • Page 10 Direction for use Functional description Scheduled production Note: The reservation time is the time difference between the cooking time and the current time. 1 Prepare materials Take out the bread barrel and put in the ingredients. 2 Setting options  Menu setting: select the menu by clicking the "menu"...
  • Page 11 Direction for use Functional description Take out the bread 1. After the heat preservation, please take out the bread barrel. Note: Please wear gloves or other thermal insulation to prevent burns after baking. Please refer to the previous installation instructions for the extraction of the bread barrel. 2.
  • Page 12 Rated Heating Motor power bread that can supply power (w) pipe (w) be made (g) 20V~50HZ 750/1000 MM-TLS2010 2 220V~50H 750/1000 TS20POWER301 Circuit schematic diagram Prompt The route is subject to change without prior notice. display panel Asynchronou Motor starting...
  • Page 13 tube after cooling. The stirring piece is tightly Take out the bread, soak the bread barrel It is difficult to take adhered to the stirring in warm hot water for 10 minutes, and out the stirring piece. rotating shaft of the bread take out the stirring pieces to clear them.
  • Page 14 Service guide Bread is not well made. Not well made Cause analysis Corresponding method Excessive yeast, flour or water Bread fermentation also cause this Reduce the amount of yeast, flour or volume is too large, phenomenon water appropriately. resist the upper cover. temperature is too high.
  • Page 15 According to the abnormal reason judgment, please entrust the local dealer or service outlet to repair or install. Abnormal Possible causes Corresponding method display Please send it to the Temperature sensor open circuit maintenance point for repair. Please send it to the Temperature sensor short circuit maintenance point for repair.
