- Page 1 WOLGATE STORE TECHNICAL MANUAL Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01...
-
Page 2: Table Of Contents
Lubricants and Adhesives ....................17 Exploded View of the Mechanism ................... 18 List of Mechanism Parts ....................19 Wiring diagram - PWDM II module ................. 20 General dimensions ......................21 Warranty ......................... 22 Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 1... -
Page 3: Introduction
Site.: www.wolpac.com/assistenciatecnica Make sure the version of this manual is the most up to date! Wolpac reserves the right to make any changes to this document, or to the technical specifications of the product without prior or subsequent notification to any organization. -
Page 4: Important Safety Instructions
General Instructions The main features of the Wolgate Store, how it should be installed, as well as the care to be taken for the correct operation of the equipment, are described in this manual. Read carefully before starting any type of operation to ensure the total and full performance of the product. -
Page 5: Product Description

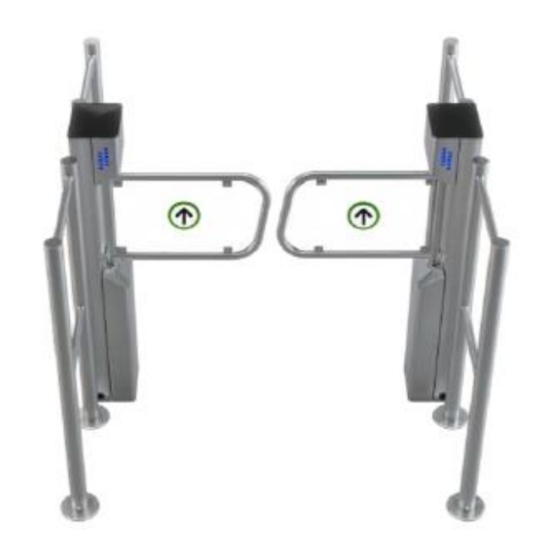

With a sophisticated design, the Wolgate Store applies to various environments and architectural projects, can be used in both directions of passage, from (A) to (B) or vice versa, as shown below, and is controlled only by infrared sensors, a keypad or any other validation systems. -
Page 6: Equipment Composition
3 - Main Cabinet 4 - Guiding Pictogram 5 - Passage Guidance Label 6 - Lower Front Cover 7 - Sensor Controlled Closure (Optional) 8 - Lower Cover attachment screws Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 5... -
Page 7: Technical Specifications
20,000 hours MTTR (Mean Time to Repair): Max. 30 min. Working temperature: -5 to 50°C Storage temperature: -10 to 55°C Relative humidity: Max. 95% non-condensing Approximate weight: 30 kg (individual). Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 6... -
Page 8: Installation
Wolpac. Please have the Technical Manual on hand, as provided by Wolpac. Wolpac is not responsible for any injury or damage occurring due to noncompliance with the instructions contained in this Technical Manual provided with the product. - Page 9 Chemical anchors can be used in cases where there is not enough concrete layer or on special floors such as granite. Under the floor, conduits with a minimum diameter of 1" (25.4 mm) must be provided, with passage boxes at the points indicated in the installation drawing (Fig. page.10). Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01...
- Page 10 The electrical installation of this product must be performed by a qualified technical team. The handling, installation and specifications of the cables must be in accordance with the instructions based on this manual. Basic preparation of the electrical installation Two types of cabling are required for Wolgate Store equipment: • Power cabling •...
- Page 11 Detail of the individual attachment of the equipment *Dimensions in mm Detail of the installation of the set (900 and 1200 mm) 1” passage ducts Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 10...
-
Page 12: Turning On The Equipment
After the check, the steps must be redone and if the problem persists, technical assistance should be contacted by e-mail www.wolpac.com/assistenciatecnica. Congratulations! The equipment is ready for use and integration! Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01... - Page 13 In the correct direction of passage, the infrared sensor barrier is installed at the beginning of the passage area determined by its use. When the user passes through the sensor beam, the Wolgate Store exit gates open automatically, leaving the passage area free for this same user. After the end of a predefined time, which can be configured when installing the product, the gates close and the equipment is ready to be used again.
- Page 14 In the correct direction of passage, the infrared sensor barrier is installed at the beginning of the passage area determined by its use. When the user passes through the sensor beam, the Wolgate Store exit gates open automatically, leaving the passage area free for this same user. After the end of a predefined time, which can be configured when installing the product, the gates close and the equipment is ready to be used again.
-
Page 15: Instructions For Use
Using the Wolgate Store The Wolgate Store is equipped with a motorized mechanism that works in the closed gates regime and is able to work in uni- or bidirectional form (in one or both directions). The equipment normally has its gates closed and in the event of attempted passage by an unauthorized user, a motor brake system forces the automatic return of the gates. -
Page 16: Mechanism
2 – Main Shaft 3 - Shaft - Motor Coupling 4 - Speed reducer 5 – Upper Bearing – Radial 6 - Mechanism Support 7 - Lower Bearing - Axial Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 15... -
Page 17: Preventative Maintenance
• There are certain parts in this mechanism that require special care, such as the lubrication of mechanical items as described and demonstrated in the figure below. The use of specific lubricants described in item 12 is essential. Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01... -
Page 18: Lubricants And Adhesives
Support mounting screws (sensors, encoder etc.) HH 115 Radial Bearing Lubricant elements which are intended to be (Medium grease MP-2 removed Lock Nuts Axial Bearing torque) Cover attachment screws Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 17... -
Page 19: Exploded View Of The Mechanism
13. Exploded View of the Mechanism Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 18... -
Page 20: List Of Mechanism Parts
DIN 7985 CROSS RECESSED RAISED CHEESE HEAD SCREWS M3 00289 3 MM SPRING WASHER 00326 STAINLESS STEEL POP RIVET 4.8 x 14 MM 00355 24V 30W BRUSHLESS MOTOR 29329 Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 19... -
Page 21: Wiring Diagram - Pwdm Ii Module
15. Wiring diagram - PWDM II module Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 20... -
Page 22: General Dimensions
16. General dimensions Individual Equipment Area Composed of two pieces of Equipment Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 21... -
Page 23: Warranty
17. Warranty I - This product is warranted by Wolpac - Sistemas de Controle Ltda for a period of 365 days (limited warranty), against any defects in material or workmanship, provided the following conditions are met: a) For the warranty to be valid, it is essential that the product seals remain intact and its identification label does not show signs of violation. - Page 24 WOLPAC CONTROLES EFICIENTES Comercial e Fábrica Rua Iijima, 554 Ferraz de Vasconcelos – SP – Brasil Tel.: (5511) 4674-8000 www.wolpac.com.br Wolpac Controles Eficientes Engineering Dept. MT-102 Aug/2019 Rev.: 01 Page 23...
