Summary of Contents for XMark Fitness XM-9025

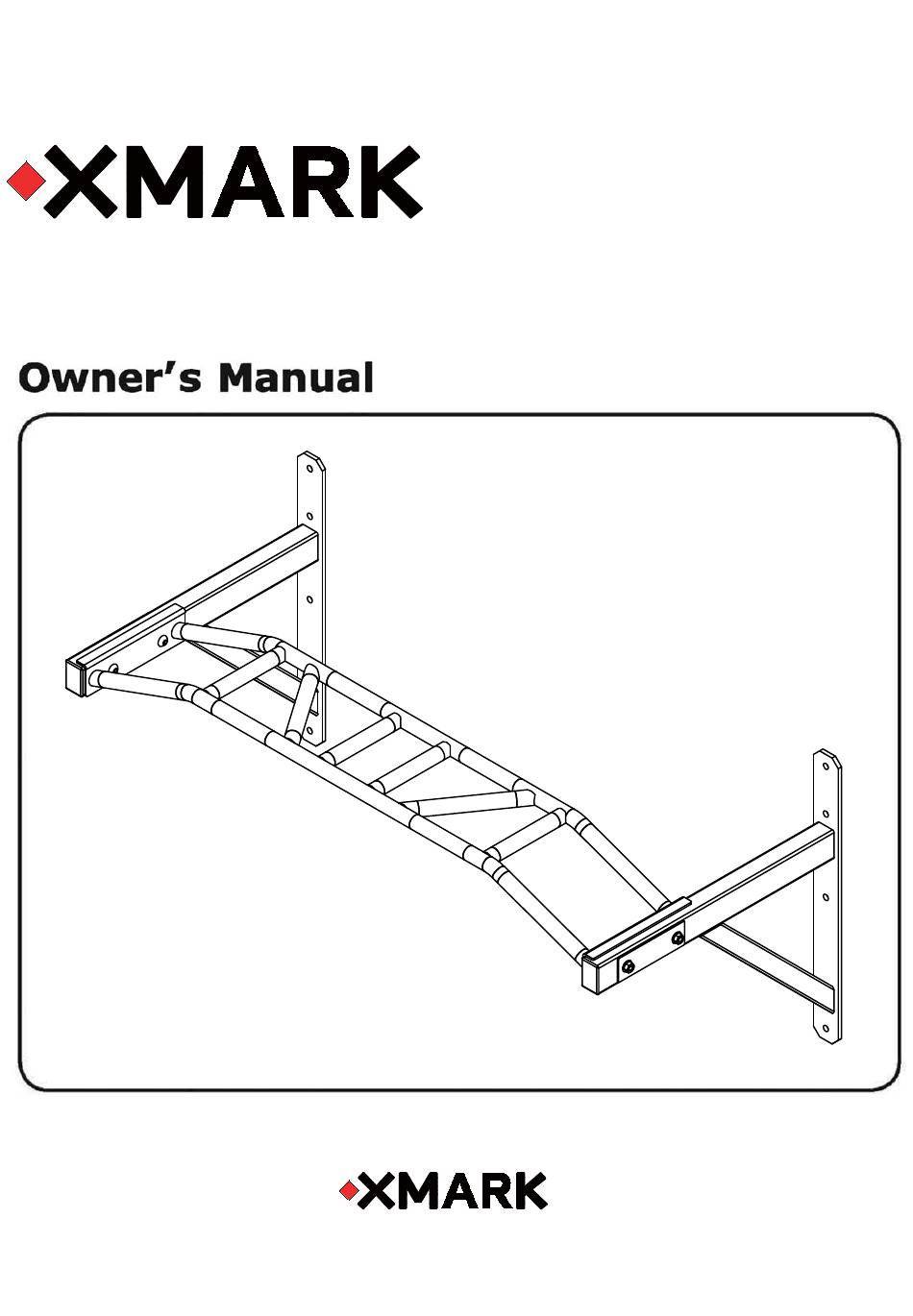

- Page 1 XM-9025 Wall Mounted Multi-Grip Pull Up Bar 2/17...
- Page 2 CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions ---------------------------------------------------------------- Instructions------------------------------------------------------------------------------------ Parts List --------------------------------------------------------------------------------------- Exploded View ------------------------------------------------------------------------------- Measurement Guide ------------------------------------------------------------------------ Assembly Instructions ---------------------------------------------------------------------- Assembly -------------------------------------------------------------------------------------- Please visit xmarkfitness.com for warranty information.
- Page 4 1-800-719-4605 Drill and 1/4" Drill Bit...
- Page 5 Item No. Description Wall Bracket Pull Up Bar Reinforcement Plate Rectangular Plug Button Head Cap Screw M12*65 Flat Washer #12 Nylon Lock Nut M12 Self Tapping Screw ST9.5*75 Flat Washer #10...
- Page 9 Note: Pre-drill pilot holes with a 1/4" drill bit. Attach the Wall Bracket (1#) to the 2 x 4 stud centers (48" apart) using: - eight ST9.5*75 Self Tapping Screw (8#) - eight #10 Flat Washer (9#) Note: Wrench Tighten Bolts.
- Page 10 Attach the Pull Up Bar (2#) and Reinforcement Plates (3#) to the Wall Brackets(1#) using: - four M12*65 BHCS (5#) - four #12 Flat Washer (6#) - four M12 Nylon Lock Nut (7#) Note: Wrench Tighten Bolts and Nylon Lock Nuts.
- Page 11 Customer Service: 1-800-719-4605...
