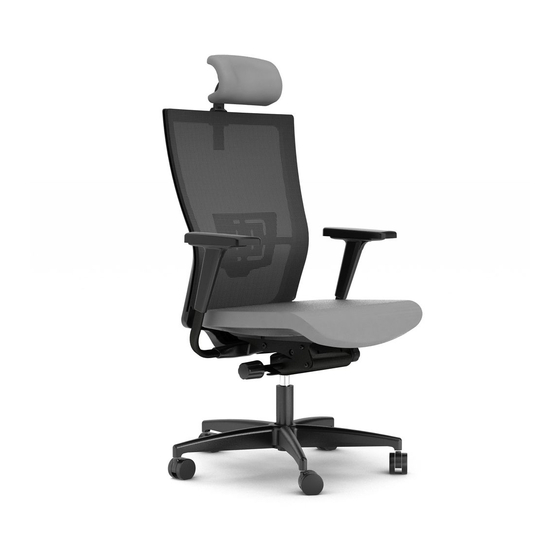

- Page 1 USER MANUAL TEAM 2013 Mechanism KT Mechanism CT100 Mechanism MC Mechanism...
- Page 2 USER MANUAL TEAM 2013 MECHANISM Seat Height Adjustment Seat Height Adjustment Seat Depth Adjustment Seat Depth Adjustment Tilt Tension Tilt Tension Tilt Limiter Tilt Limiter Armrest Height Adjustment Armrest Height Adjustment Backrest Height Adjustment Backrest Height Adjustment Headrest Height Adjustment Headrest Height Adjustment Headrest Angle Adjustment Headrest Angle Adjustment...
- Page 3 Seat Height Adjustment Lever under right side of seat To raise: Take your weight o the seat, lift lever up. To lower: Remain seated, lift lever up. 013 MECHANISM Allows you to adjust the height of the seat, for good support and blood circulation in the legs.
- Page 4 Seat Depth Adjustment Lever under left side of seat To move forward / backward Press lever and adjust seat either forward or backward. Release lever to lock in position. Allows you to adjust the depth of the seat, for good support and blood circulation in the legs.
- Page 5 Tilt Tension Knob below front side of seat To increase: Turn knob clockwise. To decrease: Turn knob counterclockwise Set the resistance when leaning back to support and balance your weight in any position.
- Page 6 Tilt Limiter Lever under right side of seat To engage: Push the lever in to lock the tilting mechanism. To release: Pull out the lever to unlock the tilting mechanism. Allows you to sit in an upright position or partially reclined locked position.
- Page 7 Armrest Adjustment Lever under armrest pad To raise or lower: Press lever to unlock arm, adjust arm, release lever to lock. Adjust chair’s arm height to support your arms and take weight o your shoulders. Saya Soul Armrest Presa Soul Armrest Saya Armrest •...
- Page 8 Backrest Height Adjustment Bottom corners of backrest To raise: Grasp and lift up the bottom portion of the backrest and release to desired height. To lower: Grasp and lift up the backrest to its maximum height and release back to its lowest postition.;...
- Page 9 Headrest Height Adjustment Rear of the headrest To raise or lower headrest: Grasp the rear of headrest and slide it up or down to desired height. Adjust headrest’s height to support your head and neck when leaning back.
- Page 10 Headrest Angle Adjustment Side edges of headrest To pivot headrest: Grasp side edges of headrest and pivot the angle to desired position. Adjust headrest’s angle to support your head and neck when leaning back.
- Page 11 USER MANUAL TEAM KT MECHANISM Seat Height Adjustment Seat Depth Adjustment Tilt Tension Tilt Limiter Armrest Height Adjustment Backrest Height Adjustment Headrest Height Adjustment Headrest Angle Adjustment...
- Page 12 Seat Height Adjustment Lever under right side of seat To raise: Take your weight o the seat, lift lever up. To lower: Remain seated, lift lever up. 013 MECHANISM Allows you to adjust the height of the seat, for good support and blood circulation in the legs.
- Page 13 Seat Depth Adjustment Lever under left side of seat To move forward / backward Press lever and adjust seat either forward or backward. Release lever to lock in position. Allows you to adjust the depth of the seat, for good support and blood circulation in the legs.
- Page 14 Tilt Tension Knob below front side of seat To increase: Turn knob clockwise. To decrease: Turn knob counterclockwise. Set the resistance when leaning back to support and balance your weight in any position.
- Page 15 Tilt Limiter Lever under left side of seat To engage: Recline and twist lever counter- clockwise to lock the tilting mechanism. To disengage: Twist lever clockwise and lean backward slightly to unlock the tilting mechanism. Allows you to sit in an upright position or partially reclined locked position.
- Page 16 Armrest Adjustment Lever under armrest pad To raise or lower: Press lever to unlock arm, adjust arm, release lever to lock. Adjust chair’s arm height to support your arms and take weight o your shoulders. Saya Soul Armrest Presa Soul Armrest Saya Armrest •...
- Page 17 Backrest Height Adjustment Bottom corners of backrest To raise: Grasp and lift up the bottom portion of the backrest and release to desired height. To lower: Grasp and lift up the backrest to its maximum height and release back to its lowest postition.
- Page 18 Headrest Height Adjustment Rear of the headrest To raise or lower headrest: Grasp the rear of headrest and slide it up or down to desired height. Adjust headrest’s height to support your head and neck when leaning back.
- Page 19 Headrest Angle Adjustment Side edges of headrest To pivot headrest: Grasp side edges of headrest and pivot the angle to desired position. Adjust headrest’s angle to support your head and neck when leaning back.
- Page 20 USER MANUAL TEAM CT100 MECHANISM Seat Height Adjustment Tilt Tension Tilt Limiter Armrest Height Adjustment Backrest Height Adjustment Headrest Height Adjustment Headrest Angle Adjustment...
- Page 21 Seat Height Adjustment Lever under right side of seat To raise: Take your weight o the seat, tilt the lever handle forward down. To lower: Remain seated, tilt the lever handle forward down again. Allows you to adjust the height of the seat, for good support and blood circulation in the legs.
- Page 22 Tilt Tension Knob below front side of seat To increase: Turn knob clockwise. To decrease: Turn knob counterclockwise Set the resistance when leaning back to support and balance your weight in any position.
- Page 23 Tilt Limiter Lever under right side of seat To engage: Push the lever in to lock the tilting mechanism. To release: Pull out the lever to unlock the tilting mechanism. Allows you to sit in an upright position or partially reclined locked position.
- Page 24 Armrest Adjustment Lever under armrest pad To raise or lower: Press lever to unlock arm, adjust arm, release lever to lock. Adjust chair’s arm height to support your arms and take weight o your shoulders. Presa Soul Armrest Saya Armrest •...
- Page 25 Backrest height adjustment Bottom corners of backrest To raise: Grasp and lift up the bottom portion of the backrest and release to desired height. To lower: Grasp and lift up the backrest to its maximum height and release back to its lowest position.
- Page 26 Headrest Height Adjustment Rear of the headrest To raise or lower headrest: Grasp the rear of the headrest and slide it up or down to desired height. Adjust headrest’s height to support your head and neck when leaning back.
- Page 27 Headrest Angle Adjustment Side edges of headrest To pivot headrest: Grasp side edges of headrest and pivot the angle to desired position. Adjust headrest’s angle to support your head and neck when leaning back.
- Page 28 USER MANUAL TEAM MC MECHANISM Seat Height Adjustment Seat Depth Adjustment Tilt Tension Tilt Limiter Armrest Height Adjustment Backrest Height Adjustment Headrest Height Adjustment Headrest Angle Adjustment...
- Page 29 Seat Height Adjustment Lever under right side of seat To raise: Take your weight o the seat, lift lever up. To lower: Remain seated, lift lever up. 013 MECHANISM Allows you to adjust the height of the seat, for good support and blood circulation in the legs.
- Page 30 Seat Depth Adjustment Lever under left side of seat To move forward / backward Press lever and adjust seat either forward or backward. Release lever to lock in position. Allows you to adjust the depth of the seat, for good support and blood circulation in the legs.
- Page 31 Tilt Tension Right side under the seat To increase: Turn knob clockwise. To decrease: Turn knob counterclockwise. Set the resistance when leaning back to support and balance your weight in any position.
- Page 32 Tilt Limiter Lever under left side of seat To engage / disengage: Choose 4 desired angle position before reclining by twisting the knob. Allows you to choose your tilting angle.
- Page 33 Armrest Adjustment Lever under armrest pad To raise or lower: Press lever to unlock arm, adjust arm, release lever to lock. Adjust chair’s arm height to support your arms and take weight o your shoulders. Saya Soul Armrest Presa Soul Armrest Saya Armrest •...
- Page 34 Backrest Height Adjustment Bottom corners of backrest To raise: Grasp and lift up the bottom portion of the backrest and release to desired height. To lower: Grasp and lift up the backrest to its maximum height and release back to its lowest postition.
- Page 35 Headrest Height Adjustment Rear of the headrest To raise or lower headrest: Grasp the rear of headrest and slide it up or down to desired height. Adjust headrest’s height to support your head and neck when leaning back.
- Page 36 Headrest Angle Adjustment Side edges of headrest To pivot headrest: Grasp side edges of headrest and pivot the angle to desired position. Adjust headrest’s angle to support your head and neck when leaning back.
- Page 38 Contact Malaysia...
