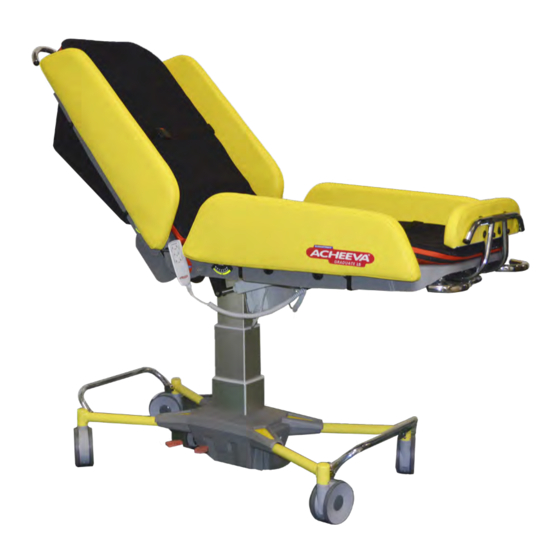

- Page 1 Instruction Manual for Graduate & Student Models...
- Page 2 This manual applies to the Graduate models with serial number GRAD19003 and up, and Student models with serial STU19004 and up. SERIAL NUMBER: DATE OF MANUFACTURE:...
-
Page 3: Table Of Contents
CONTENTS Guarantee Introduction Safety Battery system Features Handset Adjustments Positioning pack Fitting and cleaning ACHEEVA® reset Dimensions and Model comparison chart... -
Page 4: Guarantee
GUARANTEE The ACHEEVA® Learning Station Guarantee includes upholstery and covers, against defective materials and faulty workmanship for a period of TWELVE MONTHS from the date of purchase. This guarantee is valid for fair wear and tear only and not valid in cases of misuse or uses other than those specified in this instruction manual. -
Page 5: Introduction
INTRODUCTION ACHEEVA® Learning Stations ACHEEVA® Learning Stations have proven to be truly inclusive, allowing students who have to spend time in the lying position to join in all classroom activities – providing safe, supported lying. The ACHEEVA® Student is the smaller version and can cater for clients up to 155cm tall and 120kg, the ACHEEVA®... -
Page 6: Safety
SAFETY SAFE USE OF YOUR ACHEEVA® LEARNING STATION Using the ACHEEVA® in transit is NOT recommended and will invalidate the warranty. When selecting and issuing a piece of equipment it is the responsibility of the therapist to carry out a risk analysis on its use. This is particularly pertinent for non-ambulant users who may require assisted transfers. - Page 7 SAFETY INCORRECT USE OF THIS PRODUCT CAN CAUSE ACCIDENTS • Do not allow anyone to sit, stand or put excessive weight on the ends of the bed or push handles of this ACHEEVA® • The user must always be positioned within the wheelbase of the ACHEEVA® and a posture belt may be necessary to achieve this at all times •...
-
Page 8: Battery System
BATTERY SYSTEM CARE AND USE OF THE BATTERY SYSTEM The battery pack is fully charged before delivery and will last for over one hundred operations. When the battery reaches the minimum level and requires charging, an audible warning will sound every time a button is pressed on the handset. We recommend the battery is charged at least once a week and you do not wait for the minimum level to be reached. -
Page 9: Features
FEATURES PADDED FOOTSTOP SPLIT PADDED DROP DOWN COTSIDES SIDE TABLE (OPTIONAL) VELCRO RECEPTIVE MATTRESS SIDE TABLE LOCATION HOLES CHROME PUSH HANDLES INCLINOMETER HANDSET CONTROL PRONE TABLE (OPTIONAL) LOCKING CASTOR SERIAL NUMBER LOCATED ON BASE MESH ACCESSORY BAG FIFTH WHEEL (GRADUATE MODEL ONLY) CHROME BRAKE BAR ANGLE GAUGES... -
Page 10: Handset

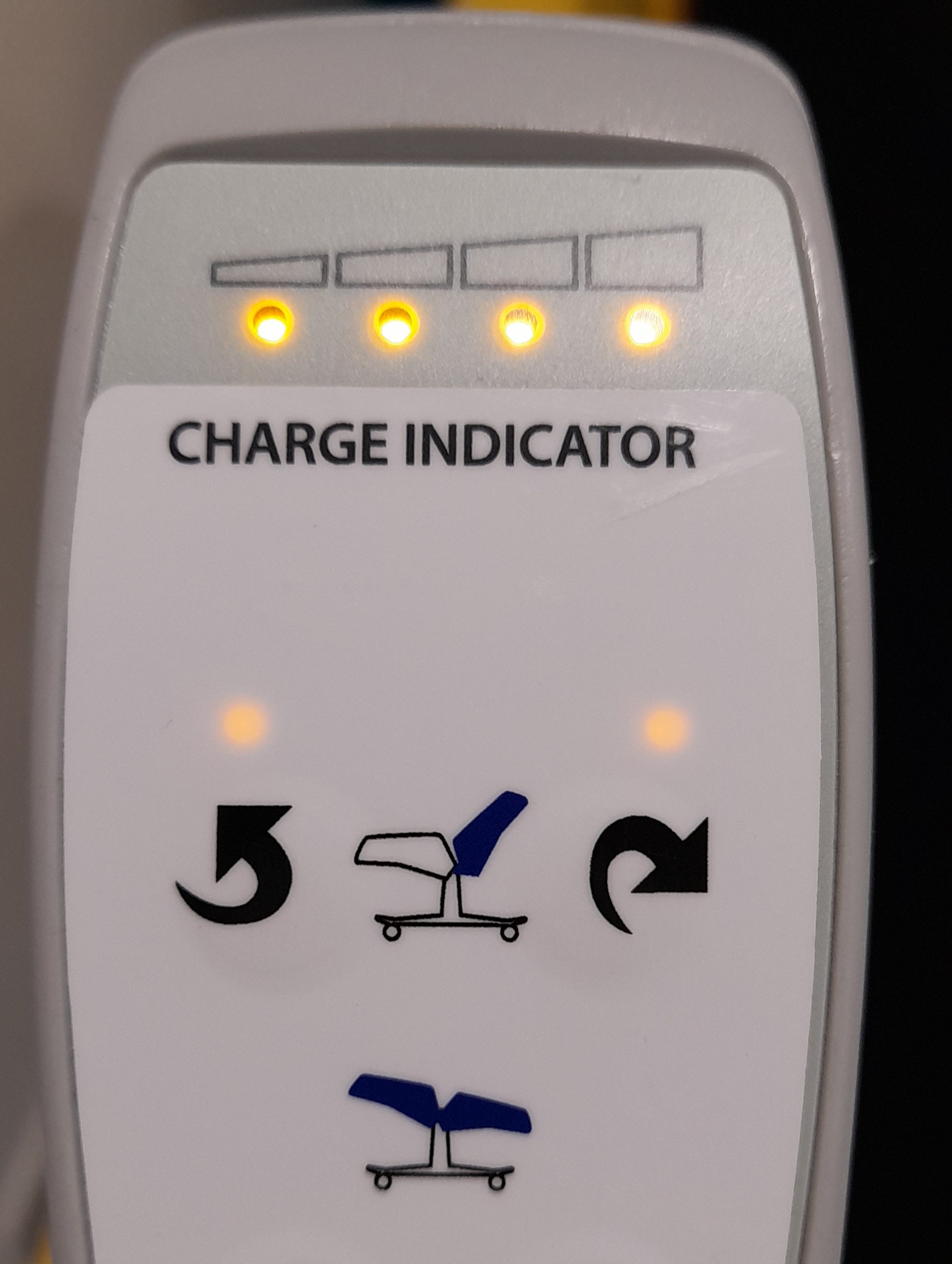

HANDSET HANDSET OPERATION The three main mechanisms are operated by the handset shown to the left. There are six buttons to operate the head, tilt and lift functions. Follow the guide on the next page on how to the adjust the ACHEEVA® head, tilt and lift using the handset. - Page 11 HANDSET HEAD To raise or lower the head section of the ACHEEVA®, use the two top buttons shown on the handset. TILT To tilt the ACHEEVA®, use the two middle buttons on the handset. * LIFT To lower or elevate the ACHEEVA® , use the two bottom buttons on the handset.
-
Page 12: Adjustments
ADJUSTMENTS REPOSITIONING - 5th Wheel (Graduate model only) The 5th wheel is located in the Graduate base frame and is engaged/disengaged by a set of pedals on either side of the ACHEEVA®. The additional wheel increases manoeuvrability and reduces the effort required to move the larger unit around. The wheel is engaged by pressing The wheel is disengaged by pressing down on the pedal, so the wheel... - Page 13 ADJUSTMENTS COT SIDE RELEASE MECHANISM This enables the complete cot side to be lowered out of the way, so that side transfer can be achieved or a sling can be put in position. In their standard position the cot sides are vertical and are locked about a pivot pin.
- Page 14 ADJUSTMENTS PRONE TABLE The ACHEEVA® has the facility for a table to be attached at the head end for prone use or in any of the four side positions when side lying. To connect the table, insert both the left and right arms into the guide pieces. The red release button should “click”...
- Page 15 ADJUSTMENTS TABLE HEIGHT & ANGLE When using the prone or side positions, the table’s height can be adjusted to suit the user’s arm length/activity. To change the height, release the two clamping levers on the sides of the vertical frame and slide the table up or down the bars to reposition it at the required position.
-
Page 16: Positioning Pack
POSITIONING PACK Based on the Symmetrisleep® system the ACHEEVA® positioning packs provide support in supine, side or prone lying. The system consists of a cushion, a side lying leg support, medium roll and a number of positioning brackets. The mattress has a Velcro® friendly cover, enabling firm secure positioning and relocation of the brackets. -
Page 17: Fitting And Cleaning
FITTING & CLEANING FITTING AND CLEANING INFORMATION PU WIPE DOWN “BREATHABLE” MATTRESS COVER. Wipe clean with a soft cloth moistened with water and a neutral detergent. DO NOT use bleach or any biological cleaners. Machine wash* or dry clean with detergent up to 40°C - some surface wrinkling may occur, however this has no adverse effect on the fabric properties. -
Page 18: Dimensions And Model Comparison Chart
DIMENSIONS DIMENSION GRADUATE STUDENT (refer to diagram opposite) inches inches A - OVERALL LENGTH 85.82 64.96 B - MATTRESS LENGTH 81.89 61.02 C - MATTRESS WIDTH 23.62 23.62 D - OVERALL WIDTH 27.56 27.56 E - OVERALL HEIGHT RANGE 76 - 116 29.9 - 76 - 116 29.9 -... - Page 19 DIMENSIONS...
- Page 20 Tel: 01531 635388 www.symmetrikit.com sales@symmetrikit.com The Helping Hand Company Bromyard Road, Ledbury Herefordshire HR8 1NS Tel: 01531 635678 MANFA2011GB_2 sales@helpinghand.co.uk...
Need help?
Do you have a question about the ACHEEVA GRADUATE and is the answer not in the manual?
Questions and answers

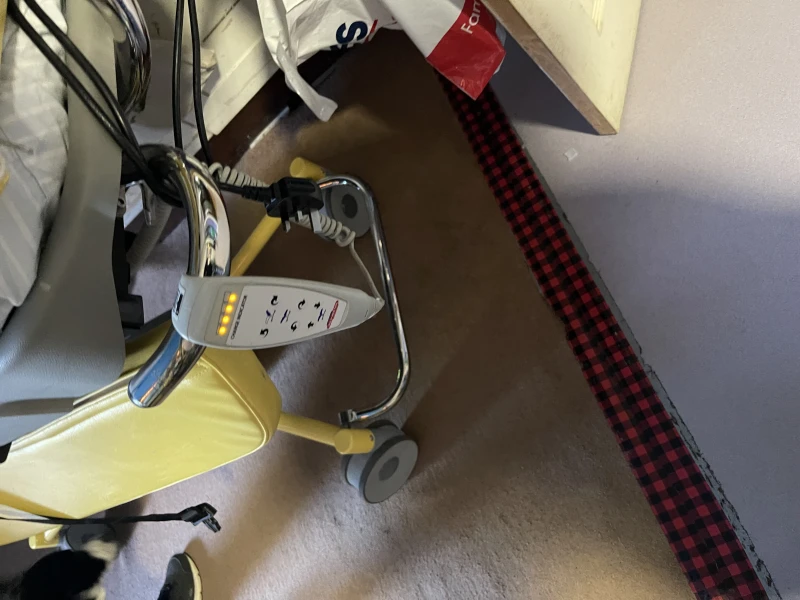

Acheeva Graduate will not come down. Followed reset instructions 5 or six times but as soon as it is level after feet down pressing the lower button causes all lights to flash and nothing happens.
If the Symmetrikit Acheeva Graduate will not come down after following the reset instructions, the issue may be due to the battery being at a minimum charge level. In this case, charge the battery by unwinding the charge cable, plugging the charger into a suitable mains power supply, and allowing it to charge for approximately 8 hours. Ensure the battery is charged at least once a week to avoid shutdown.
This answer is automatically generated
Bed will not do anything , the controller has 4 lights at the top so n
Our Acheeva handset is flashing all lights when buttons are pressed, beeping instead of responding. It is fully charged, and I tried switching handset off/on and following reset instructions in manual, but nothing happened except more flashing and beeping. What is the cause of this?
