EVOLV Tour 2.0 Operation Manual

Dashboard

Table of Contents

Download this manual

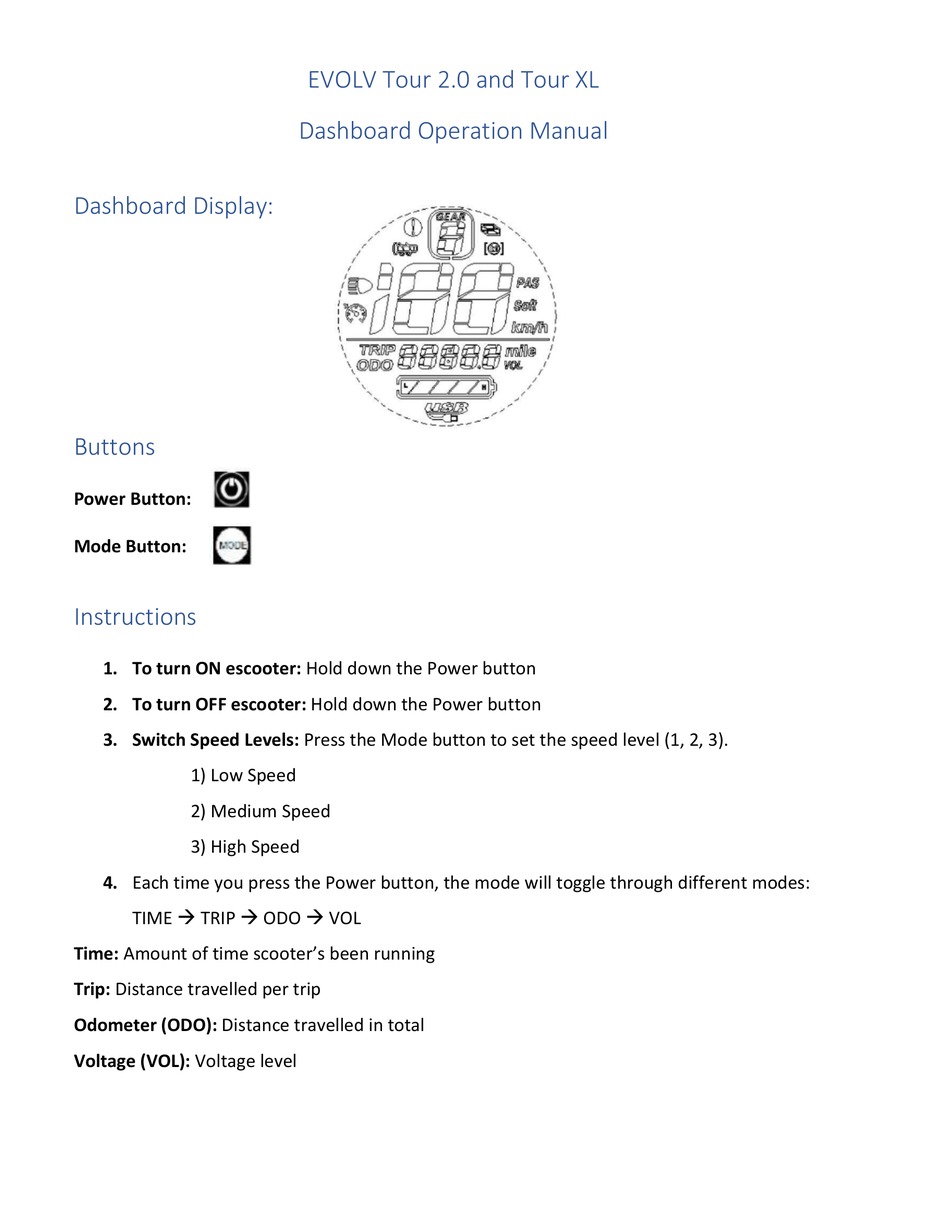

Dashboard Display:

1. To turn ON escooter: Hold down the Power button

2. To turn OFF escooter: Hold down the Power button

3. Switch Speed Levels: Press the Mode button to set the speed level (1, 2, 3).

1) Low Speed

2) Medium Speed

3) High Speed

4. Each time you press the Power button, the mode will toggle through different modes:

TIME à TRIP à ODO à VOL

Time: Amount of time scooter's been running

Trip: Distance travelled per trip

Odometer (ODO): Distance travelled in total

Voltage (VOL): Voltage level

EVOLV Tour 2.0 and Tour XL

Dashboard Operation Manual

Table of Contents

Do you have a question about the Tour 2.0 and is the answer not in the manual?

Page 1 EVOLV Tour 2.0 and Tour XL Dashboard Operation Manual Dashboard Display: Buttons Power Button: Mode Button: Instructions 1. To turn ON escooter: Hold down the Power button 2. To turn OFF escooter: Hold down the Power button 3. Switch Speed Levels: Press the Mode button to set the speed level (1, 2, 3).
Page 2 5. To turn ON deck lights: Hold down Mode button for over 3 seconds. The deck lights are turned ON when the icon is displayed on the screen. To turn OFF deck lights: Hold down Mode button for over 3 seconds. The deck lights are OFF when the icon disappears.
Page 3 Setting Details Page Model Value Description Number Tour 2.0 8.5 inches Motor Wheel Size (inches) Tour XL 10 inches 41.5 Low voltage protection (accuracy 0.5) Motor pole pairs (pair), pole pairs = number of magnetic steel pieces divided by 2...
Page 4 Throttle Error Troubleshoot Brake Sensor Error: Brake sensor triggered. Check if the brake levers and cables are stuck, or if the sensors are faulty. Controller Error: Internal controller may be faulty. Check if it is damaged by water, or overheated. May need replacement. Motor Error: Motor issues.
