BAOJIE BJ-9900 Service Manual

Dual band fm transceiver
Hide thumbs

Advertisement

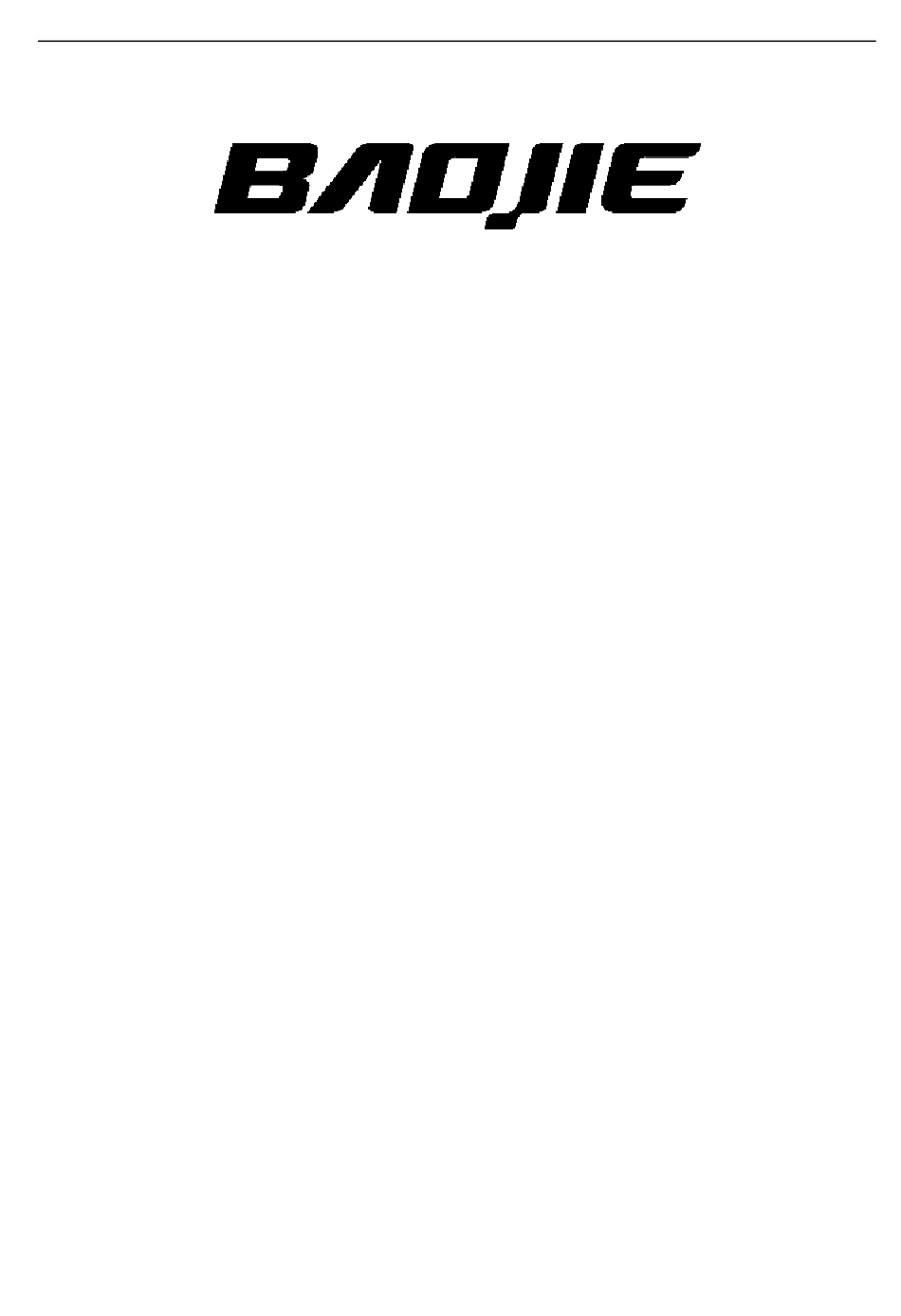

Table of Contents

QUANZHOUBAOJIE ELECTRONICS CO.,LTD.
Dual Band FM Transceiver
SERVICE MANUAL
----------------------CONTENTS--------------------
INTRODUCTION..........................................................................2
PERSONAL SECURITY.................................................................2
CIRCUIT DESCRIPTION................................................................3
BLOCK DIAGRAM.......................................................................13
Board Unit (Schematics, Layouts & Parts)
Display Unit......................................................................14
TX-RX Unit........................................................................21
Panel Unit.........................................................................68
Panel-Sub Unit...................................................................71
VR-L/R Unit.......................................................................73
SPECIFICATION..........................................................................75
Version:BJ-9900-0812-V1
BJ-9900
Model:BJ-9900
Page 1 of 75

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BJ-9900 and is the answer not in the manual?

Questions and answers

Related Manuals for BAOJIE BJ-9900

Summary of Contents for BAOJIE BJ-9900

  • Page 1: Table Of Contents

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Dual Band FM Transceiver BJ-9900 SERVICE MANUAL ----------------------CONTENTS-------------------- INTRODUCTION……………………………………………………….……….2 PERSONAL SECURITY………………………………….….………….…..…2 CIRCUIT DESCRIPTION………………….………………………….………..3 BLOCK DIAGRAM……………………………………………………...…..…13 Board Unit (Schematics, Layouts & Parts) Display Unit……………………….………………..………………….14 TX-RX Unit………………………….…….…………………………….21 Panel Unit……………………………………………………………….68 Panel-Sub Unit…………………………………………………..….….71 VR-L/R Unit……………………………………………………………..73 SPECIFICATION………………………………………………….…………….75 Version:BJ-9900-0812-V1 Page 1 of 75...

  • Page 2: Introduction

    This manual is generally correct and complete, but Baojie will not bears any responsibility for the damages caused by typographical or other errors.If any technical information discrepancies are found , please note that we will be very grateful.

  • Page 3: Circuit Description

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 CIRCUIT DESCRIPTION Receiver signal channel Main band 430MHZ Signal 430MHz signal transmits to Antenna through a high pass filter network, and a low pass filter network switching diode D1029,D1030{}and }D1001, then transmit to Main band RF amplifier Q1001 through another low pass filter network.
  • Page 4 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 38.55MHz main band first IF signal is sent to the crystal filter FL1001 and FL1002. The crystal filter to remove those unwanted mixer products, and then sent to the IF amplifier Q1027 IF IC IC1044. Meanwhile the 13MHz Crystal part X1002 export the triple frequency via Q1042 to generate 39MHz second local oscillator signal and transimit to IF IC1044 where 39MHz second LO and 38.55MHz Main band first LO mixed to be 450KHz Main band...
  • Page 5 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 RF amplifier Q1002 through another low pass filiter network. Amplified 430MHz signal transmits to Tuned vibration variable resistance filter network through the switch D1009,which include D1011.D1012 ,D1013 and related circuit. and then it transmits to the first mixer Q1005.Meanwhile UHF local oscillator signal which comes from UHF-VCO/AQ1123 transmit to the first mixer Q1003 and generate first IF of 49.95MHz Sub-band...
  • Page 6 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 other signal except the useful and then transmit to ceramic discriminator CD1001 via the IF amplifier in IC1047.The ceramic discriminator will remove any Variance in Amplitude in 450KHz IF signal before voice detecting .The ceramic discriminator will remove any Variance in Amplitude in 450KHz IF signal before voice detecting .
  • Page 7 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Sub-band when there is not receivable carrier signal in sub-band , the output nosies for the IC1047 detector will be amplified while the band pass will be filtered by the IC1047''s noises amplified part. The generated direct voltage will be transferred to of Main CPU IC1107 pin28 which will compare the squelch standard level with the settable squelch level in the front panel which can setted through SQL key.
  • Page 8 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Amplified transmitting signal reaching Q1132 transmit to diode switch D1107 through the diode switch D1106 and drive amplifier, and finally be amplified by power amplifier Q1135 to generate more than 35W output power .These three steps are controlled by auto power control circuit.
  • Page 9 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 430 MHz signal Part of the output of the power amplifier corrected by the D1121 and D1122,Then sent to the APC Automatic Power Control IC1129.As a DC voltage, APC Automatic Power Control of the power amplifier output level is proportional to.
  • Page 10 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 then launch "PTT" command to the main CPU IC1104. When the "PTT" command is received, the main CPU IC1104 pin 45 to the "high" position, then activates the UHF transmitter switch Q1096. When the Q1096's UHF transmitter switch is activated, it controls the antenna switching diode D1118, D1119, D1120, modulation switching diode Q1114, Q1115, diode switch D1099, D1101, D1106, D1107, and APC automatic power switch Q1130, Q1131.
  • Page 11 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 phase comparator. Come to the VHF-VCO / B Q1120 part of the output buffer amplifier Q1121 and through diode switch D1087, sent to the PLL IC1109 programmable divider. Here it is according to the main CPU IC1104 related to the frequency division data is divided and sent to the phase comparator.
  • Page 12 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 in the reference divider is separated to form 5 kHz or 6.25 kHz reference frequency compared these baseline frequency will be utilized by the phase comparator. . IC1112 phase comparator circuit of the voltage controlled oscillator and the oscillation frequency of the frequency of the phase comparison between the frequency comparison.

  • Page 13: Block Diagram

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 BLOCK DIAGRAM TX-RX UNIT FN0001 NOIZE-B SM-B CTR-B FL1001 IF AMP FAN CNTL RF AMP RF AMP RADIO IC FL1002 Q1027 SIGIN Q1076 Radio AF D1004 D1005 Q1003 IF IC PMR D/A IC IC1041 D1008 D1035...

  • Page 14: Display Unit

    QUANZHOUBAOJIE ELECTRONICS CO.,LT Model:BJ-9900 Display Unit Schematics: TP2001 S2001 A-CHSW A-PSW TP2002 TP2003 TP2004 TP2005 D2016 C2001 S2003 S2004 S2006 S2008 S2010 102P R2010 SCN-A V/M-A SCN-B V/M-B TP2010 R2024 TP2013 TP2015 220K S2005 S2007 S2009 S2011 A-CHB R2006 EXIT-A...
  • Page 15 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 DISPLAY UNIT LAYOUTS: Version:BJ-9900-0812-V1 Page 15 of 75...
  • Page 16 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Display unit Parts List: Designators Name Comment C2001 Capacitor 102P C2002 Capacitor 102P C2003 Capacitor 102P C2004 Capacitor 102P C2005 Capacitor 102P C2006 Capacitor 102P C2007 Capacitor 102P C2008 Capacitor 102P C2009 Capacitor 102P C2010 Capacitor...
  • Page 17 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 CR2001 Crystal 14.7456MHz D2001 LCD BACKLIT D2002 White D2003 Diode HZM27WA D2004 Diode HZM27WA D2005 White D2006 White D2007 White D2008 White D2009 White D2010 White D2011 White D2012 White D2013 White D2014 White D2015 White...
  • Page 18 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R2009 Resistor R2010 Resistor R2011 Resistor R2012 Resistor R2013 Resistor R2014 Resistor R2015 Resistor R2016 Resistor R2017 Resistor 100K R2018 Resistor 100K R2019 Resistor 100K R2020 Resistor 100K R2021 Resistor 100K R2022 Resistor 100K R2023 Resistor...
  • Page 19 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R2047 Resistor R2048 Resistor R2049 Resistor R2050 Resistor R2051 Resistor R2052 Resistor R2053 Resistor R2054 Resistor R2055 Resistor R2056 Resistor R2057 Resistor R2058 Resistor R2059 Resistor R2060 Resistor R2061 Resistor R2062 Resistor R2063 Resistor R2064 Resistor...
  • Page 20 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R2088 Resistor 220R R2089 Resistor R2090 Resistor R2091 Resistor R2092 Resistor 220R R2093 Resistor 220R R2094 Resistor 220R R2095 Resistor R2096 Resistor R2097 Resistor R2098 Resistor S2001 Encoder S2002 Encoder S2003 Switch KEY S2004 Switch KEY...

  • Page 21: Tx-Rx Unit

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 TX-RX Unit & Panel Unit Schematics: FL1005 TP1019 TP1020 C1299 L1123 RXB UHF D1002 C1012 C1022 [+13.4dBu] Q1003 38.55M Hz Q1027 C1208 L1005 C1025 L1009 L1056 R1140 R1143 R1004 C1017 C1018 C1023 R1135 R1136 L1137 220R...
  • Page 22 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 TX-RX UNIT LAYOUTS: Version:BJ-9900-0812-V1 Page 22 of 75...
  • Page 23 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 TX-RX UNIT LAYOUTS: Version:BJ-9900-0812-V1 Page 23 of 75...
  • Page 24 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 TX-RX UNIT Parts List: Designators Name Comment C1001 Capacitor C1002 Capacitor C1004 Capacitor 102P C1006 Capacitor 102P C1007 Capacitor 102P C1008 Capacitor 102P C1010 Capacitor 102P C1011 Capacitor 102P C1012 Capacitor C1013 Capacitor 102P C1014 Capacitor...
  • Page 25 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1041 Capacitor 102P C1042 Capacitor 102P C1043 Capacitor 102P C1044 Capacitor C1045 Capacitor C1046 Capacitor C1047 Capacitor C1048 Capacitor C1049 Capacitor C1050 Capacitor C1051 Capacitor C1052 Capacitor C1054 Capacitor C1055 Capacitor 103P C1056 Capacitor C1057 Capacitor...
  • Page 26 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1082 Capacitor 104P C1083 Capacitor 102P C1086 Capacitor 102P C1087 Capacitor 102P C1088 Capacitor C1089 Capacitor C1090 Capacitor C1091 Capacitor C1092 Capacitor C1093 Capacitor C1094 Capacitor 0P75 C1095 Capacitor C1096 Capacitor C1097 Capacitor C1098 Capacitor C1099...
  • Page 27 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1122 Capacitor C1123 Capacitor C1124 Capacitor C1125 Capacitor 103P C1126 Capacitor 102P C1127 Capacitor C1128 Capacitor 102P C1129 Capacitor 102P C1131 Capacitor C1132 Capacitor C1134 Capacitor C1135 Capacitor 102P C1136 Capacitor 102P C1137 Capacitor 102P C1138...
  • Page 28 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1167 Capacitor C1168 Capacitor C1169 Capacitor C1170 Capacitor C1171 Capacitor C1172 Capacitor C1173 Capacitor C1174 Capacitor 102P C1175 Capacitor C1176 Capacitor C1178 Capacitor C1179 Capacitor 102P C1181 Capacitor C1182 Capacitor C1183 Capacitor C1184 Capacitor C1185 Capacitor...
  • Page 29 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1211 Capacitor 103P C1212 Capacitor 104P C1213 Capacitor 104P C1214 Capacitor 102P C1215 Capacitor 103P C1216 Capacitor 103P C1217 Capacitor 102P C1218 Capacitor 103P C1219 Capacitor 102P C1220 Capacitor 102P C1221 Capacitor 223P C1222 Capacitor C1223...
  • Page 30 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1251 Capacitor 104P C1252 Capacitor C1254 Capacitor 103P C1255 Capacitor 103P C1256 Capacitor 104P C1257 Capacitor 10UF C1259 Capacitor 102P C1260 Capacitor 102P C1261 Capacitor 473P C1262 Capacitor 220P C1263 Capacitor 470P C1264 Capacitor 470P C1265...
  • Page 31 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1293 Capacitor 102P C1295 Capacitor 102P C1298 Capacitor 102P C1300 Capacitor 102P C1301 Capacitor.TAN 10UF C1303 Capacitor 100P C1310 Capacitor 103P C1311 Capacitor C1312 Capacitor C1313 Capacitor 100P C1314 Capacitor 104P C1315 Capacitor 104P C1316 Capacitor...
  • Page 32 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1350 E.Capacitor 100UF/16V C1353 E.Capacitor 220UF/16V C1354 Capacitor 102P C1355 Capacitor 104P C1356 Capacitor 104P C1357 Capacitor C1358 Resistor C1359 Capacitor C1360 Capacitor C1361 Capacitor.TAN 22UF C1363 Capacitor 104P C1364 Capacitor 104P C1365 Capacitor 102P C1366 Capacitor.TAN...
  • Page 33 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1395 Capacitor.TAN 22UF/16V C1396 Capacitor 102P C1400 Capacitor.TAN 10UF C1401 Capacitor 102P C1403 Capacitor 223P C1404 E.Capacitor 2200UF/16V C1405 Capacitor 474P C1406 Capacitor 100P C1407 Capacitor 104P C1408 Capacitor 102P C1409 Capacitor 10UF C1411 Capacitor 104P...
  • Page 34 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1449 Capacitor C1450 Capacitor C1451 Capacitor 103P C1452 Capacitor C1453 Capacitor C1454 Capacitor 105P C1455 Capacitor 105P C1456 Capacitor 103P C1457 Capacitor 473P C1458 Capacitor.TAN 10UF C1459 Capacitor 102P C1460 Capacitor C1461 Capacitor 103P C1462 Capacitor...
  • Page 35 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1491 Capacitor C1492 Capacitor 104P C1493 Capacitor 104P C1495 Capacitor.TAN 10UF C1496 Capacitor 104P C1497 Capacitor 102P C1499 Capacitor 102P C1500 Capacitor 102P C1501 Capacitor 102P C1502 Capacitor 102P C1503 Capacitor C1504 Capacitor C1505 Capacitor C1506...
  • Page 36 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1531 Capacitor C1532 Capacitor 102P C1533 Capacitor 102P C1534 Capacitor C1535 Capacitor 102P C1536 Capacitor 102P C1537 Capacitor C1538 Capacitor C1540 Capacitor C1541 Capacitor C1542 Capacitor 102P C1543 Capacitor 102P C1544 Capacitor C1545 Capacitor 102P C1546...
  • Page 37 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1572 Capacitor C1573 Capacitor 102P C1574 Capacitor 104P C1575 Capacitor 102P C1576 Capacitor 102P C1577 Capacitor 104P C1578 Capacitor 102P C1579 Capacitor 104P C1580 Capacitor 102P C1581 Capacitor 474P C1582 Capacitor 102P C1583 Capacitor 223P C1584...
  • Page 38 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1611 Capacitor 102P C1613 Capacitor 102P C1614 Capacitor 102P C1615 Capacitor 102P C1617 Capacitor 5P/200V C1618 Capacitor 56P/500V C1619 Capacitor 56P/500V C1620 Capacitor 27P/200V C1621 Capacitor 27P/200V C1623 Capacitor 220P/200V C1624 Capacitor 220P/200V C1625 Capacitor 0P5/P...
  • Page 39 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1652 Capacitor 12P/500V C1653 Capacitor 100P/Q C1654 Capacitor 100P/Q C1657 Capacitor 0P5/P C1658 Capacitor C1659 Capacitor 102P C1660 Capacitor 6P/200V C1661 Capacitor 3P/200V C1662 Capacitor 6P/200V C1663 Capacitor 0P5/P C1664 Capacitor 102P C1665 Capacitor C1666 Capacitor...
  • Page 40 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 C1726 Capacitor 475P C1732 Capacitor C1733 Capacitor 270P C1734 Capacitor 390P C1736 Capacitor 102P C1738 Capacitor C1740 Capacitor 104P C1741 Capacitor 104P CD1001 CDBM450C24 CD1002 CDBM450C24 CF1001 CFWM450E CF1002 CFWM450G CF1003 CFWM450E CF1004 CFWM450G CR1010 Crystal 32.768KHz...
  • Page 41 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 D1026 Diode Varactor D1027 Diode Varactor D1028 Diode Varactor D1029 Diode Switching diode D1030 Diode Switching diode D1031 Diode Composite diode D1032 Diode Varactor D1033 Diode Varactor D1034 Diode Varactor D1035 Diode Composite diode D1036 Diode...
  • Page 42 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 D1084 Diode Varactor D1085 Diode Varactor D1086 Diode HSC277 D1087 Diode HSC277 D1088 Diode Composite diode D1089 Diode HSC277 D1090 Diode Varactor D1091 Diode Varactor D1092 Diode HSC277 D1093 Diode HSC277 D1094 Diode Varactor D1095 Diode...
  • Page 43 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 D1122 Diode Rectifier diode D1123 Diode RCCA-301Q43UA FB1001 Inductor Ferrite bead FB1002 Inductor Ferrite bead FB1003 Inductor Ferrite bead FL1001 38.55MHz FL1002 38.55MHz FL1003 49.95MHz FL1004 49.95MHz IC1041 FM Radio tuner IC1044 IF processor IC IC1047...
  • Page 44 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 L1001 Inductor Wire wound L1002 Inductor Wire wound L1003 Inductor Wire wound L1004 Inductor Wire wound L1005 Inductor Ceramic L1006 Inductor Ceramic L1007 Inductor Wire wound L1008 Inductor Air-Core Coil L1009 Inductor Air-Core Coil L1010 Inductor...
  • Page 45 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 L1039 Inductor Ceramic L1040 Inductor Ceramic L1041 Inductor Ceramic L1042 Inductor Ceramic L1043 Inductor Ceramic L1044 Inductor Ceramic L1045 Inductor Ceramic L1046 Inductor Ceramic L1047 Inductor Ceramic L1048 Inductor Ceramic L1049 Inductor Ceramic L1050 Inductor Ceramic...
  • Page 46 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 L1079 Inductor Air-Core Coil L1080 Inductor Ceramic L1081 Inductor Ceramic L1082 Inductor CI1UH L1083 Inductor Wire wound L1084 Inductor Ceramic L1085 Inductor CH150NH L1086 Inductor CI1UH L1087 Inductor Ceramic L1088 Inductor Ceramic L1089 Inductor Wire wound...
  • Page 47 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 L1117 Inductor Air-Core Coil L1118 Inductor Air-Core Coil L1119 Inductor Air-Core Coil L1120 Inductor Air-Core Coil L1121 Inductor Air-Core Coil L1122 Inductor Ceramic L1124 Inductor CI390NH L1125 Inductor Ceramic L1126 Inductor CI1UH L1127 Inductor CI1UH L1128...
  • Page 48 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Q1027 Transistor NPN transistor Q1029 Transistor NPN transistor Q1030 Transistor NPN transistor Q1031 Transistor NPN transistor Q1032 Transistor NPN transistor Q1033 Transistor NPN transistor Q1035 Transistor NPN transistor Q1036 Transistor NPN transistor Q1037 Transistor NPN transistor...
  • Page 49 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Q1092 Transistor Composite transistor Q1093 Transistor Composite transistor Q1094 Transistor Bias resistor transistor Q1096 Transistor Composite transistor Q1097 Transistor Bias resistor transistor Q1098 Transistor NPN transistor Q1099 Transistor NPN transistor Q1100 Transistor Composite transistor Q1101 Transistor...
  • Page 50 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Q1132 Transistor N-MOSFET Q1133 Transistor NPN transistor Q1134 Transistor Drive transistor Q1135 Transistor Final transistor R1001 Resistor R1002 Resistor 100K R1003 Resistor 100R R1004 Resistor R1005 Resistor R1006 Resistor 100R R1007 Resistor 100K R1008 Resistor 100K...
  • Page 51 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1037 Resistor 100K R1038 Resistor 100K R1039 Resistor R1040 Resistor 220K R1041 Resistor 150R R1042 Resistor R1045 Resistor R1046 Resistor R1047 Resistor 100R R1048 Resistor R1049 Resistor R1050 Resistor R1051 Resistor R1052 Resistor R1053 Resistor 220K...
  • Page 52 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1081 Resistor 220K R1082 Resistor R1083 Resistor 120K R1084 Resistor R1085 Resistor 220K R1086 Resistor 150R R1087 Resistor 470R R1088 Resistor R1089 Resistor R1090 Resistor R1091 Resistor R1092 Resistor R1093 Resistor R1094 Resistor R1095 Resistor R1096...
  • Page 53 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1121 Resistor 100R R1122 Resistor 100R R1123 Resistor R1124 Resistor 100R R1125 Resistor R1126 Resistor R1127 Resistor R1128 Resistor 100R R1129 Resistor R1130 Resistor R1131 Resistor R1132 Resistor R1133 Resistor R1134 Resistor 100R R1135 Resistor R1136...
  • Page 54 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1160 Resistor 470R R1161 Resistor R1162 Resistor R1163 Resistor R1164 Resistor 100K R1166 Resistor R1167 Resistor 100R R1168 Resistor 100R R1169 Resistor 560R R1170 Resistor 330K R1171 Resistor R1172 Resistor R1173 Resistor 220R R1174 Resistor 470R...
  • Page 55 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1200 Resistor 120K R1202 Resistor 100K R1203 Resistor R1204 Resistor 100K R1205 Resistor R1206 Resistor R1207 Resistor 100K R1208 Resistor R1209 Resistor R1210 Resistor 100K R1211 Resistor R1212 Resistor 100K R1213 Resistor 330K R1214 Resistor R1215...
  • Page 56 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1240 Resistor R1241 Resistor R1242 Resistor R1243 Resistor R1244 Resistor R1245 Resistor R1246 Resistor R1247 Resistor R1248 Resistor R1249 Resistor R1250 Resistor 330K R1251 Resistor 100K R1252 Resistor 470R R1253 Resistor R1254 Resistor R1255 Resistor R1263...
  • Page 57 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1293 Resistor 390K R1294 Resistor R1295 Resistor R1297 Resistor 220K R1298 Resistor R1299 Resistor R1300 Resistor 220K R1301 Resistor R1302 Resistor R1304 Resistor R1305 Resistor 223P R1306 Resistor 270R R1307 Resistor 270R R1308 Resistor 270R R1309...
  • Page 58 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1333 Resistor R1334 Resistor R1335 Resistor R1336 Resistor R1337 Resistor R1338 Resistor R1339 Resistor R1340 Resistor R1341 Resistor R1342 Resistor R1343 Resistor R1344 Resistor R1345 Resistor R1346 Resistor R1347 Resistor 220R R1348 Resistor R1349 Resistor R1350...
  • Page 59 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1371 Resistor R1372 Resistor 220R R1373 Resistor 220R R1374 Resistor 220R R1375 Resistor 220R R1376 Resistor R1377 Resistor R1378 Resistor R1379 Resistor 470K R1381 Resistor R1382 Resistor R1383 Resistor R1385 Resistor R1386 Resistor R1388 Resistor R1389...
  • Page 60 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1424 Resistor R1425 Resistor R1426 Resistor R1427 Resistor R1428 Resistor R1429 Resistor R1430 Resistor R1431 Resistor R1432 Resistor R1433 Resistor R1434 Resistor R1435 Resistor R1436 Resistor R1437 Resistor R1438 Resistor R1439 Resistor R1440 Resistor R1441 Resistor...
  • Page 61 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1462 Resistor R1463 Resistor 100K 1% R1464 Resistor 100K 1% R1465 Resistor 100K 1% R1466 Resistor 2K2 1% R1467 Resistor R1468 Resistor R1469 Resistor R1470 Resistor R1471 Resistor R1472 Resistor R1473 Resistor R1474 Resistor R1475 Resistor...
  • Page 62 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1500 Resistor R1501 Resistor R1502 Resistor 100K R1503 Resistor 680K R1504 Resistor 100R R1505 Resistor 220K R1506 Resistor R1507 Resistor R1508 Resistor R1509 Resistor R1510 Resistor 100R R1511 Resistor 470K R1512 Resistor 120K R1513 Resistor R1514...
  • Page 63 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1546 Resistor R1547 Resistor R1548 Resistor R1549 Resistor R1550 Resistor 100K R1551 Resistor R1552 Resistor R1553 Resistor 100K R1554 Resistor 220K R1555 Resistor 180R R1556 Resistor R1557 Resistor R1558 Resistor R1559 Resistor R1560 Resistor 470R R1561...
  • Page 64 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1584 Resistor R1585 Resistor 680R R1586 Resistor R1587 Resistor 470R R1588 Resistor R1589 Resistor 100K R1590 Resistor R1591 Resistor R1592 Resistor R1593 Resistor R1594 Resistor 220R R1595 Resistor R1596 Resistor R1597 Resistor 100R R1598 Resistor 220R...
  • Page 65 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1623 Resistor 220R R1624 Resistor 220R R1625 Resistor R1626 Resistor R1627 Resistor R1628 Resistor 220R R1629 Resistor 470R R1630 Resistor 100R R1631 Resistor R1632 Resistor R1633 Resistor R1634 Resistor 100R R1635 Resistor R1636 Resistor R1637 Resistor...
  • Page 66 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 R1661 Resistor R1662 Resistor 18R 1/2W R1663 Resistor 39R/1W R1664 Resistor R1665 Resistor R1666 Resistor R1667 Resistor R1668 Resistor R1672 Resistor R1673 Resistor R1677 Resistor R1678 Resistor R1679 Resistor R1680 Resistor 220R R1681 Resistor 100R R1682...
  • Page 67 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 T1012 Transistor Bias resistor transistor T1013 Transistor Bias resistor transistor T1014 Transistor Bias resistor transistor T1015 Transistor Bias resistor transistor T1016 Transistor Bias resistor transistor T1017 Transistor Bias resistor transistor T1018 Transistor Bias resistor transistor T1019...

  • Page 68: Panel Unit

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Panel Unit Layouts: Panel Unit Parts List: Designators Name Comment Capacitor 102P C1292 Capacitor 102P C1294 Capacitor 102P C1297 Capacitor 100P C1304 Capacitor 100P C1307 Capacitor 102P C1322 Capacitor 102P C1333 Capacitor 105P C1362 Capacitor 102P C1376 Capacitor TAN.
  • Page 69 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Capacitor C1728 Capacitor 100P C1731 Capacitor 105P C1735 Capacitor TAN. 10uF C1742 Capacitor 103P C1744 Capacitor 103P C1746 Capacitor 104P C1747 Capacitor 470P C1749 Crystal 32.768KHz CR1011 Diode MA2S111 D1124 Diode MA2S111 D1125 Diode 1N4148 D1127...
  • Page 70 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Resistor 100K R1273 Resistor R1397 Resistor 100K R1398 Resistor R1399 Resistor R1401 Resistor 100K R1402 Resistor R1404 Resistor R1405 Resistor R1406 Resistor R1521 Resistor R1536 Resistor R1674 Resistor R1705 Resistor R1706 Resistor R1707 Resistor R1708 Resistor...

  • Page 71: Panel-Sub Unit

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 PANEL-Sub Unit Schematics: C3005 R3002 C3001 150K 470P U3001B R3001 C3006 R3003 C3002 C3003 C3004 R3011 562P 223P 223P 103P C3012 R3010 R3004 R3006 C3011 R3005 R3008 U3001A R3009 100K 102P 100K R3015 R3012 R3013 R3014...
  • Page 72 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Panel-sub unit Parts List: Designators Name Comment C3001 Capacitor 470P C3002 Capacitor 223P C3003 Capacitor 223P C3004 Capacitor 103P C3005 Capacitor C3006 Capacitor 562P C3007 Capacitor 102P C3008 Capacitor 102P C3009 Capacitor 102P C3010 Capacitor 105P...

  • Page 73: Vr-L/R Unit

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 VR-L/R Unit Schematics: VR4001 10KB/10KA/SW VR5001 10KB/10KA/SW R4001 R5001 R4002 R5002 R4006 C4001 C4002 R5006 103P 103P C5002 C5001 103P 103P R4005 R4004 R4003 C4004 C4003 C4005 R5003 R5004 R5005 103P 103P 103P C5005 C5003 C5004...
  • Page 74 QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 VR-L/R UNIT Parts List: Designators Name Comment C4001 Capacitor 103P C4002 Capacitor 103P C4003 Capacitor 103P C4004 Capacitor 103P C4005 Capacitor 103P C5001 Capacitor 103P C5002 Capacitor 103P C5003 Capacitor 103P C5004 Capacitor 103P C5005 Capacitor...

  • Page 75: Specification

    QUANZHOUBAOJIE ELECTRONICS CO.,LTD. Model:BJ-9900 Specification General Specification VHF:136.00 – 174.00MHz(144.00-148.00MHz) Receiving UHF:400.00 – 470.00MHz(430.00-450.00MHz) Frequency VHF:136.00 – 174.00MHz(144.00-148.00MHz) Transmitting Range UHF:400.00 – 470.00MHz(：430.00-450.00MHz) Receiving AM:109.00 - 135.995MHz （Airband) Modulation F3，F2 Antenna 50Ω Impedance Frequency ±2.5ppm @ -10℃ ~ +60℃ stability Working -20℃...
