Summary of Contents for aerl EarthGuard EG-300

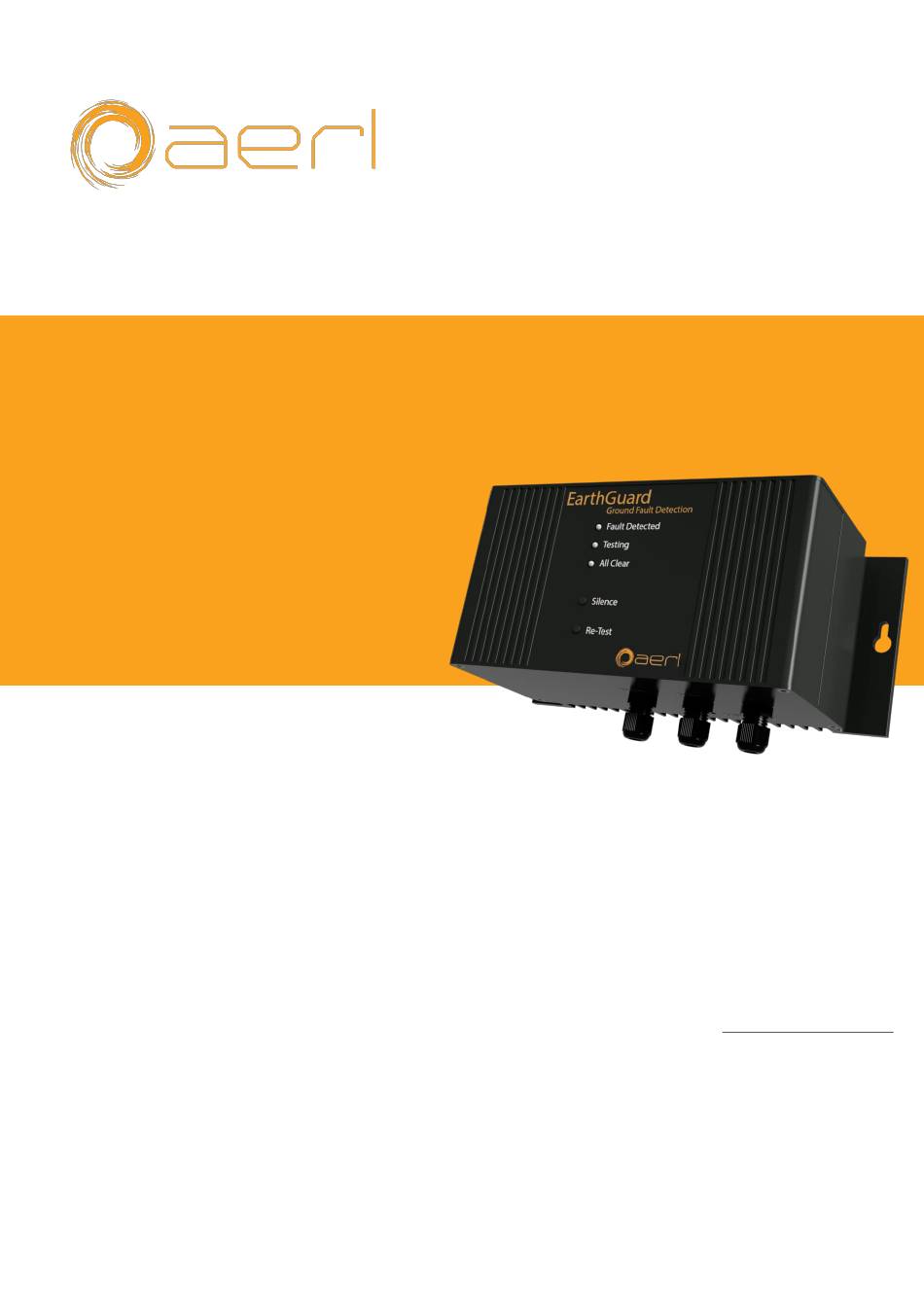

- Page 1 EarthGuard Earth Leakage Detection Installation & Operation Manual Models EG-300...
- Page 2 The “Power Optimizer” would eventually come to be known as the AERL MAXIMIZER™, the world’s first truly Universal Maximum Power Point Tracker (MPPT). Today, AERL manufactures a range of highly reliable and efficient specialised power electronic controllers for use in Solar, Micro Hydro, Micro Wind and Cathodic Protection applications.
-
Page 3: Table Of Contents
Detection Requirements ........................8 Mounting the Device ..........................8 Wiring Information ..........................9 Wire and Disconnect Sizing ......................9 EarthGuard EG-300............................9 Wiring Compartment ........................9 Wiring Diagram ..........................10 Adjusting the Trip Sensitivity ......................11 Alarm Indication Relay ........................11 Operation .............................. - Page 4 AERL will not be held responsible in any way for the mishandling of this product or for installation of the product in a manner that does not follow the instructions in this manual or as advised by an AERL technician.
-
Page 5: Warranty Conditions
The degradation or failure of consumable components (cooling fans and power capacitors reaching end of life) is not covered under this warranty. In the event of the product being out of service, AERL shall bear no responsibility for any consequential loss or expense. AERL will not be held responsible for any misleading or incorrect information conveyed by anyone not directly employed by AERL. -
Page 6: Specifications
USER MANUAL EarthGuard – EG-300 Australian Energy Research Labs AER013 – Rev 1.1 21st July 2020 Specifications General Specifications Typical Parameter 1.2 kg Weight 140 x 230 x 110 mm Dimensions (L x W x H) Indoor Type 1 / IP20 Enclosure Type -25 to 60°C Operating Temperature... -
Page 7: Introduction
This installation and operation manual covers EarthGuard Firmware Revision v1.1. Supported System Components All AERL products have been tested for compatibility with the EarthGuard EG-300 but some third-party products may internally exceed the maximum allowed leakage tolerated by the EarthGuard, causing the device to immediately trigger. -
Page 8: Installation
The EarthGuard should be fixed to a vertical surface using the mounting holes in the chassis flanges. If the device is being used with an AERL CoolMax SRX Solar Charge Controller, the top plate can be removed from the EarthGuard and the device can be mounted seamlessly against the base of the CoolMax. -
Page 9: Wiring Information
Use appropriate Personal Protective Equipment when handling live connections and disconnect all power sources prior to making any wiring configuration changes. EarthGuard EG-300 • The 5V Input (USB-C) and fault monitoring lines are internally fused. The 12V input is not fused and requires an appropriately sized disconnect when not being powered from the CoolMax SRX 12V line (which is fused internally on the SRX side). -
Page 10: Wiring Diagram
USER MANUAL EarthGuard – EG-300 Australian Energy Research Labs AER013 – Rev 1.1 21st July 2020 Wiring Diagram Please refer to Figure 1 below for the recommended wiring configuration. CAUTION – Potential Hazard If the DC+ and DC- sense wires are at risk of mechanical damage in their installed location, appropriately rated in-line fusing is highly recommended due to the potential fault currents available from the connected battery bank. -
Page 11: Adjusting The Trip Sensitivity
USER MANUAL EarthGuard – EG-300 Australian Energy Research Labs AER013 – Rev 1.1 21st July 2020 Adjusting the Trip Sensitivity The EarthGuard device currently has two trip sensitivity levels, each tailored for the respective supported battery voltages (48V & 120V). By default, the EG-300’s are set to 48V, but this can be adjusted to 120V by removing the Jumper Connection located on the central two pins of the CON2 header while the device is powered down. -
Page 12: Operation
CAUTION – Potential Hazard Earth Faults can damage PCE and connected components. Please consult the manufacturer of the PCE in use prior to simulating an Earth Fault. AERL takes no responsibility for any damage caused as a result of the instructions below. - Page 13 21st July 2020 Note: The EarthGuard documentation is being improved regularly. If the relevant situation is not documented, please contact AERL at either support@aerl.com.au or on 07 3129 0330, we are happy to help assist with any queries you may have.
- Page 14 USER MANUAL EarthGuard – EG-300 Australian Energy Research Labs AER013 – Rev 1.1 21st July 2020 Page intentionally left blank. AER013 REV 1.1...
- Page 15 USER MANUAL EarthGuard – EG-300 Australian Energy Research Labs AER013 – Rev 1.1 21st July 2020 Page intentionally left blank. AER013 REV 1.1...
