Sicce Syncra Pump Installation

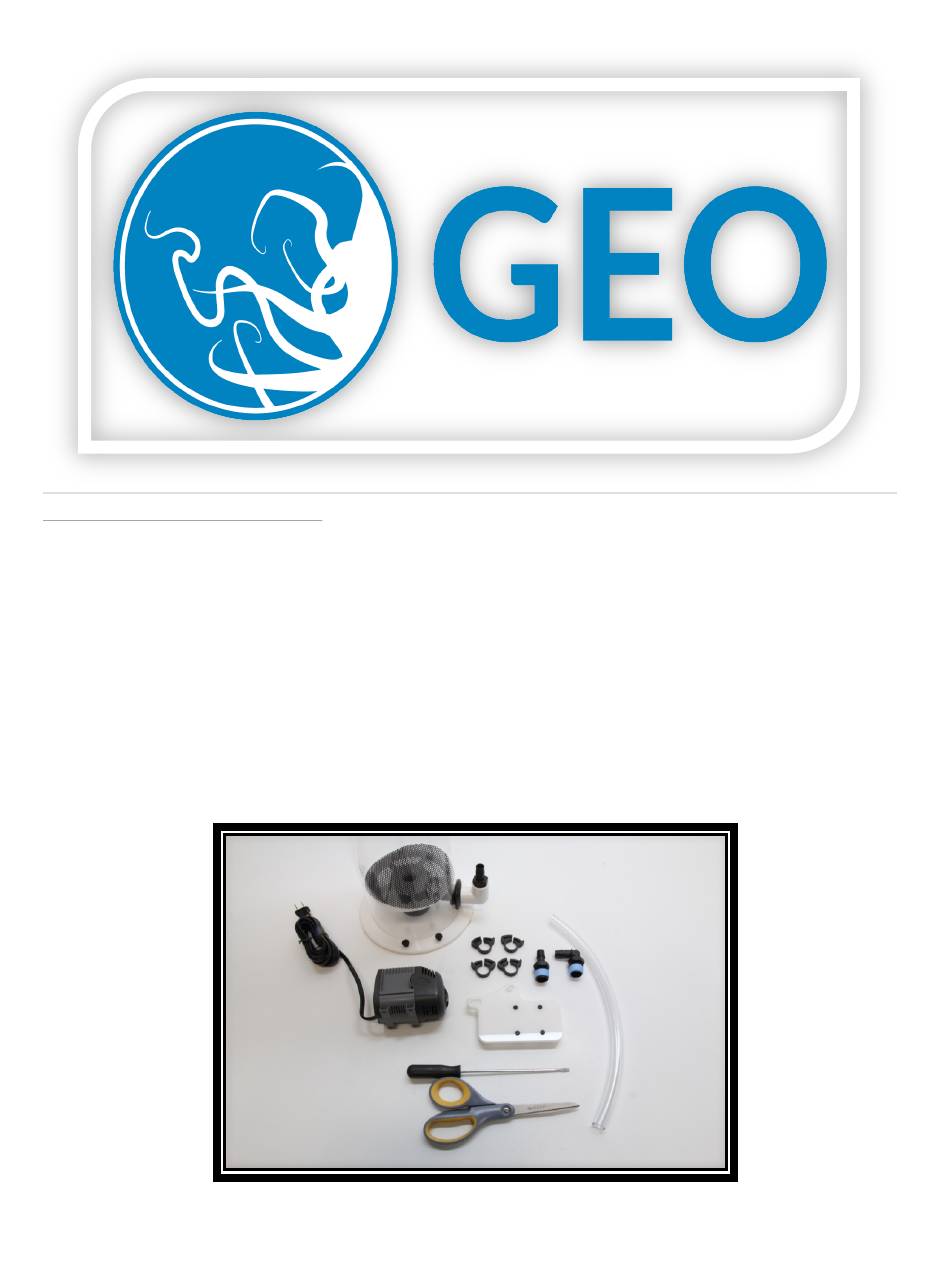

Items needed to install a Sicce Syncra pump to your GEO calcium reactor
1. Sicce pump (supplied with reactor)
2. Pump install kit (supplied with reactor)
3. Scissors or tube cutters
4. Flat head screw driver
5. 8 mm nut driver/socket
6. Thread sealing tape or paste
7. Pliers or strong finger
Advertisement
Table of Contents
Summary of Contents for Geo Sicce Syncra 1.5
- Page 1 Sicce Syncra Pump Installation Items needed to install a Sicce Syncra pump to your GEO calcium reactor 1. Sicce pump (supplied with reactor) 2. Pump install kit (supplied with reactor) 3. Scissors or tube cutters 4. Flat head screw driver 5. 8 mm nut driver/socket 6. Thread sealing tape or paste 7. Pliers or strong finger...
- Page 2 Step 1. not use Remove pump face plate and flow regulator. You will the flow regulator-set it aside. Step 2. Replace face plate ONLY and screw in 90 degree fitting into intake of pump and straight adaptor fitting into output of pump. Make sure thread or sealing paste is applied if not already (some models come with tape applied). Remember if applying tape wrap on clockwise. CAUTION: do not over tighten fittings you will damage pump. A maximum of 4-5 full turns is all that is needed. Geo’s Reef is not responsible for damage to pump during installation.
- Page 3 Step 3. Attach pump to base plate: Remove screws and nuts from base plate. Feed screws through holes at base of pump and guide through base plate holes. Turn over the pump and plate and screw on the four nuts. Use a 8mm nut driver/socket or your fingers to tighten.
- Page 4 Step 4. Now that the pump is mounted to its base plate, position the pump base plate next to the base of reactor and attach with the two flat head screws provided. Use a flathead screw driver to tighten.
- Page 5 Step 5. Install tubing provided to connect the pump intake to the intake manifold. Tube is generally shipped to be cut to fit to ensure proper alignment. Tip: apply a little silicone grease to the barb on the pump intake and then cut it to length. The balance of the tubing will be used to connect the pump output to the barb located at the base of the reactor chamber.
- Page 6 Step 6. Once everything is connected the snap grip tube clamps can be installed. Strong fingers will do the job here; pliers can be used if needed. You are done installing the Sicce Syncra pump.
