Summary of Contents for SPRT SP-Y32
- Page 1 SPRT® Android POS Terminal User’s Manual （SP-Y32） （Ver 1.02） Beijing Spirit Technology Development Co.,Ltd...
-
Page 2: Table Of Contents
Content Brief introduction............................1 Chapter 1 Features and performance.....................1 1.1 Printing Performance..........................1 1.2 Paper Roll..............................1 1.3 Print characters............................2 1.4 Interface Mode............................2 1.5 Print Control Commands........................3 1.6 Power Requirements..........................3 1.7 Working Environment..........................3 1.8 Dimensions.............................. 3 1.9 Model Name............................4 Chapter 2 Operating Instructions......................4 2.1 Printer appearance..........................4 2.2 Install the paper roll..........................5... -
Page 3: Brief Introduction
Brief introduction Y32 smart machine is a type of printer suitable for lottery industry. The main screen is 7-inch LCD screen vertical screen, the auxiliary screen is HDMI 4K HD display interface. The Android system supports mobile, China Unicom, telecommunications three 4G communications network. -
Page 4: Paper Roll
1.2 Paper Roll Thermal Paper Roll: Paper Width ---------- 82.5±0.5mm (Maximum) Outer diameter ---------- Φ120mm (maximum) Φ Inner diameter ---------- Φ13mm (minimum) Thickness ---------- 0.06mm～0.08mm 1.3 print characters ● Western character set: 12 × 24 dots, 1.5 (width) × 3.00 (high) mm ●... - Page 5 ● Camera interface: The 500W camera module interface recognizes one-dimensional and two-dimensional barcodes as follows: 1. One-dimensional code 1D product: UPC-A, UPC-E, EAN-8, EAN-13. 2. One-dimensional code 1D industrial: Code 39, Code 93, Code 128, Codabar, ITF, RSS-14, RSS-Expanded. 3. Two-dimensional code 2D: QR Code, Chinese QR Code, Micro QR Code, Big Data QR, Data Matrix, Aztec (beta), PDF417 (beta).
-
Page 6: Print Control Commands
1.6 Power Requirements Power adapter DC24V ±10%, 2.5A, DC005-2.5 power outlet 1.7 Working Environment ● Operating temperature: 0°C～50°C Operating Relative Humidity: 10%～80% ● Storage temperature: -20°C～60°C Storage Relative Humidity: 10%～90% 1.8 Dimensions 275（L）mm×140（W）mm×150（H）mm 1.9 Model Name Model Interface USB-TypeA、HDMI、USB-TypeB、Ethernet、Cash SP-Y32 Drawer... -
Page 7: Chapter 2 Operating Instructions

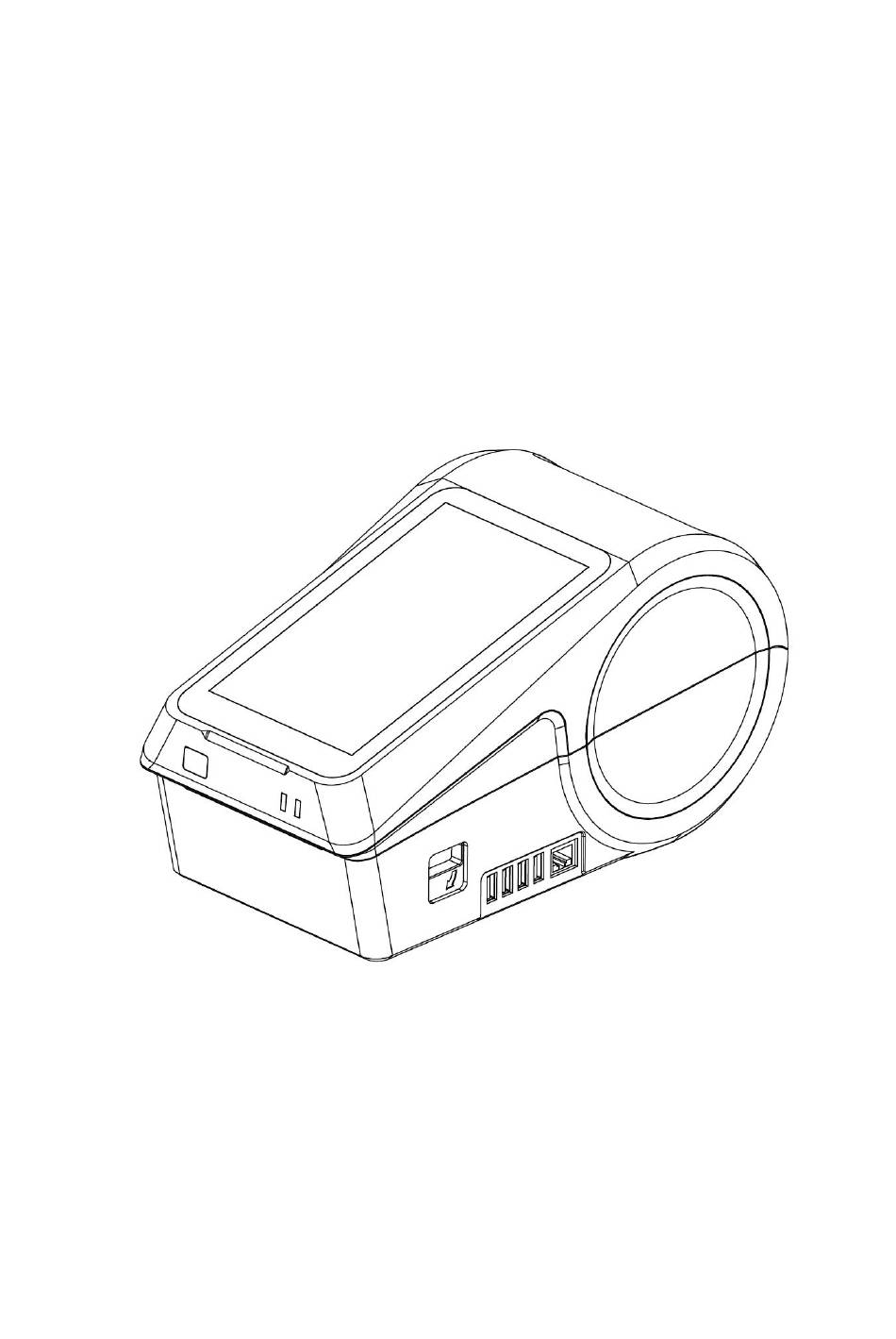

Chapter 2 Operating Instructions 2.1 Printer appearance The names of printer parts are shown in Figure 2-1... -
Page 8: Install The Paper Roll
2.2 Install the paper roll 2.2.1 Install paper roll The SP-Y32 uses 80mm/82.5mm wide thermal paper roll. Thermal paper installation steps are as follows: Press the right cover open button to open the paper cover, put the thermal paper roll into the paper warehouse, pull a section from the paper roll, then put the paper end on the head, cover the paper cover, Gently press down. -
Page 9: Cutter Jamming
2.2.2 Cutter jamming If the cutter is stuck, turn off the power switch, re-power, the cutter can return to its original position. 2.3 Interface connection 2.3.1 USB-TypeA The Y32 supports four USB-TypeA master interfaces. Each pin is defined as shown in Figure 2-2. Function Mark Assignment... -
Page 10: Bluetooth
slave device type (DEVICE); the outline and pin definitions are shown in Figure 2-4: Function Mark Assignment V Bus Power Positive Figure 2-4 USB-TypeB Data - Data Negative Data + Data Positive Power Ground 2.3.4 Bluetooth A handheld device, laptop, or other information terminal with a Bluetooth interface can communicate with the all-in-one through a Bluetooth interface. -
Page 11: Usb Dongle
2.3.6 4G USB DONGLE Y32 can be equipped with CLM920 4G USB DONGLE. After starting up, it will automatically complete network registration and connect to 4G network. Users do not need related operations. Note: The 4G SIM card used by the 4G USB DONGLE guarantees that you can use the local area to access the Internet normally and have sufficient charges. -
Page 12: Indicators, Buzzers, And Key Operation
PIN Assignment: Signal Assignment +24V Ground Figure 2-6 Power Port 2.4 Indicators, Buzzers, and Key Operation The Y32 has a button, a built-in buzzer, a red, yellow, and green three-color status indicator and a power indicator (green). [FEED] is the paper feed key. You can use the print command to enable or disable the key switch function. -
Page 13: Normally Powered On
Error Description ERROR light Blinks Way Unrecoverable LED blinks once: Memory read and write errors Error LED blinks twice: Overvoltage LED blinks three times: Undervoltage LED blinks four times: CPU execution error (error address) LED blinks five times：UIB error LED blinks six times: FLASH writes error LED blinks seven times: Parameters write error LED blinks eight times: temperature detection circuit error... -
Page 14: Self-Testing
2.6 Self-testing The self-test can detect whether the printer is working properly. If the self-test spline can be printed correctly, it means that the printer is normal except for the interface with the host, otherwise it needs to be repaired. The self-tests are printed out in order: manufacturer name, printer model, software version, interface type, default value of printer parameters, 96 characters in ASCII code, default code page content (language setting in English) or Kanji library name ( If the language is set in... -
Page 15: Printer Parameter Settings
2. Hold down the [FEED] key and turn on the power switch. 3, close the paper cover, then print out the following 3 lines: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. Indicates that the printer enters hexadecimal mode. In this mode, all input will be printed as a hexadecimal number. -
Page 16: Appendix A: Parameter Settings
Appendix A: Parameter Settings This appendix is a method to set the printer's default parameters by pressing a key. Setting Description: Use the [Paper Store Cover] key to select the setting item. Each time you press the [Paper Store Cover] key, the setting item changes to the next item, and the current setting value of the item is printed out. - Page 17 FEED Beeper： FEED FEED FEED Error ON ALL ON Cut ON FEED Out of paper and reprint： FEED FEED Black mark: FEED FEED...
