Electrical connections can be made as suggested in the following diagrams and should be carried out by a qualified electrician. When installing an AUTODOS 5000 with free chlorine electrode in swimming pools that have previously been treated with organic chlorine (trichlor or dichlor), the pool water must be changed. This is because the cyanuric acid content in the pool water, caused by the organic chlorine, results in an exceptionally high value of chlorine when DPD1-testing, thus making a correct calibration impossible.
AUTODOS 5000 - 2005-01-21 1.3. Suggested Connections In the example below, connections for the three available regulation alternatives are shown. Eng_Autodos5000.doc ver 3.2 - page 5...

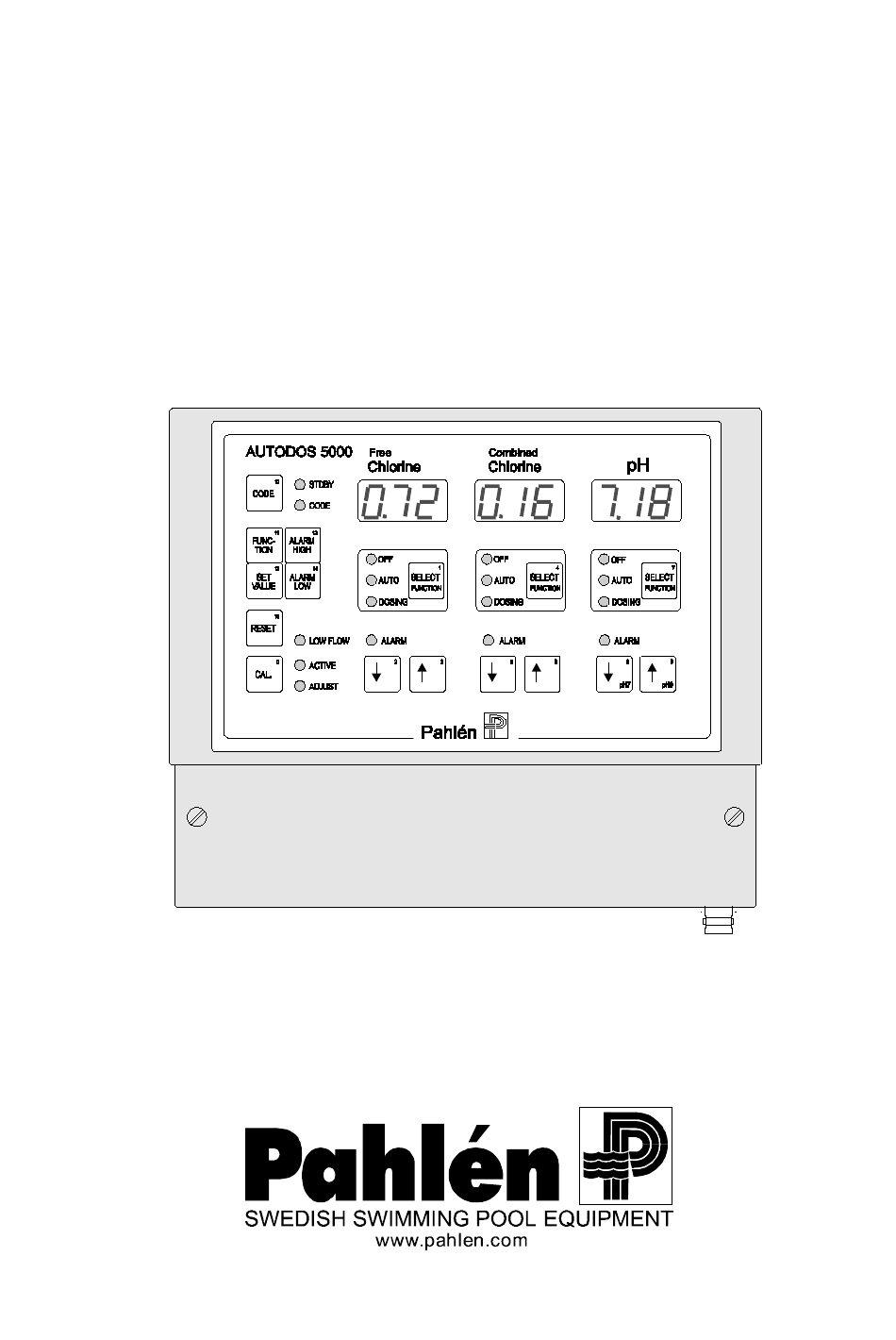

AUTODOS 5000 - 2005-01-21 2. Operation 2.1. Controls and Indicators This is a brief description of all functions and indicators. Refer to the respective sections in this handbook for further information. NORMAL DISPLAYS Normally channel 1 displays free chlorine, channel 2 displays combined chlorine and channel 3 displays pH.
Page 7
AUTODOS 5000 - 2005-01-21 ENTER CODE LEVEL CODE When the button 'CODE' is pressed down, the opening code can be entered by using the buttons ’0’ –’9’, ’RESET’ clears the display. If the entered code is the same as opening code 1, you will enter code level 1and if the entered code is the same as opening code 2, you will enter code level 2 when the button 'CODE' is released.
Page 8
AUTODOS 5000 - 2005-01-21 DOSING MODE SELECTION SELECT When the button ’SELECT FUNCTION’ is pressed, the dosing mode switches between OFF- FUNC. AUTO-OFF-AUTO-OFF-..Dosing can be deselected in set-up mode and if this is the case, nothing happens when you press the button. To get manual dosing , press the buttons 'SELECT FUNCTION' and 'SET VALUE' simultaneously.
Page 9
AUTODOS 5000 - 2005-01-21 LED’s (INDICATORS) FOR DOSING ⊗ Dosing not active ⊗ AUTO Dosing with automatic control ⊗ Dosing active If not 'OFF' and not 'AUTO' then manual dosing is selected and if no dosing takes place, the dosing is deselected in the set-up.
2.3. Start-up Sequence At start-up the AUTODOS 5000 displays the text ' dEL SEC 059, 'dEL SEC 058'..showing the remaining start-up delay in seconds. By pressing the 'RESET' button the start-up sequence may be bypassed. The start-up delay is intended to prevent false alarms due to unstabilised measured values.
AUTODOS 5000 - 2005-01-21 2.4. Description of on/off Dosing Control 2.4.1. Acid/Alkali Dosing (on/off) by pH Control The drawing below illustrates both acid and alkali dosing. AUTODOS 5000 uses acid or alkali dosing (selected in setup-mode). acid dosing...
The examples below uses a maximum pulse frequency of 100 pulses/min. 2.5.1. Acid/Alkali Dosing (frequency) pH Control (P-regulation) The drawing below illustrates both acid and alkali dosing. AUTODOS 5000 uses acid or alkali dosing (selected in setup-mode). max. acid dosing...
AUTODOS 5000 - 2005-01-21 2.6. Description of Frequency Control with PD-regulation PD-regulation is selected when the regulation is frequency controlled and the D-time > 0 seconds (selected in set- up). PD-regulation implies that the frequency is controlled by the difference between the set value and the measured value (P) and also by the speed of change in the difference (D).
AUTODOS 5000 - 2005-01-21 2.8. Alarm High monitored value high alarm limit alarm activated set value A high alarm occurs whenever the monitored value of the appropriate channel exceeds the user determined limit. 2.9. Alarm Low monitored value...
AUTODOS 5000 - 2005-01-21 2.10. Alarm and Flow Fault LED's A fault condition is indicated by a flashing 'ALARM' LED and the common alarm relay is also activated. Note that the alarm relay is called during normal operation and is released (voltage free) if a fault condition occurs. After a RESET the alarm relay is always reset (voltage applied) and the 'ALARM' LED is either cleared or goes over to a steady display, depending upon whether or not the fault condition still exists.
AUTODOS 5000 - 2005-01-21 2.13. Set-up It is possible to enter the set-up only if code level 2 is active, and first you must also enter calibration mode. If you try entering calibration mode without first enter code level 2, the display shows ’Cd-’.
AUTODOS 5000 - 2005-01-21 2.13.4. Common Set-up You have pressed the buttons FUNCTION + RESET and entered the set-up common for all channels, indicated by the text ’SEt UP’ and steady lit LED’s ’OFF’ and ’AUTO’. To exit the set-up, press ’CAL’ or step out from the last row.
AUTODOS 5000 - 2005-01-21 2.13.6. Channel Specific Set-up (Combined Chlorine) Press the buttons ’SET VALUE’ + ’SELECT FUNCTION’ for the combined chlorine channel and you will enter the combined chlorine channel set-up, indicated by the text ’SEt CCL’ and flashing LED’s ’OFF’ and ’AUTO’ on the combined chlorine channel.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1', 'EL2', 'EL3' or 'EL4'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1' or 'EL2'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1' or 'EL2'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1' or 'EL2'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1' or 'EL2'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
Note. If the electrode signal differs significantly from the expected values an electrode fault will be indicated by text display 'EL1' or 'EL2'. The AUTODOS 5000 will continue to use the calibration values from the last successful calibration and the electrode fault will be automatically reset about one second after releasing the calibration button.
AUTODOS 5000 - 2005-01-21 3.2. Maintenance Schedule This is a summary of items that should be carried out, or checked, at the intervals stated. For full details on how to perform calibration and control refer to the previous sections. The intervals below are only examples and may be used as a guideline if you have no local maintenance schedule.
AUTODOS 5000 - 2005-01-21 4. General Description of Pool Water Cleaning AUTODOS 5000 automatically monitors and controls the condition of swimming pool water maintaining the chlorine and pH levels to desirable set values. For effective bacterial control and sanitation of pool water it is essential to maintain the correct level of free chlorine, but free chlorine readily combines with bather contaminants such as perspiration, cosmetics, hair lotions etc.
AUTODOS 5000 - 2005-01-21 4.1. Wanted Regulation Result The figure above is taken from the Swedish 'Naturvårdsverket allmänna råd 88:1, bassängbad - vattenkvalitet och kontroll'. 4.2. pH Regulation As previously stated the pH value of pool water is a measure of its acid/alkaline balance (pH is actually a logarithmic measure of free hydrogen ions).
0.60 mg/l and 1.00 mg/l in bubble pools (dependent upon the pH value). When installation of an AUTODOS 5000 with free chlorine electrode in swimming pools, that have previously been treated with organic chlorine (trichlor or dichlor), the pool water must be changed. This is because the cyanuric acid content in the pool water, caused by the organic chlorine, results in an exceptionally high value of chlorine when DPD no.1-testing, thus making a correct calibration impossible.
AUTODOS 5000 is designed to control swimming pool water conditions. It is equipped with 3 independent channels for monitoring chlorine (free and combined) and pH. AUTODOS 5000 can regulate pH (by acid or alkali dosing) and chlorine levels. Regulation of chlorine is done by lowering the total chlorine level and raising the content of free chlorine.
Page 30
FREQUENCY - MAN. Alarm is activated after dosing for a period longer than the specified maximum dosing time (1-60 minutes). The AUTODOS 5000 is equipped with three current outputs, selectable (in set-up) 0-20 mA or 4-20 mA. Normally the outputs monitor the value for channel 1-3, but can also be set up as regulation signal.
AUTODOS 5000 - 2005-01-21 6. Box (Fibox Cardmaster PC21/18 CFC II) The enclosure has special made cut-outs for Autodos 5000 and the drawing below show these. Eng_Autodos5000.doc ver 3.2 - page 31...
AUTODOS 5000 - 2005-01-21 8. Factory Settings free chlorine combined chlorine Set value 1.00 0.50 7.40 Low alarm limit 0.40 0.00 6.80 High alarm limit 2.00 1.00 7.80 Code Level: No code level from factory. Common Set-up: Text...
Page 34
AUTODOS 5000 - 2005-01-21 Channel Specific Set-up (Combined Chlorine): Text Setting Explanation Dosing type – on-off 0.20 P-band D-time Max. dosing frequency, strokes/min 000 (min) Long dosing time alarm, (no alarm function) 000 (sec) Min. time OFF for relay, (no function (on-off)) 000 (sec) Min.
We reserve for ourself the right to make changes, enhancements, revisions and alterations to the AUTODOS 5000 or its manual without notice. We do not take any responsibility for the consequencies of faults in the AUTODOS 5000 or in its manual.
AUTODOS 5000 - 2005-01-21 13. AUTODOS 5000 PC Interface (optional) With an easily installed optional PCB (Printed Circuit Board) it is possible to connect the AUTODOS 5000 to a PC computer. The AUTODOS 5000 PC Interface parts are: •...
AUTODOS 5000 - 2005-01-21 14. AUTODOS 5000 PLC Interface (optional) With an easily installed optional PCB (Printed Circuit Board) it is possible to connect the AUTODOS 5000 to a PLC. The AUTODOS 5000 PLC Interface parts are: •...
Page 40
AUTODOS 5000 - 2005-01-21 Alarm Active (16 bit) bit 0: Standby mode bit 1: Flow bit 2: High alarm pH bit 3: High alarm Combined chlorine bit 4: High alarm Free chlorine bit 5: Low alarm pH bit 6:...
