JT-DPM-CP
Wireless remote control for DPM power supplies
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you how
to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.

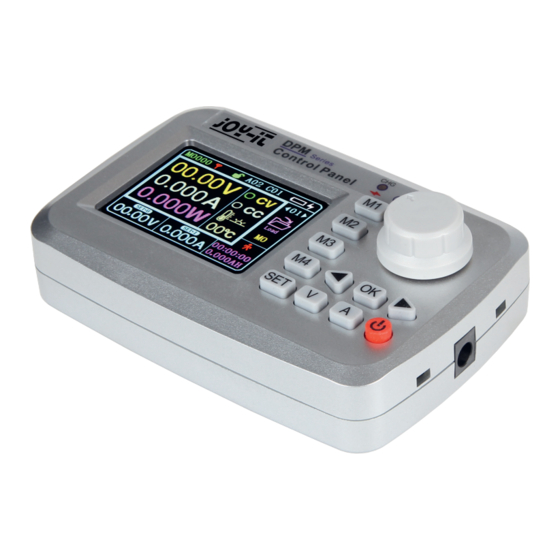

This wireless remote control uses a 2.4 GHz RF-module to send signals to
the power supply and to receive signals from the power supply. Moreover, it
has a range from up to 10 meters. It has a built-in 3.7 V and 2000 mAh lithium
battery which is rechargeable and can be thereby used more than 10 hours
consistently. Additionally, it has a 2.4 inch TFT display with a high
resolution. The settings can be easily and fast adjusted because of the
multi-functional buttons and a knob.
Advertisement
Table of Contents
Summary of Contents for Joy-it JT-DPM-CP
- Page 1 JT-DPM-CP Wireless remote control for DPM power supplies 1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you how to use your product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
- Page 2 2. TECHNICAL SPECIFICATIONS Compatible to DPM8600 serie Wireless transmission Radio frequency 10 m Range (without any obstacles ) Communication 00 - 99 addresses Communication channels 00 - 30 Frequency 2,4 GHz Display mode 2,4“ TFT LCD Battery 3,7 V / 2 A Dimensions 120 ·...
- Page 3 charging socket USB port adresses signal 01-99 strength battery channels status key lock model 01-30 constant voltage indicator constant current output indicator voltage output settings current operating status output power operating time electric charge temperature of the device set voltage current...
- Page 4 3. FUNCTIONS Loads the values from the memory locations Load M1 - M9 Save Saves the values in the memory locations M1 - M9 the electric charge and the operating time. Reset Clear The 99 communication addresses are numbered Address from 01 to 99.
- Page 5 4. SETUP Configurate connection To connect the remote control, you have to open the same channel and the same address with the remote control and with the power supply. Thereby is the number of the channel and address independent. Adjust values of voltage and current To adjust the voltage, press “V“...
- Page 6 SET menu To open the SET menu, press “SET“. There you can find all function like Load, Save etc. which can be selceted. With the knob or with the arrow keys is it possible to select the different modes and with “OK“ you open the menu points and confirm there your adjustments or rather run the different functions.
- Page 7 5. DECLARATION OF CONFORMITY Hereby, Simac Electronics Handel GmbH declares that the radio equipment type JT-DPM-CP is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.simac-gmbh.de/CE/jt-dpm-cp.pdf information on transmission power and frequency band:...
