EN: Installation Sheet

Description

The ATS1821 is an interface between ATS control panels and
stand-alone diallers/transmitters using open collector outputs.
The ATS1821 uses outputs 4 to 11 (outputs 1 to 3 on control
panels are hard-wired to sirens/relays).
Note:
For the outputs to become operational, set the number
of output controllers in the ATS control panel (menu System
Options) to two (2).

Mounting the unit

The ATS1821 must be mounted in the same enclosure as the
control panel and are connected with the cable supplied.

Wiring

To connect the ATS1821 to the ATS control panel, plug the 10-
wire flat cable in J1 of the control panel and CON1 of the
ATS1821.

Outputs

The ATS1821 provides for eight 50 mA open collector outputs
with internal pull-up resistors of 4.7 kΩ. Cards can be fitted to
the ATS control panels or DGP but can not be daisy-chained to
provide multiple outputs
© 2019 UTC Fire & Security Americas Corporation, Inc.

Output wiring

All ATS1821 outputs have a 4.7 kΩ resistor pulled up to the
supply voltage. The outputs have been designed such that
they can be connected directly to stand-alone
diallers/transmitters like the TD84/88, Redcare unit or
(2)
TDI2801. Connect the 0 V to the 0 V of the dialler/transmitter.
Note:
If the dialler/transmitter is not fitted in the same
enclosure, use relay cards like the ATS1810 or ATS1811.

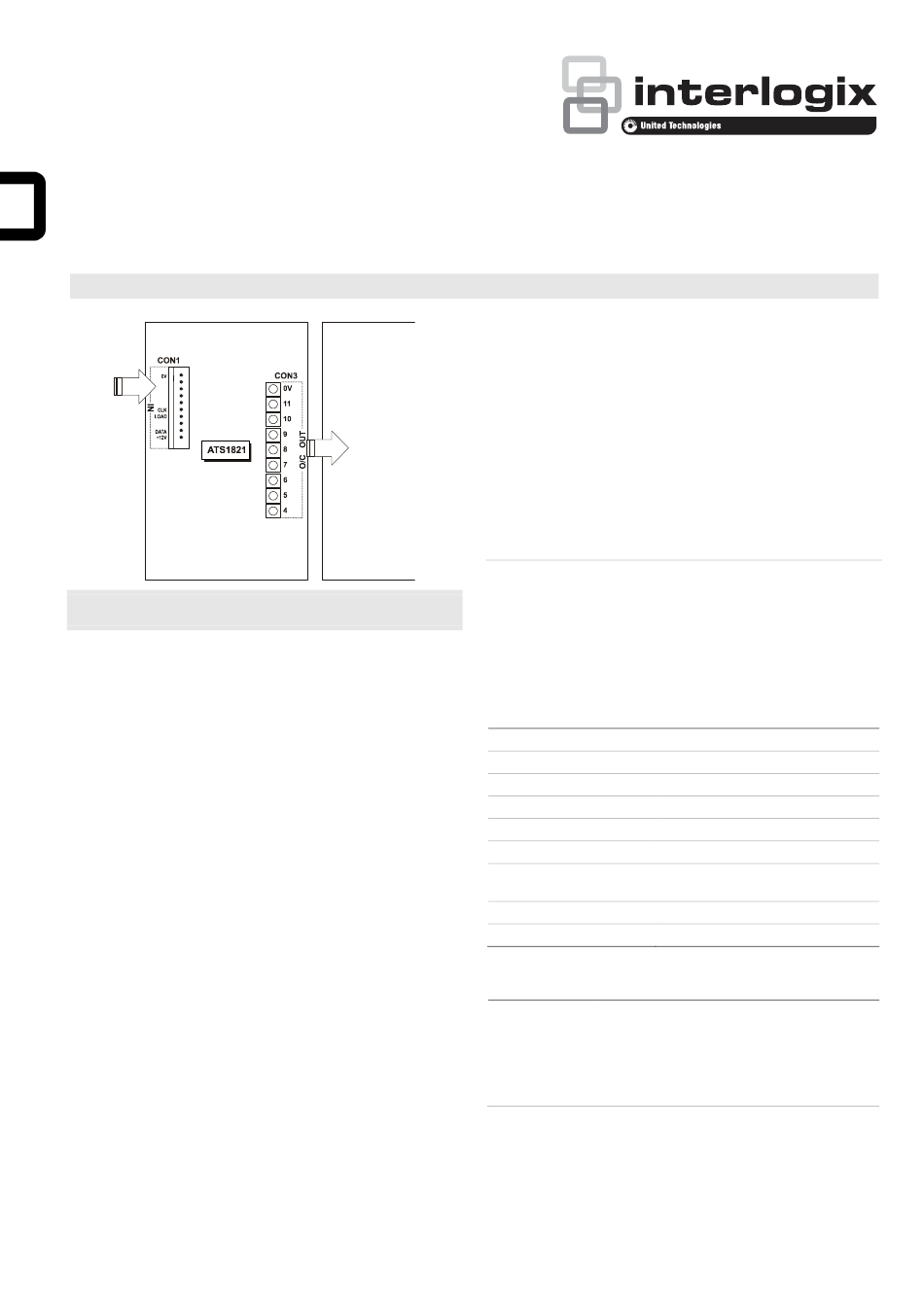

Description of the product

Figure
(1)
(2)

Specifications

Supply voltage
Current consumption
Number of outputs
Type of outputs
Low level outputs
High level outputs
Dimensions (H x W x D)
(size B PCB)
Operating temperature
Relative humidity

Regulatory information

Manufacturer
1 / 4
ATS control panel (J1)
Standalone dialler:
Redcare
TD84xx
TD88xx
TDI2801
9 to 15 V
13 to 42 mA (typical 20 mA)
8
Open collector (50 mA each)
0.0 to 0.8 V
9 to 15 V
50 x 80 x 15 mm
−10 to +55°C
<95% noncondensing
PLACED ON THE MARKET BY:
UTC Fire & Security Americas Corporation, Inc.
3211 Progress Drive, Lincolnton, NC, 28092, USA
AUTHORIZED EU REPRESENTATIVE:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
P/N 1077861 (ML) • REV B • ISS 09JUL19
