- Page 1 ENGLISH User manual Copyright HT ITALIA 2020 Release EN 1.00 - 09/04/2020...
- Page 2 Non-contact forehaed infrared thermometer...
-
Page 3: Table Of Contents
Non-contact forehaed infrared thermometer Table of contents General description ..............Safety informations ..............4 Features .................... 5 General ....................6 Instrument description ............... 7 Display description ................. 7 Description of symbols on the instrument and manual ....8 Technical specifications ..............g Initial calibration ................ -
Page 4: General Description
Non-contact forehaed infrared thermometer General description The Non-Contact Forehead IR Thermometer is specially designed to take the body temperature of person regardless of room temperature. Depending on various skin types and thickness, there may be temperature difference. Safety lnformations •This device must only be used for the purposes described in this instruction manual •This device must only be used in an ambient temperature range between 10°C and 40°C... -
Page 5: Features
Non-contact forehaed infrared thermometer IMPORTANT REMARKS: •Before taking of the temperature make sure to remove hair and perspiration from the forehead • Selecting mode to measure the body temperature; Selecting "Body" "Surface" mode to measure the surface temperature. •Use of this thermometer is not intended as a substitute tor consultation with your physician •... -
Page 6: General
Non-contact forehaed infrared thermometer General Non-Contact Forehead IR Thermometer is designed for body surface and forehead temperature measurement for infants and adults without contact to human body. Non-Contact Forehead IR Thermometer can also be used to measure the temperature of a baby-bottle or bath, or room temperature (by using the Surface Temp function). -
Page 7: Instrument Description

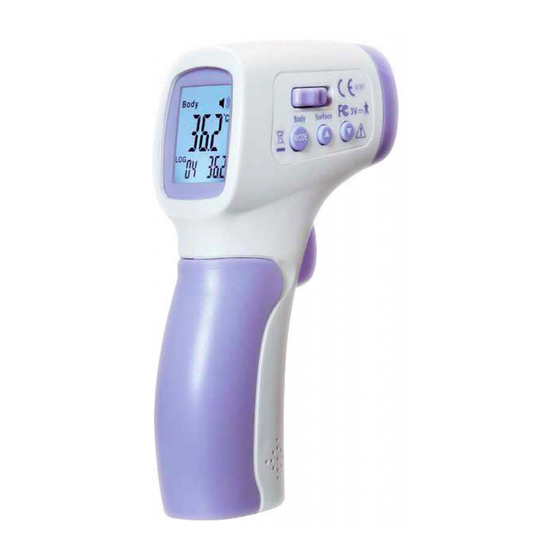

Non-contact forehaed infrared thermometer Instrument description CAPTION 1. IR sensor 2. LCD display 3. Mode selection 4. DOWN key 5. UP key 6. MODE key 7. Measurement Trigger 8. Battery cover 6.Display description CAPTION 1. Surface mode symbol 2. Body mode symbol 3. -
Page 8: Description Of Symbols On The Instrument And Manual
Non-contact forehaed infrared thermometer 7 . Description of symbols on the instrument and manual The device is in accordance with Medicai Device Directive 93/42/ The device is in accordance with FCC Part 15 subpart 2007 /Radio Frequency Devices IC Regulation ICEC- 3V DC power supply Type B equipment In order to protect the environment, please recycle... -
Page 9: Technical Specifications
Non-contact forehaed infrared thermometer Technical Specifications General specifications 0.1°C (0.1°F) Display Resolution 10°C ÷ 40°C (50°F ÷ 104°F) Operating Temperature 0°C ÷ 50°C (32°F ÷ 122°F) Storage Temperature <85%RH Humidity Rate 3V DC (2 x 1.5V type AA IEC LR06) Power supply 4 hours (continue test) Battery life:... -
Page 10: Initial Calibration
Non-contact forehaed infrared thermometer Initial calibration For stable and reliable results, The thermometer provides a user-correction function, the operation of the method is as follows: step take the temperature of a person using a conventional thermometer; you will get 37.5°C (99.5°F) for instance step take the temperature of the same person using the Non- contact Body lnfrared Thermometer keeping the 5 to 15 cm (2 in to 5.9 in) distance between the thermometer and the forehead (Take... -
Page 11: Use Of Instrument
Non-contact forehaed infrared thermometer 10.Use of instrument 10-1. Insert the batteries 10-2. For the first use or when inserting new batteries wait between 10 minutes for the warm-up of the apparatus and when inserting the new batteries) 10-3. lf the device is not used for a long time, once you turn it on again, the device will test the room temperature first and will delay turning on for one or two seconds. -
Page 12: Settings
Non-contact forehaed infrared thermometer 11.Settings 11-1. Unit selection – Function F1 1. Press MODE key for 2 seconds, the screen displays “F1” 2. Press DOWN key for degrees Celsius or UP key for degrees Fahrenheit 11-2. Alarm setup – Function F2 1. - Page 13 Non-contact forehaed infrared thermometer 11-6. Measurement modes The instrument is especially designed to take the body temperature of a human being. For this, use the Body mode. Measurement range for Body mode: 32°C to 42.5°C (86°F to 108°F). You can also use the Non-contact Body lnfrared Thermometer to measure the temperature of an area or an object, a food, a liquid or a room temperature.
-
Page 14: Warnings
Non-contact forehaed infrared thermometer 11-9. Longevity use The Non-contact Body lnfrared Thermometer was conceived for an intense and professional use, its longevity is guaranteed for 40000 takings. 12.Warnings •The protective glass over the lens is the most important and fragile part of the thermometer, please take great care of it. -
Page 15: Troubleshooting
Non-contact forehaed infrared thermometer 14. Troubleshooting lf you happen to have one of the following problems while using the non-contact forehead IR thermometer please refer to this breakdown service guide to help resolve the problem. lf the problem persists please contact our customer service. - Page 16 Non-contact forehaed infrared thermometer List of possible wrong conditions during a measurement Make sure that there is no Temperature reading hampered obstruction prior to taking a by hair, perspiration. temperature. Make sure there is no air flux as Temperature hampered by an air this could interfere with the infrared flux.
-
Page 17: Reference Guidelines
Non-contact forehaed infrared thermometer Reference guidelines The instrument is compliance with the below guidelines:: •EN12470-5 and ASTM E1965-1998 •EN980: Graphical symbols tor use in the labeling of medical devices • EN1041: Information supplied by the manufacturer with medical devices • EN60601-1: Medical electrical equipment Part 1: General requirements tor safety (IEC:60601-1 :1998) - Page 18 Non-contact forehaed infrared thermometer The manufacturer reserves the right to alter the specifications of the product without prior notification The manufacturer allows himself the right to modify without any preliminary opinion the technical specifications of the product.
