Dometic 3108705.272 Replacement Instructions

Gas Valve Kit 3108705.272 Replacement Instructions
For Refrigerator Models:
RM663, RM763, RM1303
RM3500, RM3600, RM3800
RM2602, RM2603, RM2802, RM2803, RM3501,
RM3601, RM3604, RM3801, RM3804, RM4801,
RM4804.2, RM4804.3, RM4804.002, RM4804.004,
RM4804.005, RM4804.006
All field wiring modification should be made in compliance
with the 1990 ANSI/NFPA N.E.C. and 1987 ANSI A119.2
for Recreational Vehicles.
Shut off LP gas at supply source. Failure to fol-
low these instructions could create a fire or ex-
plosion causing death or severe personal injury.
Turn off 115 volt AC. Failure to follow these in-
structions could create a shock hazard causing
death or severe personal injury.

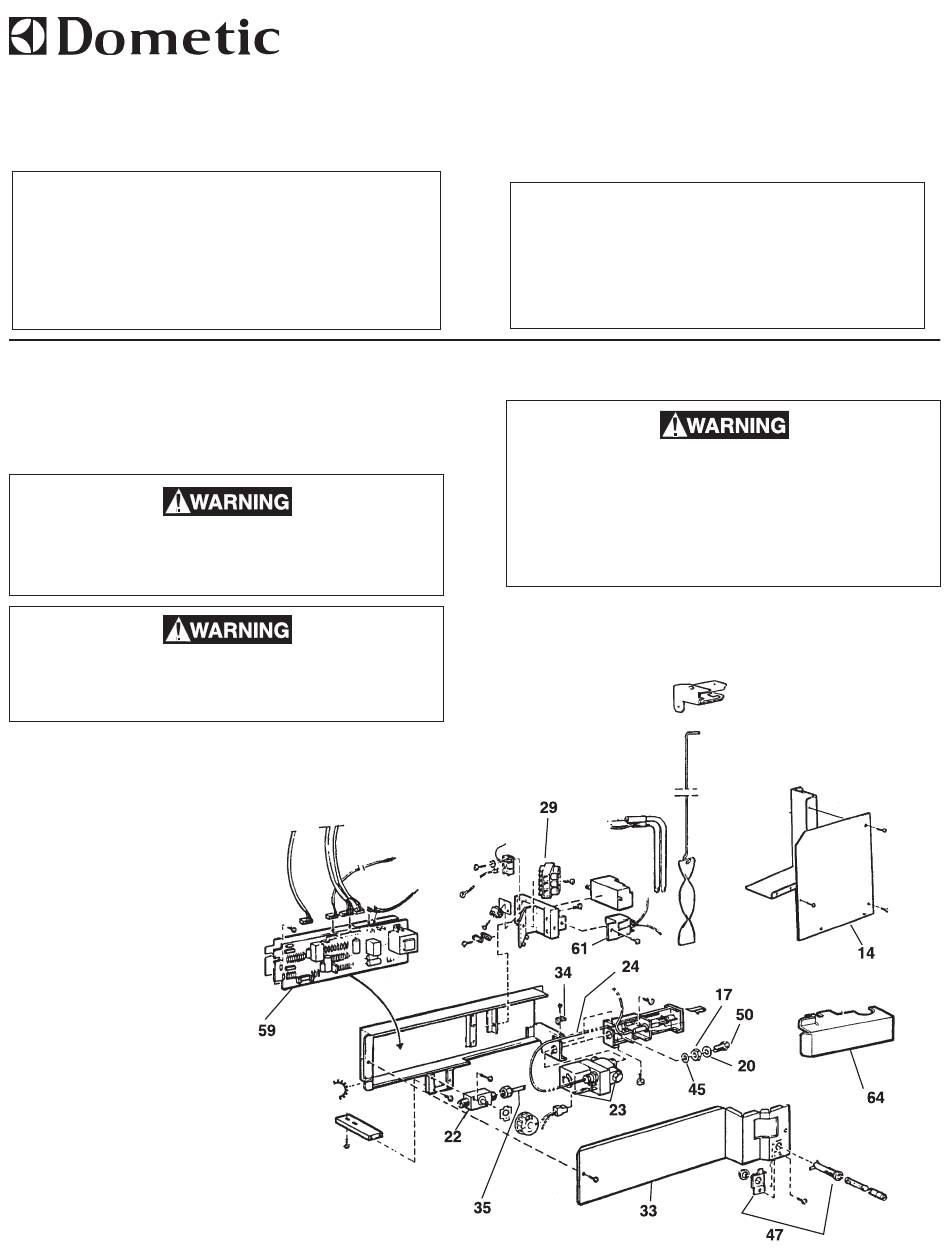

FIG. 1
NOTE: For models
RM663, RM763, and
RM1303, a few parts are
different than shown in
FIG. 1.
REVISION
Form No. 3107685.038 10/00
(Replaces 3107685.020)
©2000 The Dometic Corporation,
LaGrange, IN 46761
®
for Dometic Refrigerators with Weber Gas Valve

INSTALLATION INSTRUCTIONS

This Kit Includes:
(1) 2932615012
(1) 3106375.015
(1) 2931826016
(1) 3108705.298
(1) 3107685.038
These instructions must be read and understood
before installation is performed. Improper modi-
fication of this appliance can be extremely haz-
ardous causing personal injury or property dam-
age. This Kit must be installed by a qualified
service person.
1. Turn refrigerator selector switch to the "OFF" position.
2. Disconnect 12 Volt DC at the refrigerator terminal block.
(See Fig.1, Item 29)
Gas Valve/Solenoid
Circuit Board
Thermocouple
Bracket, Gas Valve
Installation Instructions
