Summary of Contents for Adeunis RF ARF09
- Page 1 RF09 Transmitters & Receivers User Guide...
- Page 2 No part of this document may be reproduced or transmitted (in electronic or paper version, photocopy) without Adeunis RF consent. This document is subject to change without notice. All trademarks mentioned in this guide are the property of their respective owner.
-
Page 3: Table Of Contents
RF09 User Guide Table of contents About this Document ................ 2 Declaration of conformity ..............3 ARF09 AM Transmitter ..............4 Dimensions / Pin assignment ..............4 ARF09 AM Receiver ................5 General use ..................5 Dimensions / Pin assignment ..............5 Specifications ..................7 Standard compliance ................ -
Page 4: About This Document
RF09 User Guide About this Document RF09 AM This guide describes the A devices, their options and accessories. Ref. 06-02-V4-pft... -
Page 5: Declaration Of Conformity
CE label marking. - As the integration of a radio module requires wireless technological knowledge, ADEUNIS RF proposes its technical proficiency to its customers for a pre-compliance qualification of end products. In case of no-conformity, ADEUNIS RF will not be held back responsible if this stage has not been realised. -
Page 6: Arf09 Am Transmitter

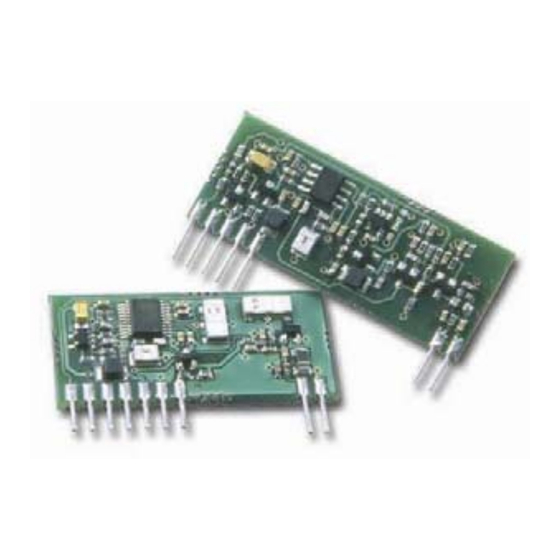

RF09 User Guide ARF09 AM Transmitter General use RF09 AM The TX A transmitter is a SAW transmitter developing a power of 10 mW on 50Ω. The use of half wave or quarter wave antennas is important to get a high radiated power. -
Page 7: Arf09 Am Receiver
• A transmitter by definition generates a large electrical field. Avoid high- impedance circuits close to the antenna , they will have to be moved away or protected. ARF09 AM Receiver General use RF09 AM The RX A receiver is a superheterodyne receiver with a sensitivity better than 0.7µV. - Page 8 RF09 User Guide • Receiver sampling is performed by direct switching of its VCC power supply. more information : http://www.adeunis- rf.com/list_faq.php?lng=FR http://www.adeunis- rf.com/list_faq.php?lng=EN • The AUDIO output cannot be used for analogue transmission; the demodulator in fact provides the modulation logarithm ! •...
-
Page 9: Specifications
RF09 User Guide Specifications RF09 AM transmitter Frequency 433.9 MHz / ARF6374A & I (433.4 MHz / ARF6374B on request) Developed power / ANT. Out. 10 mW / 50 Modulation ASK 100 % Digital input / TXData 0 / VCC (Input Load 5 k ) Transmitter is off (I <... -
Page 10: Standard Compliance
(Harmonic levels, leackage...) The final equipment, before the laboratory testing, has to be examined in ADEUNIS RF lab to verify the compliance. After official testing, equipment and test reports had to be archived to justify the compliance. Ref. 06-02-V4-pft...
