Summary of Contents for Artidor SpotLED AR-040 Series

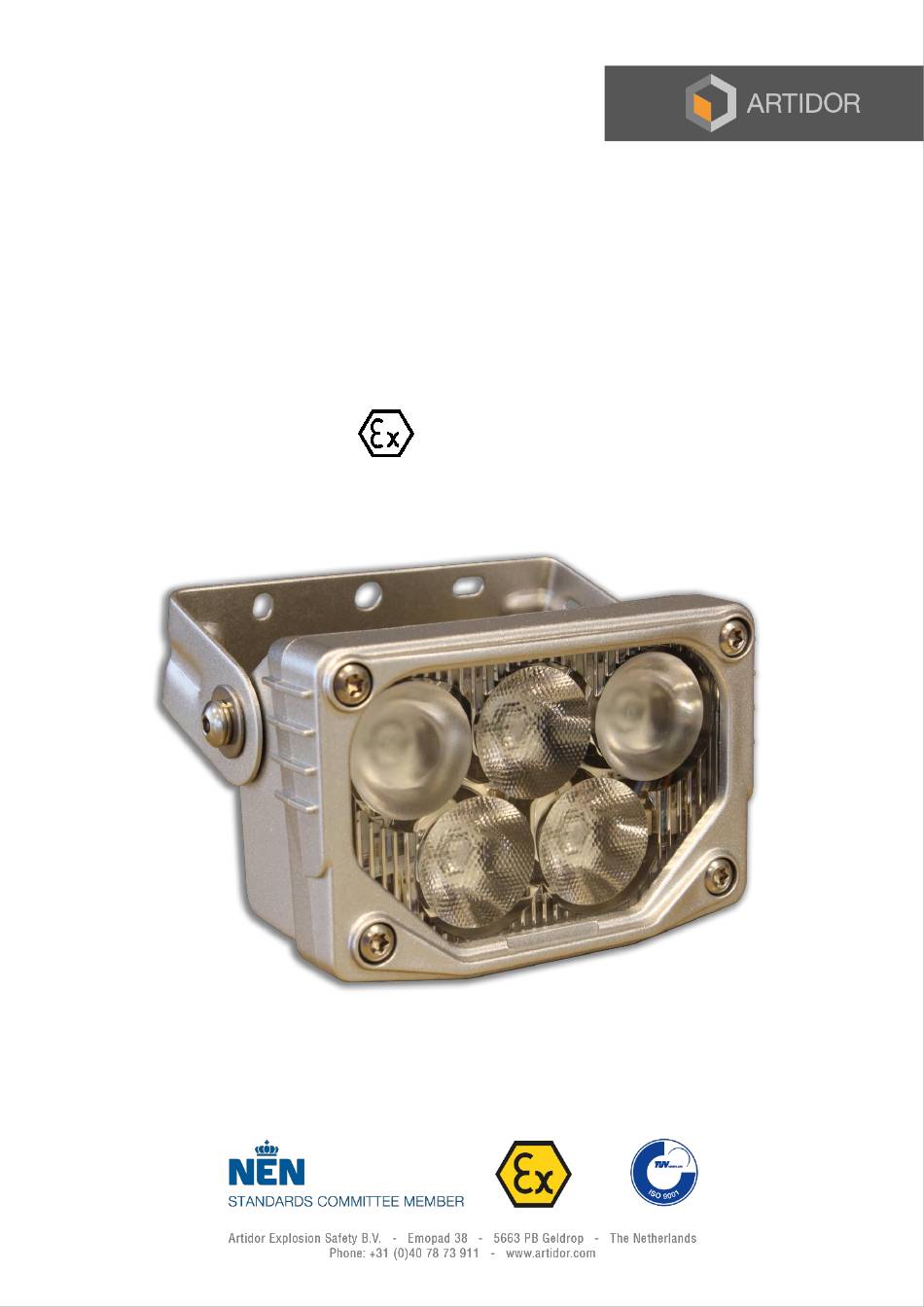

- Page 1 User Manual Explosion-safe SpotLED Type series AR-040 II 3 G Ex ec IIC T4 Gc II 3 D Ex tc IIIC T135ºC Dc...
- Page 2 If these instructions are not followed, the explosion safety of the equipment cannot be guaranteed. The equipment could then endanger the life of the user and could cause the ignition of an explosive atmosphere. Consequently, Artidor as the manufacturer will waive any responsibility.
- Page 3 The cable has a standard length of 5 meters. Due to the stainless steel bracket and the large 155° rotation angle, the SpotLED is suitable for mounting against walls or sloping surfaces. Characteristics The characteristics of the SpotLED can be summarized as follows: ...
- Page 4 Weight: 540 grams Marking and warning on the equipment To the SpotLED the marking label as shown below will be attached. ARTIDOR Explosion Safety Geldrop, The Netherlands SpotLED AR-040/110 - 5 x 10° -30 °C < Ta < +50 °C II 3 G Ex ec IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc...
- Page 5 Install the connection cable and make sure that it is protected from mechanical and chemical influences. Connect the end of the cable in a proper way to an external connection box and ensure this is done professionally. The connection box is not supplied. Use a connection box that it is suitably protected for the (explosion hazard) classification of the surroundings in which it will be used.
- Page 6 This document is subject to change without notice. Manual explosion-safe SpotLED AR-040 Issue April 2020 6 / 6...
