USER'S MANUAL
Characteristics
Your ultrasonic distance measurer is perfect for real estate agents or building-industry
professionals who need to know quickly a measure or the area of a room. Your distance
measurer can measure distances in a straight-line from 0.91 m to 15 meters.
distance measurer transmits ultrasonic waves to a point you want to measure.
Afterwards, it measures the time taken by the waves to reflect and then calculates and
retranscribes the distance.
Your distance measurer features:
-
With laser point aiming to see the target that one wishes to measure distance.
-
Foot/Meter function button: it allows you to transcribe measures in foot or in
meter and to convert a given distance into the type you want.
-
Liquid crystal screen on a luminous background: you can light the screen, thus
allowing an easier reading of information, even in a poorly lighted environment.
-
Automatic stop: your distance measurer switches off if you do not press any key
during 4 min.
-
3 memories: allow you to measure and to store 3 different measures.
function is useful if you want to measure the length, the width and the height of a room.
-
Calculation of area and volume: area and volume calculation based on the data
measured by you.
-
Addition and Subtraction function: allows you to add or subtract 2 measures.
-
"Clearing of memory" function: allows you to delete quickly all the measures
stored.
-
Correction of errors: the distance measurer indicates that the distance you
measure is too long or too short.
Preparation
Installation of battery: your distance measurer operates with a 9V battery (type 6LR61
not supplied).
Page : 1 / 4
CB-1005
ULTRASONIC DISTANCE METER W/LASER POINT

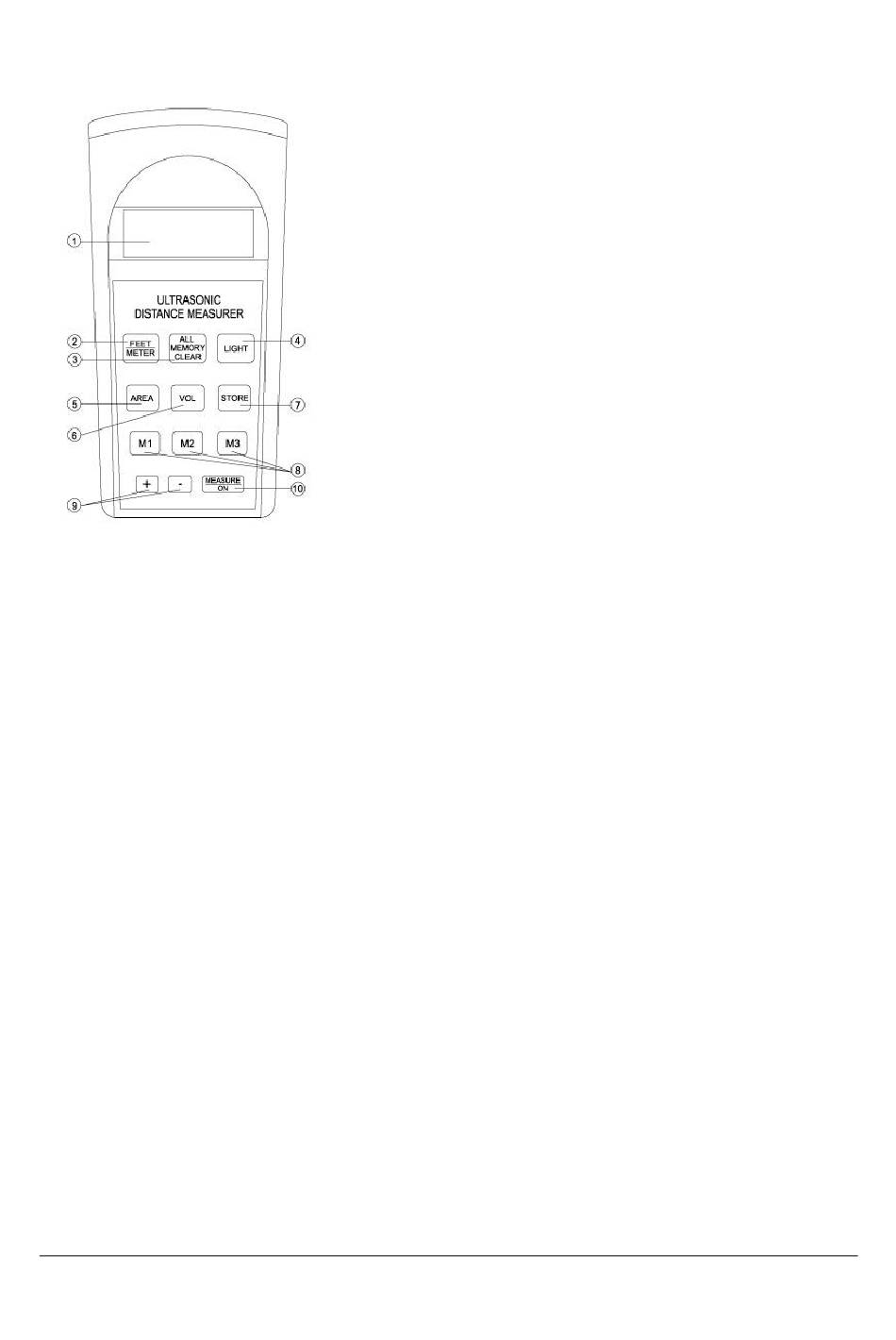

1.
LIQUID CRYSTAL SCREEN
2.
MEASURE IN FOOT OR IN METER
3.
MEMORY CLEARING
4.
SCREEN LIGHTING
5.
AREA
6.
VOLUME
7.
STORE
8.
MEMORIES 1 -2 - 3
9.
ADDITION OR SUBTRACTION FUNCTION
10.
MEASURE (ON)
Your
This
Advertisement
Table of Contents
Summary of Contents for Red Technology CB-1005
- Page 1 USER’S MANUAL CB-1005 ULTRASONIC DISTANCE METER W/LASER POINT LIQUID CRYSTAL SCREEN MEASURE IN FOOT OR IN METER MEMORY CLEARING SCREEN LIGHTING AREA VOLUME STORE MEMORIES 1 -2 - 3 ADDITION OR SUBTRACTION FUNCTION MEASURE (ON) Characteristics Your ultrasonic distance measurer is perfect for real estate agents or building-industry professionals who need to know quickly a measure or the area of a room.
- Page 2 CAUTION: use only a new battery of the size and type required. Instructions for the installation of a battery 1/ Slide the lid of the battery compartment in the direction of the arrow to open it. 2/ Place the battery in the compartment and over the ribbon, as indicated by the markings of the polarity (+ and -) symbols inside it.
- Page 3 REMARKS The measure appears for about 4 min (or more if you press another key). ERROR may appear if you try to measure a distance longer or shorter than the range chosen or longer than 18.288m. How to carry out a good measurement Some types of curtains and window-blinds may absorb waves, thus causing inaccurate measurements.
- Page 4 Add/subtract stored measures 1/ Measure 2 dimensions in a room and store the measures in M1 and M2 memories (see “Saving a measure”) 2/ Press ALL MEMORY CLEAR (clearing of memory). 3/ Press +, M1, +, M2, then + for adding the measures, or +, M1, -, M2, then + for subtracting them.
