Ormec XD-Indexer Kit Quick Installation Manual

Congratulations on your purchase of an ORMEC XD-Indexer kit.
WARNINGS
1. You are working with dangerous, high voltages. Only qualified
persons should make connections and changes. Do not touch
any live parts while the power is on.
2. Double check all wiring. When working with high
voltages mistakes can be dangerous and costly.
3. Motors can be dangerous. The output shaft will turn and the
motor may jump or move under some circumstances if not
secured. Stay clear of the motor shaft. Secure the motor so that
it cannot jump.
Gather tools – ¼" flat blade
1
screwdriver and wire
cutters/strippers.
Remove kit from the shipping
box.
Note there are more
instructions on reverse side.
You must supply wire for
connection to your plug or
panel.
2
Remove control box
by cutting shipping
restraint.

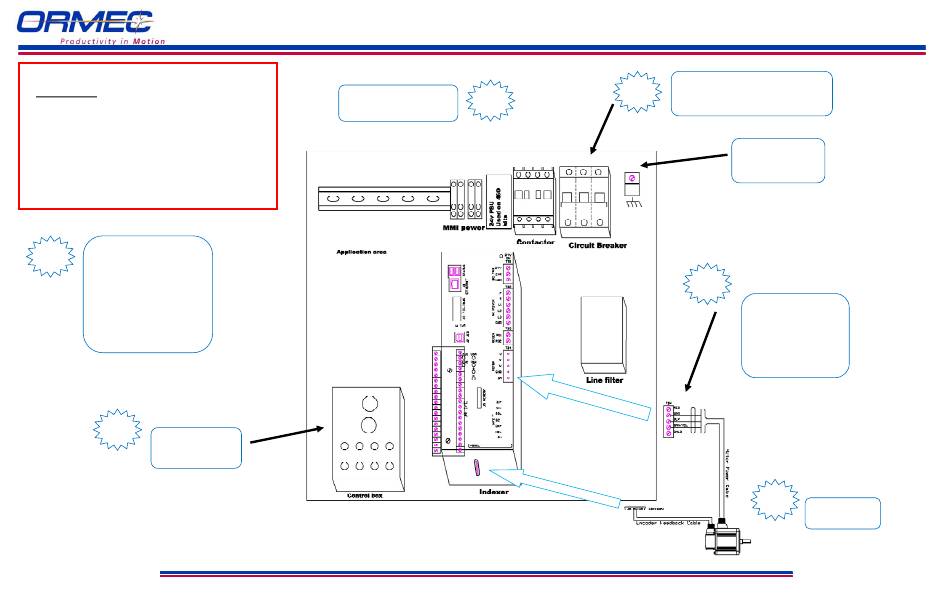

XD-Indexer Kit Quick Installation Guide
Go to Step 3 Test on reverse
6
side for test instructions.
Page 1
ORMEC Systems Corp. | 19 Linden Park | Rochester, NY 14625 | phone (585) 385‐3520 |www.ormec.com
Connect power to circuit breaker and
5
ground to and lug. Safety ground is
required. Follow local electrical codes.
Safety ground
here.
4
Connect 2 cables from
motor to TB4 on front
and J6 on bottom.
Cables connect only one
way.
(Additional detail on
reverse side.)
3
Secure motor for
initial test.
