Summary of Contents for IOtech PointScan 100 Series

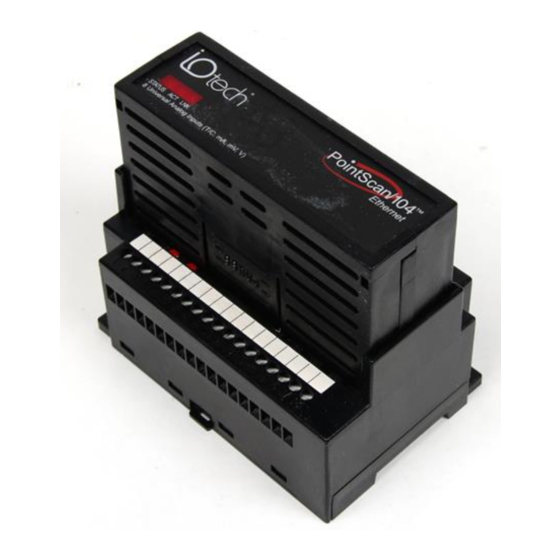

  • Page 1 (217) 352-9330 | Click HERE Find the Measurement Computing / IOtech PointScan/104 at our website:...
  • Page 2 E-mail (post-sales): productsupport@iotech.com Internet: www.iotech.com PointScan/100 Series User’s Manual Ethernet Distributed I/O 1085-0901 Rev. © 2001 by IOtech, Inc. September 2001 Printed in the United States of America Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 4 Copyright, Trademark, and Licensing Notice All IOtech documentation, software, and hardware are copyright with all rights reserved. No part of this product may be copied, reproduced or transmitted by any mechanical, photographic, electronic, or other method without IOtech’s prior written consent.
  • Page 5 (or any other solid-state device) should ever be designed to be responsible for the maintenance of consequential equipment or personnel safety. In particular, IOtech disclaims any responsibility for damages, either direct or consequential, that result from the use of this equipment in any application.

  • Page 6: Table Of Contents

    Table of Contents 1 - General Information PointScan/127 High Speed Counter Overview ..1-1 ..4-3 Module General Specifications ..1-1 Overview ..4-3 Input Wiring ..4-3 I/O Module Components ..1-2 I/O Registers ..4-3 DC Power Overview ..1-2 PointScan/100 LEDs ..
  • Page 7 PointScan/100 User’s Manual 9-12-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 8: General Information

    General Information Overview This manual will help you install and maintain PointScan/100 I/O modules. In summary, wiring for power, communications and I/O is connected to each module’s base. Then, setup choices are entered using the IO Toolkit software and the system will be ready to run. Shown below are some typical system configurations using PointScan/100 I/O: Using Ethernet based PointScan/100 I/O with (RS485) PointScan/200 expansion I/O General Specifications...

  • Page 9: I/O Module Components

    I/O Module Components A PointScan/100 Series I/O module consists of a base assembly and a removable logic module. All base assemblies have a hinged door that is accessible when the logic module is removed. In 4-20 mA analog input modules (PointScan/102, /104, /108, and /130) the hinged door provides access to jumpers and/or 100 ohm replaceable shunts.

  • Page 10: Pointscan/100 Leds

    DC Power Wiring PointScan/443 PointScan/442 gateways, and user instrumentation loops may be powered from the PointScan/443 power supply. The PointScan/443 supplies 24 volts DC at a maximum of two amps. DC Power Wiring (User DC Source) PointScan/442 gateways, and user instrumentation loops may be powered from a single DC source. The user DC power source must be between 18 to 30 volts.

  • Page 11: Isolation

    Isolation Every PointScan/100 Series I/O module is isolated from ground and other modules for fault-free operation. Additional levels of isolation (e.g. 500V channel to channel isolation) are provided with some modules. Refer to the product specifications in the IO Toolkit online help system for more information. Local Diagnostics Local diagnostics can be performed through any available port while the gateway is responding to messages from the other port.

  • Page 12: Getting Started

    Refer to the on-line help in the IO Toolkit for more information. v Run the (Citec) Software Refer to the on-line help in the Citec software for more information. w If You Have Difficulty If you experience startup trouble, contact IOtech at productsupport@iotech.com. PointScan/100 User’s Manual General Information 1-5 9-12-01...
  • Page 13 1-6 General Information PointScan/100 User’s Manual 9-12-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 14: Ethernet, Rs485 Wiring

    Ethernet, RS485 Wiring Ethernet Wiring Guidelines PointScan/100 I/O modules communicate with a master device (PC) using 10BaseT Ethernet media. Electrical isolation is provided on the Ethernet port for increased reliability. Follow normal Ethernet wiring practices when installing PointScan/100 I/O modules. RS485 Wiring Guidelines PointScan/100 I/O modules also feature an RS485 port for I/O expansion via PointScan/200 I/O modules.

  • Page 15: Pointscan/100 Series Panel Assembly

    PointScan/100 Series Panel Assembly PointScan/100 Series I/O snaps onto DIN rail strips fastened to the subpanel. The following figure shows a sample panel with DIN rail strips and wire duct attached. Recommended DIN rail spacing is 8 inches. This spacing allows room for wire duct to be installed without obstructing field wiring installation. The PointScan/100 Series modules are typically installed against one another, but space may be left between modules to accommodate other DIN rail mounted components such as terminal blocks and fuse holders.

  • Page 16: Screw Torque

    PointScan/100, PointScan/200, PointScan/300 Series I/O modules, PointScan/441 (RS-232/RS-485 Converter), and PointScan/443 (Power Supply) Dimmensions Gateway Dimensions DIN EN 50022 Suppliers Manufacturer Type Altech PR30 Entrelec TS35 Phoenix NS35/7.5 Wago TS35 Weco H-35 Weidmuller TS35 Wieland TS35 DIN Rail Dimensions Screw Torque All the screw terminals on the base should be tightened to a maximum of 3.48 in-lbs.
  • Page 17 2-4 Ethernet, RS485 Wiring PointScan/100 User’s Manual 9-12-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 18: Configuring Pointscan/100 I/O

    Note: PointScan/100 and PointScan/200 “smart bases” allow hot swap of live modules -- an exclusive IOtech feature that makes it permissible to configure PointScan/100 and PointScan/200 modules in live systems. The PointScan/100 or PointScan/200 module configuration you created the IO Toolkit program will be written into permanent memory in the module’s base.

  • Page 19: Io Toolkit

    IO Toolkit PointScan/100 or PointScan/200 modules are configured using the IO Toolkit software. Configuration parameters are written over Ethernet, RS485, or RS232 (PointScan/440 module only) into permanent memory in the module’s base. Refer to the IO Toolkit help for details. Here are the basic steps for configuring a PointScan I/O module or PointScan/442 gateway.

  • Page 20: Discrete I/O Modules

    Use the IO Toolkit to set pulse cycling as fast as 10 mS or as slow (many minutes) as your system dynamics require. Each output may be configured as a TPO or ordinary discrete output. I/O Registers Function IOtech Registers Modbus Registers Discrete Inputs X0 – X7 10001 –...

  • Page 21: Pointscan/122

    17 (DC +). One wire from each sinking field input should be bussed together and connected to terminal 18 (DC GND). Refer to the wiring diagram below. Set jumper W1 to match the wiring configuration of the inputs. I/O Registers Function IOtech Registers Modbus Registers Discrete Inputs X0 – X15 10001 – 10016 Counter Inputs AX0 –...

  • Page 22: Pointscan/127

    Any odd-numbered input can be gated by connecting a gating signal to the next highest even-numbered input. For example, Input 2 can gate the counter for Input 1. I/O Registers Function IOtech Registers Modbus Registers Discrete Inputs X0 – X7 10001 –...
  • Page 23 4-4 Discrete I/O Modules PointScan/100 User’s Manual 9-12-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 24: Discrete Output Modules

    Use the IO Toolkit to set pulse cycling as fast as 10 mS or as slow (many minutes) as your system dynamics require. Each output may be configured as a TPO or ordinary discrete output. I/O Registers Function IOtech Registers Modbus Registers Discrete Outputs Y0 – Y15 00001 –...
  • Page 25 5-2 Discrete Output Modules PointScan/100 User’s Manual 8-28-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 26: Discrete / Analog Modules

    A spare shunt is provided and may be simply inserted in place of any shunt that open circuits as a result of a current overload. I/O Registers Function IOtech Registers Modbus Registers Analog Inputs AX0 – AX7 30001 –...

  • Page 27: Overview

    18 (DC GND). Refer to the wiring diagram below. Set jumper W1 to match the wiring configuration of the discrete inputs I/O Registers Function IOtech Registers Modbus Registers RTD Inputs AX0 – AX3 30001 –...

  • Page 28: Analog Input Modules

    A spare shunt is provided and may be simply inserted in place of any shunt that open-circuits as a result of a current overload. I/O Registers Function IOtech Registers Modbus Registers Analog AX0 – AX15 30001 –...

  • Page 29: I/O Registers

    A spare shunt is provided and may be simply inserted in place of any shunt that open-circuits as a result of a current overload. I/O Registers Function IOtech Registers Modbus Registers Analog Inputs AX0 – AX7 30001 –...

  • Page 30: I/O Registers

    A single input terminal is provided for each input and output channel. Care must be taken to externally provide a suitable instrumentation ground for these input and output circuits. I/O Registers Function IOtech Registers Modbus Registers Analog Inputs AX0 – AX7 30001 –...
  • Page 31 8-2 Analog I/O Modules PointScan/100 User’s Manual 8-28-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 32 Table PointScan I/O Modules and Accessories Distributed I/O Modules Definition Description Ethernet RS-485 PT-Bus Analog Inputs 8 Analog Inputs Measure analog current with 14-bit resolution — PointScan/201 PointScan/301 (4 to 20 mA) 16 Analog Inputs Measure analog current with 14-bit resolution PointScan/102 PointScan/202 PointScan/302...
  • Page 33 Digital Outputs 6 Relay Outputs Dry contact relay outputs, SPDT (FormC) — — PointScan/336 (120 VDC/VAC, 2A max) 8 Digital Outputs High-current control outputs with isolation — — PointScan/337 (0 to 60 VDC, 2A max) 8 Digital Outputs High-current control outputs with isolation —...
