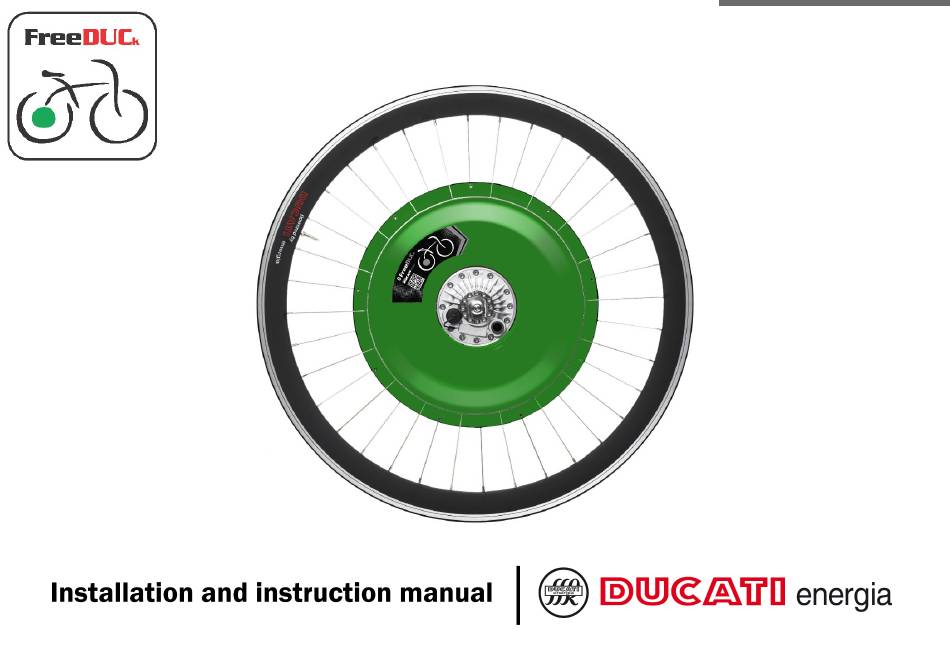

Summary of Contents for Ducati Energia FreeDUCk2
- Page 2 Thank you for choosing a DUCATI energia product. Note for installers: The company producing and selling bicycles provided with FreeDUCk Wheel must compulsorily supply the client with the use and maintenance product manual. Incomplete or incorrect guidelines may lead to misuse and loss of guarantee.
-
Page 3: Table Of Contents
Charging the battery Charger USING A BICYCLE WITH FREEDUCK2 WHEEL ............Pedal assist mode Unassisted pedalling MAINTENANCE ......................STORAGE FOR LONG PERIODS ................WASHING AND CLEANING..................WARRANTY CONDITIONS ..................TROUBLESHOOTING ....................FreeDUCk2 Wheel Manual Rev. 2/2015 - reproduction is prohibited... -
Page 4: Safety Instructions
RULES FOR CORRECT USE The FreeDuck2 e-wheel was designed to guarantee easy assembly and use with the least maintenance possible. There are some simple rules to follow to fit the bike safely. Follow the installation, operating and maintenance instructions in this Manual. Incorrect assembly or failure to comply •... -
Page 5: Wheel Description
6. On/Off button 7. Direction flange 8. Wheel axle 9. Charger connector 10. Rotation stopper 11 Bluetooth Antenna 12. Aluminium cover 13. Free wheel sprocket 14. Wheel axle RIGHT SIDE LEFT SIDE FreeDUCk2 Wheel Manual Rev. 2/2015 - reproduction is prohibited... -
Page 6: Technical Features
When the inside temperature of the e-wheel is below -20°C or above 60°C, system operation is inhibited. The FreeDUCk2 Wheel can be used to create a pedal assist bicycle in compliance with UN EN 15194 and 168/2013/EC standards. -
Page 7: Mounting The E-Wheel On The Frame
10mm spanner. Once adjusted, block the screws with a 2.8 Nm tightening torque. The direction arrow (point 1) must always face forwards, with a ±15° maximum tolerance. FreeDUCk2 Wheel Manual Rev. 2/2015 - reproduction is prohibited... - Page 8 Screw on the two axle nuts and position the e-wheel parallel to the frame so that the chain has a 15-20 mm stroke at the centre. Correct adjustment is necessary to prevent the bearings and transmission organs from premature wear. Check the alignment of the wheel again (adjust if needed) and tighten the nuts to a 30Nm torque using a 14mm spanner.
-
Page 9: Adjustments And Checks Before Use
BATTERY General battery information FreeDuck2 wheels are powered by a sophisticated Li-ion battery. This innovative technology guarantees great range, reliability and durability. The complete battery - composed of different elements connected in series - has a rated voltage of 36 Volt. -
Page 10: Correct Battery Management
Correct battery management The new e-wheel is usually supplied with a 50% charge, so the battery must be fully charged before using it for the first time. At the beginning, lithium batteries go through a "training" process, which affects future performance and durability. Do not fully discharge the battery during the first 4/5 cycles and do not put the vehicle on which it is mounted under too much strain. -
Page 11: Charger
If so, fuse "B" might be blown and need replacement. If the fuse needs to be replaced, use one with the same amperage. Using the wrong amperage can lead to serious risks, including fire hazard. FreeDUCk2 Wheel Manual Rev. 2/2015 - reproduction is prohibited... -
Page 12: Using A Bicycle With Freeduck2 Wheel
USING A BICYCLE WITH FREEDUCK2 WHEEL The FreeDUCk2 wheel is designed for easy use. The bicycle on which it is mounted can be used both in pedal-assist mode or as a traditional bike by simply keeping the e-wheel turned off. -
Page 13: Unassisted Pedalling
Before storing, fully charge the battery and charge again at least once a month. Store it in a sheltered, cool and dry place. If mounted on a bicycle, store raised from the ground to avoid deforming the tyre. FreeDUCk2 Wheel Manual Rev. 2/2015 - reproduction is prohibited... -
Page 14: Washing And Cleaning
WASHING AND CLEANING Periodical cleaning helps maintain the bicycle in a good and efficient state, enables correct maintenance and makes it easier to notice damage or breakage. To wash the bicycle correctly: Do not use high pressure or high temperature jets, but only water, mild detergent and soft, natural sponges. - Page 15 The charger cable is damaged. Replace the charger. The charger is not working and the LED remains The connector is not connected Check the connection of the charger to the e- green. properly. wheel. FreeDUCk2 Wheel Manual Rev. 1/2015 - reproduction is prohibited...
- Page 17 www.freeduck.it...
