- Page 1 AOB-6104 AOW-6104 AOW-6104 DG AOB-6104 DG AORB-6104 AORC-6104...
- Page 2 Dear Customer, First of all, congratulations for choosing our environment and technology friend product. Taking it as a goal to offer you products beyond your expectations, we present oven ,which is elaborately manufactured in modern facilities and subjected to strict quality controls for your use. This user manual will guide you through use of your device;...
- Page 3 CONTENTS Technical Specification.........1 General Wiew..........2 Safety warnings..........2 Usage............11 Maintenance & Care........15...

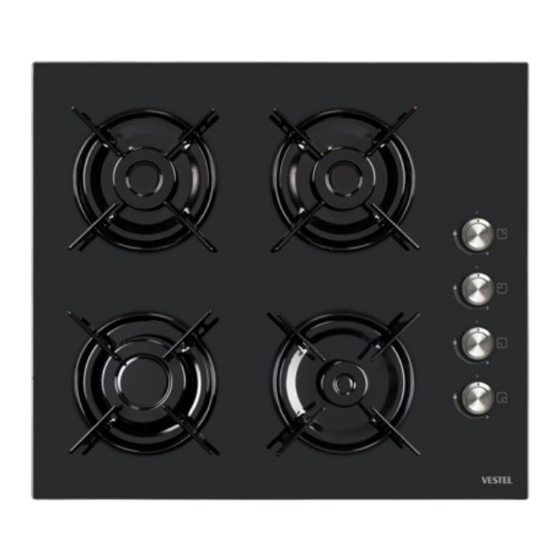

- Page 4 1. DESCRIPTION OF THE HOB The visuals used in the operating manual are intended for providing information on the components of the appliance only. Components may differ as per appliance model. Descriptions: 1. Securit glass 7. Semi-rapid burner 2. Pan support 8.
- Page 5 2. SAFETY WARNINGS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL.
- Page 6 2. SAFETY INSTRUCTIONS - WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. - WARNING: Danger of fire: do not store items on the cooking surfaces.
- Page 7 2. SAFETY INSTRUCTIONS - WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. - CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away.
- Page 8 - Do not try to lift or move the appliance by pulling the door handle. - All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with accessories.
- Page 9 - When you unpack the appliance, make sure that it is not damaged during transportation. In case of any defect; do not use the appliance and contact a qualified service agent immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children, they should be collected and removed immediately.
- Page 10 - During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step back to avoid the hot steam coming out of the oven. There may be a risk of burns. - Do not put flammable or combustible materials, in or near the appliance when it is operating.
- Page 11 - When the door or drawer of the oven is open, do not leave anything on it. You may unbalance your appliance or break the cover. - Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into the drawer.
- Page 12 Liability Limitation All technical information, user instructions, information about operation and maintenance of the appliance contained in this manual are the most up-to-date information available. Manufacturer does not assume any responsibility for damages and injuries that may occur as a result of non-compliance with the instructions given in this manual, using the appliance for purposes other than its intended use, unauthorized repairs, unauthorized modifications on the appliance and using spare parts that are not approved by the manufacturer.
- Page 13 3. INSTALLATION PRIOR TO INSTALLATION , ENSURE THAT THE LOCAL DISTRIBUTION CONDITIONS AND THE ADJUSTMENT OF THE APPLIANCE ARE COMPATIBLE. After removing the packaging material from the appliance and its accesories ensure that the hob is not damaged. If you suspect any damage do not use the appliance and contact a qualified technician immediately.
- Page 14 Create a space to install your hob , following the dimensions indicated on figure. *100 mm from edge of cooker to combustible materials. *700 mm underside of overhead cupboards, shelving * 650mm underside of overhead exhaust fans. This appliance must be installed according to the manufacturers installation instructions, local building regulations, gas authority codes and electrical wiring instructions.
- Page 15 * For all types of gases use D type connection in United Kingdom and Ireland In all cases, the flexible gase hose should neither pass behind an oveni nor be in contact with premises thet may cause combustion. Furthermore, make sure that all connections are done according to the national legal requirements for gas appliances.
- Page 17 Locating the built-in hob Worktop assembly bracket Bracket screw Sealing tape...
- Page 18 Electrical Connection Of Your Hob Before proceeding with the electrical connection verify that : * The current carrying capacity of the system and the socket is adequate for the maximum power rating of the hob. * The voltage indicated on the capacity label is the same as the supply voltage * Do not use for connection any reductions , adapters or shunts because they may cause overheating.
- Page 19 4. USAGE 4.1 Usage of Your Gas Burners Manual Ignition and Controlling the Gas Burners; To ignite one of the burners , approach a match to its upper circumference and push the corresponding conrol knob and turn it counter clock-wise.Medium regulation of the flame will be obtained by turning the control knob between maximum position ( big flame) and the minimum position ( small flame ) The small diagrams situated on the control panel indicate to the gas burners in use.
- Page 20 Flame Failure Device; Hobs equipped with flame failure device provide security in case of accidentally extingnished flame. If such a case occurs, the device will block the burners gas channels and will avoid any accumulation of unburned gas. Wait 90 seconds before re-igniting an extinguished gas burner.
- Page 21 GAS CONVERSIONS Transformation For The Gas Cookers Replacement Of Injectors The gas burners adapt to different types of gas, by replacing the corresponding injectors to gas on use . There fore it is necassery to; * Cut off the feeding gas flow and electric current. * Remove the cap and the adapter.
- Page 22 * With the help of a small screwdriver fasten or loosen the by pass screw 90°,which makes the flame of the burner reduce to the minimum. When the flame has a length of at least 4 mm , the gas is well distributed. Make sure that the flame does not die out when passing from the maximum position to the minimum position.
- Page 23 6. MAINTENANCE & CARE When you notice an abnormal situation in your appliance, you may attempt to troubleshoot according to the following descriptions. If your appliance does not still operate properly, contact to Vestel Call Center. You may access the authorized services list from the web site. Cleaning: Before cleaning disconnect the hob from the electricity supply if there is and close the main gas supply.
- Page 24 GAS CONSUMPTION TABLE G30 28-30mbar 7,5 kW 545 G20 20 28-30 I2H3B/P Class: 3 mbar mbar LAR GE BU R N E R DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) CONSUMPTION 285,7 l/h 218,1 g/h MEDIUM BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) 1,75 1,75...
- Page 25 Brand AOB-6104 AOW-6104 AOW-6104 DG Model AOB-6104 DG AORB-6104 AORC-6104 Type of Hob Number of Cooking Zones Heating Technology-1 Size-1 Auxiliary Energy Efficiency-1 Heating Technology-2 Size-2 Semi-Rapid Energy Efficiency-2 59,0 Heating Technology-3 Size-3 Semi-Rapid Energy Efficiency-3 59,0 Heating Technology-4 Size-4 Rapid Energy Efficiency-4 57,0...
- Page 26 Disposal of the Appliance in an Environmental Friendly Manner This symbol on the appliance or on the packaging of the appliance indicates that the appliance shall be handled as household waste. Instead of this, it shall be delivered to the applicable waste collection point where electrical and electronic equipment are recycled.
- Page 27 Optional Rights of Customer Consumer may exercise any of his/her optional rights below within two years of expiry period starting with the date of delivery of the good to the consumer if the good is found to be defective as per the provisions of Law on the Protection of Consumers no. 6502, even if the defect is found later;...
