Summary of Contents for Gratz Pilates REFORMER

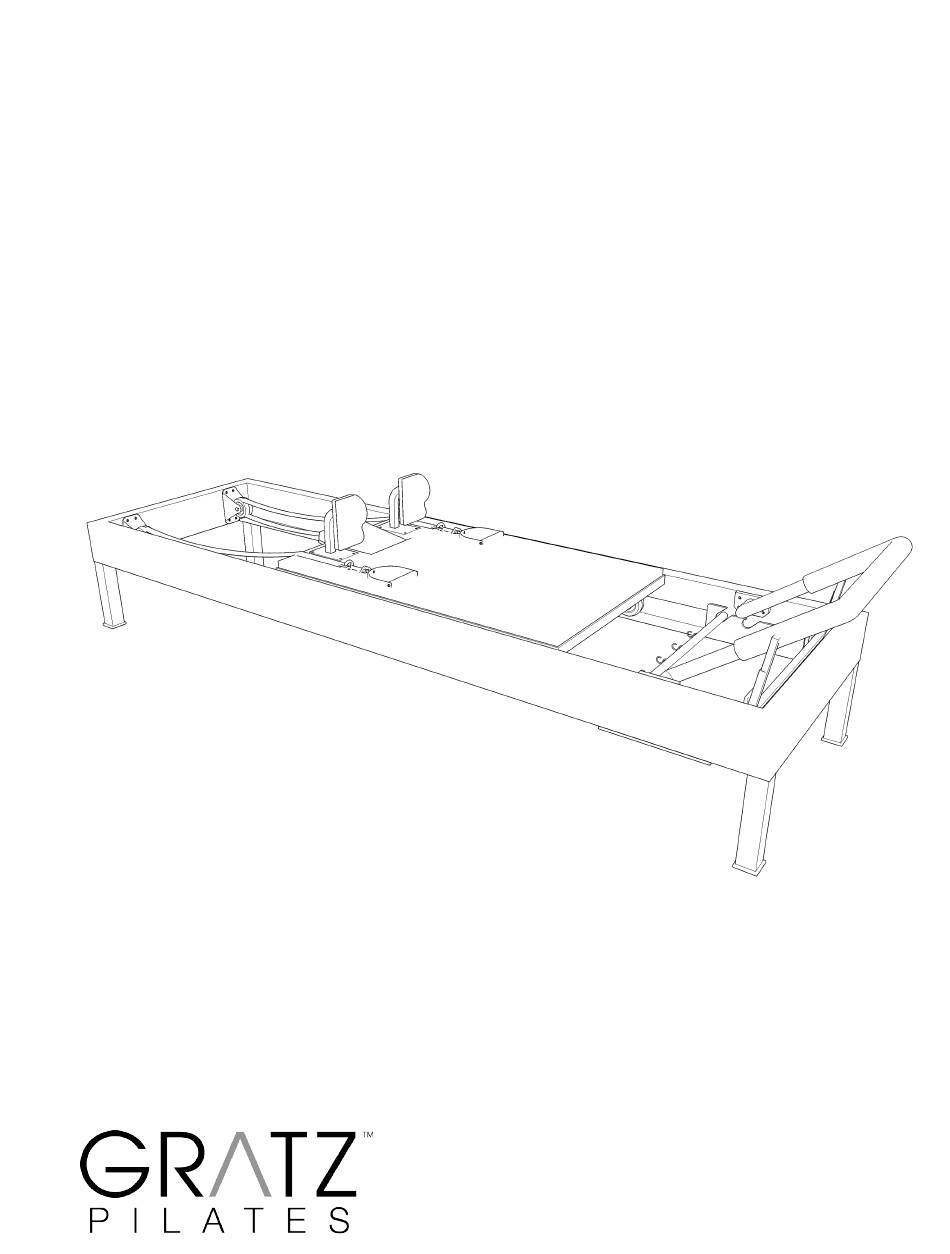

- Page 1 REFORMER CARRIAGE guide wheel cleaning Instructions...
-
Page 2: What You Will Need
Gratz Pilates is not and apply new grease to the responsible for any four guide wheels found on damage to the reformer the bottom of your Reformer and equipment that Carriage. may happen by person performing maintenance. wire brush... - Page 3 2 removing carriage set up work station • unhook springs from bar connecting to • place Carriage from Reformer top face Reformer Carriage down onto a flat clean surface • move handles and straps from • make sure you have all items needed Carriage •...
-
Page 4: You Will Need
step 3 you will need you will need removing the guide wheels 5/32 allen key • take the 5/32 Allen Key and place it in • after removing all four wheels, wipe the top of the shoulder bolt located on clean with the rag the 4 black blocks the center point of the wheel that the wheels attach to... - Page 5 step 4 you will need step 5 you will need wiping assembly clean applying the lithium grease lithium grease • after removing all four wheels, wipe • once all the parts are clean. Take + wire brush them clean with the rag along with the 4 the small wire brush and place it in the black blocks that the wheels attach to lithium grease and apply it to the center...
- Page 6 step 6 you will need reassembling guide wheels 5/32 allen key • after applying the grease to the wheel • next place the complete wheel place the large washer over the center assembly back on top of the black box of the wheel, then take the small spring and hand tighten the shoulder bolt to the washer and place it on top of the large...
- Page 7 www. pilates-gratz.com GRATZ INDUSTRIES 1306 Queens Plaza South, Long Island City, NY 11101 Tel: 718.361.7774 ext. 17 Fax: 718.392.8281 Email: sales@gratzindustries.com Please contact us if you have any comments, questions or concerns. 2011 © GRATZ INDUSTRIES...
