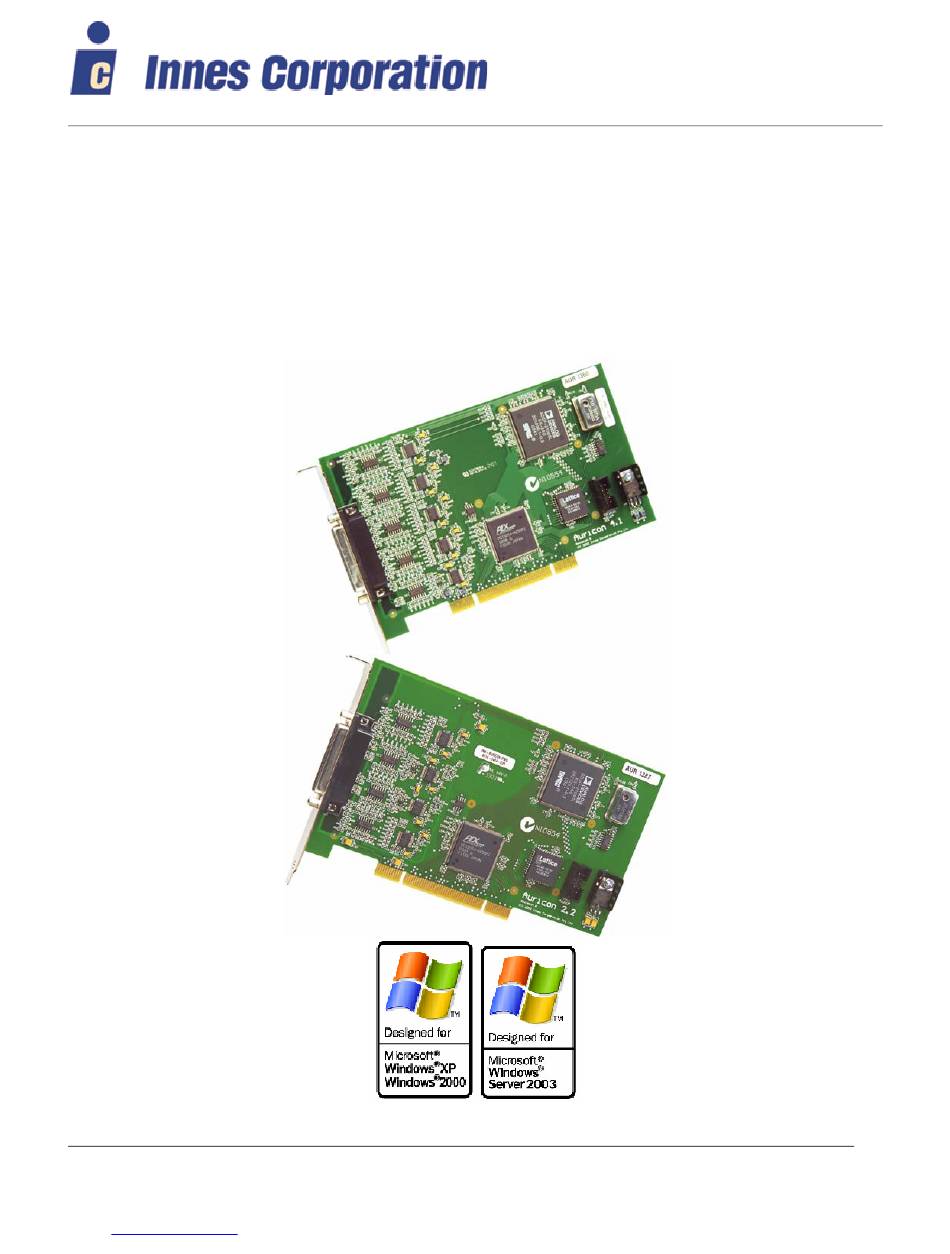

  • Page 1 ABN 20 003 325 693 Auricon 2.2 & 4.1 Manual Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Fax: +61 2 9987 0599 E-mail: sales@innescorp.com.au Website: http://www.innescorp.com.au...

  • Page 2: Specifications

    Two versions of the card are available, the Auricon 2.2 having two stereo outputs and two stereo inputs, and the Auricon 4.1 having four stereo outputs and one stereo input. The inputs and outputs can be reconfigured as separate mono channels, giving four inputs and outputs on the 2.2, and eight outputs and two inputs on the 4.1.

  • Page 3: Electromagnetic Compatibility

    • Peak meters for WDM drivers are only available through the mixer API under Windows XP, Server 2003 and ME (and Windows Vista running in XP-compatibility mode). It is possible to access the meters programmatically under Windows 2000 and Windows 98 (contact Innes Corporation...
  • Page 4 Windows Vista, XP, Server 2003 and ME. • Hardware mixing of multiple input sources for recording is not supported under Windows Vista, as each input source appears as a discrete audio endpoint device. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 5 2003 by default have the loudspeaker symbol turned off. To enable it, go into Control Panel, select Sounds, Speech and Audio Devices, then click on Sounds and Audio Devices, and finally tick the box marked Place volume icon in the task bar. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 6 Note: While the WDM driver does at least partially work with Windows 98 Gold (the first edition), Microsoft strongly recommend that such systems be upgraded to Windows 98 Second Edition, Windows Millennium Edition or Windows XP. Innes Corporation does not sanction the use of this driver with Windows 98 Gold.
  • Page 7 Installation (Windows NT version 4) Auricon driver version 6.00.00.3505 (or later) does not support this platform. Use version 4.00.3504 instead (available on request from Innes Corporation). Windows NT version 4 does not support Plug and Play so it is necessary to manually install the driver after you have inserted the card.
  • Page 8 2003 it may take up to a minute for Windows to reconfigure itself and the screen may flicker during this time, while Windows 98 and Windows ME will need to restart when the configuration has been changed. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 9 Firstly, if it is a new application being written specifically for Windows Vista, it can be designed to use the Core Audio APIs, which include the DeviceTopology API and the EndpointVolume API (which Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 10 The engine sampling rate and bit depth for each endpoint can be changed if need be by selecting the endpoint, clicking on Properties, and then clicking on the Advanced tab. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...

  • Page 11: Directsound And Wdm Kernel Streaming

    Windows Vista, XP and Server 2003). Not all CD-ROM drives support digital audio playback. On Windows XP, Server 2003 and ME there is also an option to enable error correction and this should be turned on for best results. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 12 On Windows Vista, right-click on the loudspeaker symbol, select Playback Devices or Recording Devices, select the desired endpoint, click on Properties, and then click on the Levels tab. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...

  • Page 13: Extended Bit Depth Audio

    Some audio editing applications, such as Syntrillium’s Cooledit 2000 and Adobe Audition, support extended bit depth audio and work well with the Auricon using 24 or 32 bit recording. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 14 If this proves to be a problem on a hyperthreaded system, the hyperthreading can usually be disabled in one of the BIOS settings. Refer to the motherboard or system documentation for details on how to do this. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 15 Shielded twisted pair input Output Unbalanced Balanced Shielded twisted pair output input Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 & 4.1 Manual Fax: +61 2 9987 0599 E-mail: sales@innescorp.com.au...

  • Page 16: Functional Description

    A filtered analogue 5V plane is used in order to minimise any digital noise on the analogue inputs and outputs. The analogue ground is also fenced off from the digital ground, and clock and serial data signals crossing the ground plane division are filtered. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 17 Shield When configured for mono operation, channel A is 1 left, channel B is 1 right, channel C is 2 left and channel D is 2 right. Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 &...
  • Page 18 Auricon 4.1 Pinout Input 1 Le ft Input 1 Right Output 1 Le ft Output 1 Right Output 2 Le ft Output 2 Right Output 3 Le ft Output 3 Right Output 4 Le ft Output 4 Right Shie ld...
  • Page 19 Line Input 1 Re cord Maste r Line Input 2 Analog Input 1 Analog Input 2 Innes Corporation Pty Ltd 3/38 Leighton Pl Hornsby, NSW 2077, Australia Phone: +61 2 9987 0499 Auricon 2.2 & 4.1 Manual Fax: +61 2 9987 0599 E-mail: sales@innescorp.com.au...
  • Page 20 Auricon 4.1 Topology Line Input 1 Analog Output 1 Wave Out Playback Master Playback Software Device A Midi Synth Loopback Record Software Device A Line Input 1 Record Master Line Input 1 Analog Output 2 Wave Out Playback Master Playback Software Device B...

  • Page 21: Output Mixing

    - instead changing the level of one stream actually changes the setting of the kernel mixer’s “Wave Out” fader and thus affects the level of every stream on that device. Innes Corporation Pty Ltd 3/38 Leighton Pl...
