INSTALLATION MANUAL
PRODUCT PASSPORT

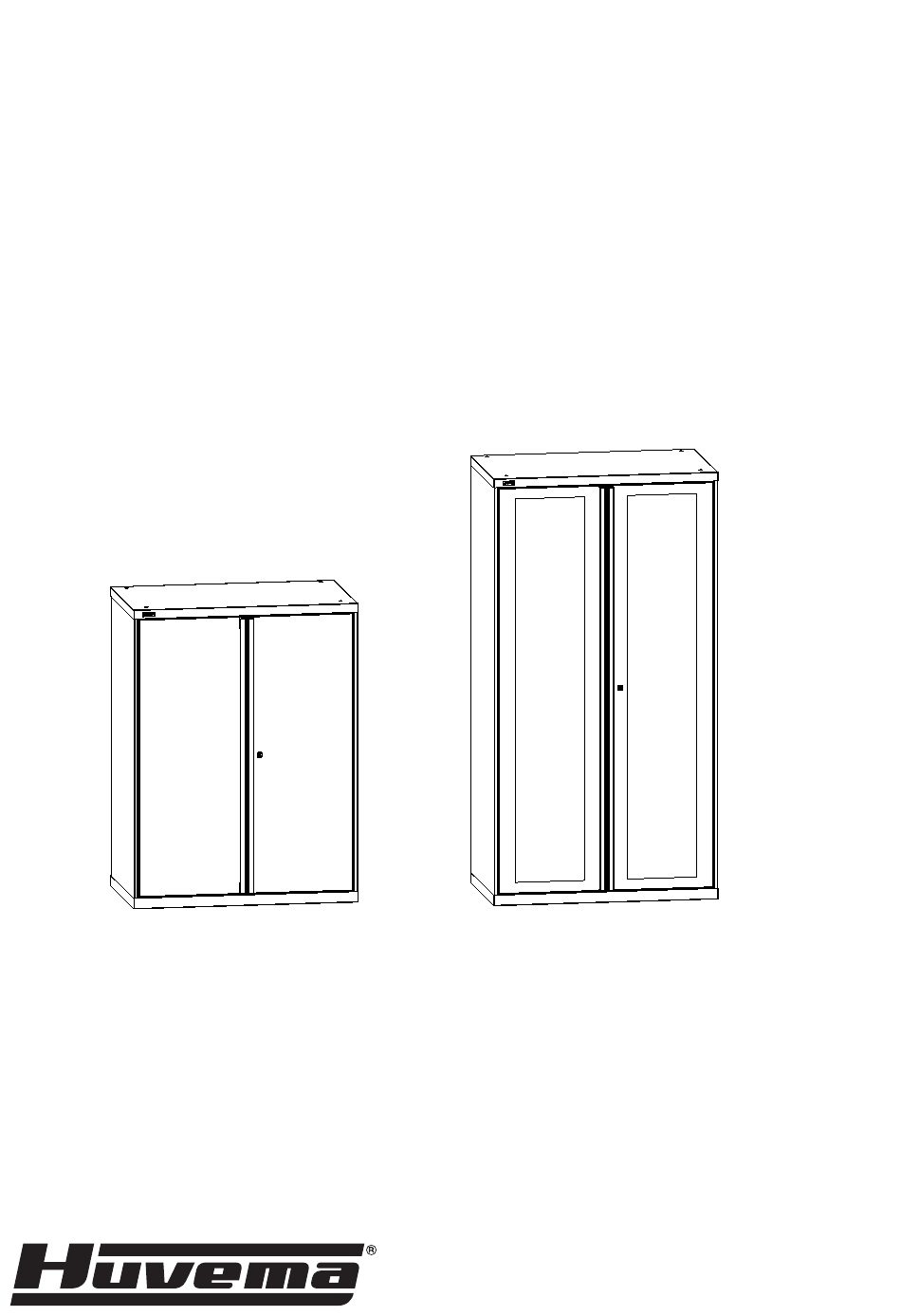

Huvema VS-053 and VS-055 Tool Cupboard
DiKom VS-053 and VS-055 Tool Cupboard
Date of manufacture
Technical Control
Department Controller
St. Petersburg
Kennedylaan 14
5466 AA Veghel
the Netherlands
Packer
Tel.: +31 (0) 413 34 22 75
E-mail: info@huvema.nl
Web: www.huvema.nl
Advertisement
Summary of Contents for Huvema Huvema VS-053
- Page 1 INSTALLATION MANUAL PRODUCT PASSPORT Huvema VS-053 and VS-055 Tool Cupboard DiKom VS-053 and VS-055 Tool Cupboard Technical Control Date of manufacture Department Controller Packer St. Petersburg Kennedylaan 14 Tel.: +31 (0) 413 34 22 75 5466 AA Veghel E-mail: info@huvema.nl the Netherlands Web: www.huvema.nl...
-
Page 2: General Information
General information 1.1. DiKom VS-053 and VS-055 heavy-duty Tool Cupboards are ready-to-assemble. Cupboard is designed for industries, repair shops, garages, etc. Used for storing tools and equipment. Internal configuration varies according to Customer request. The following modules are available: - S-053/055 Doors fitted with windows, or regular doors; - VS-052-055 set of Side Perforated Panels, with optional rails and frames for tool holders. -
Page 3: Internal Modules
2.3. VS-053/VS-055 Cupboard (without doors) (VS-055 three pack.places; VS-053 one pack. place) VS- 053/ Image Name № VS-055 1) Right side wall 2) Left side wall 3) Rear wall 4) Cover 5) Bottom 6) Shelf Front 12) Mangetic Bolt connector M6x12 with nut Retainer 13) M6X12 Screw... - Page 4 2.6. VS-05 Anti-tilt System h600/1200/1600 When using roll-out platforms or installing more than 2 drawers, installation of the anti- tilt system is mandatory. The height of the anti-tilt system must correspond to the total drawer height . Image Name № h600 h1200 h1600 Anti-tilt system h600/1200/1600...
- Page 5 2.11. Frame for tool holders-03 Image № Name Qty. 1) Frame-03 Height 2) Bracket for the adjustment Cabinet-01/-03 bracket-01/-03 3) Screw, 4,2x9,5 self-locking M8 4) Screw M8x16 7) Washer 8 2.12. Rails for tool holders-03 Image Name Qty. № Rails for tool holders-03 6) Bracket 15°...
- Page 6 2.13. VS-03 Perforated panel for the cabinet Image № Name Qty. 1) Perforated panel 2) Hitch 2.14. VS-05 Tabletop (installed on the VS-053 model) Image Image Name Qty. Name . Qty. № № 2) Bolt M8x18 VS-05 Tabletop Washer 8 wide 2.15.
- Page 7 ASSEMBLY INSTRUCTIONS Lay out the parts. ATTENTION! It is important to determine the left and right sides, cover and bottom, top and bottom parts of the Cabinet. "DiKom" logo left right Cover If a VS-05 anti-tilt system is available, mount it to the rear wall right away.
- Page 8 Fasten the connectors on the sidewalls. 16 pc 16 pc 16 pc Self-locking M6X12 Screw Washer 6 Nut M6 Front connector Left side Right wall side wall Set and install the bottom. 8 pc 4 pc 2 pc 8 pc 8 pc Rail guide Self-locking...
- Page 9 Attention! If a VS-05 anti- left right tilt system is available, mount it to the rear wall right away. Rear wall (symmetrical) 5 pc 5 pc Screw Nut M6 M6X12 5,5х16 self-locking Screw Connect the rear wall and bottom. Fix the rear wall with four screws around the perimeter.
- Page 10 Install the VS-05 Stand, Base and Crane Kit 4 pc Mangetic Bolt 4 pc 4 pc M6x12 with nut Nut М10 Bolt М10х20 self-locking 4 pc 4 pc Nut M6, M6X12 4 pc self-locking Screw Washer 10 Base Magnetic bolt Ear Bracket VS-05 Stand Base...
- Page 11 Install the drawers form the bottom up. Install the rail guides on the sidewalls Slide out the rail guides and install the drawer� Two sets of rail guides can be installed on the h150/300 drawer. This will increase the carrying capacity to 200 kg. Shelves and perforated Install the perf.panels from the bottom up.
- Page 12 3.10 VS-05 15° Bracket Set for rails Install the bracket on the hitches. Set retainers. Set rails into brackets� Комплект кронштейнов для салазок устанавливается на боковины шкафа. Для установки отдельных салазок и рам под рержатели инструмента - необходима установка Комплекта Экранов боковых! Placement of tool holders 16 pc...
- Page 13 3.12 Roll out shelf Separate rail guides, push out the retainer. Install rail guides at the required height (within the limits of the anti-tilt system!) Place the roll-out shelf onto the rail guides.
- Page 14 3.13 Install the doors. 6 pc It is important to determine the position of the hinges! Hinge 36 pc Attention! 4 x 6 Rivet inner side of the door Install doors...
-
Page 15: Safety Requirements
Safety requirements: ATTENTION! Drawers must be installed from the bottom-up! Loads Maximum permissible evenly distributed load, kg Name VS Cupboard 1200 kg VS-05-Shelf 200 kg 100 kg 200 kg * VS drawer * When installing additional rail guides on the h150/300 Drawer VS roll-out shelf 200 kg Characteristics... - Page 16 Configuration options for VS-053 and VS-055 Cupboards. VS-053 VS-053 VS-053 VS drawers VS drawers VS roll-out shelves VS Anti-tilt System 600, set of VS Anti-Tilt System 600, VS- 05 Shelf, VS Anti-tilt System 1200 brackets, Rails, VS-03/ -05 Perf.Panel for the Cabinet, VS set of side perforate panels.
