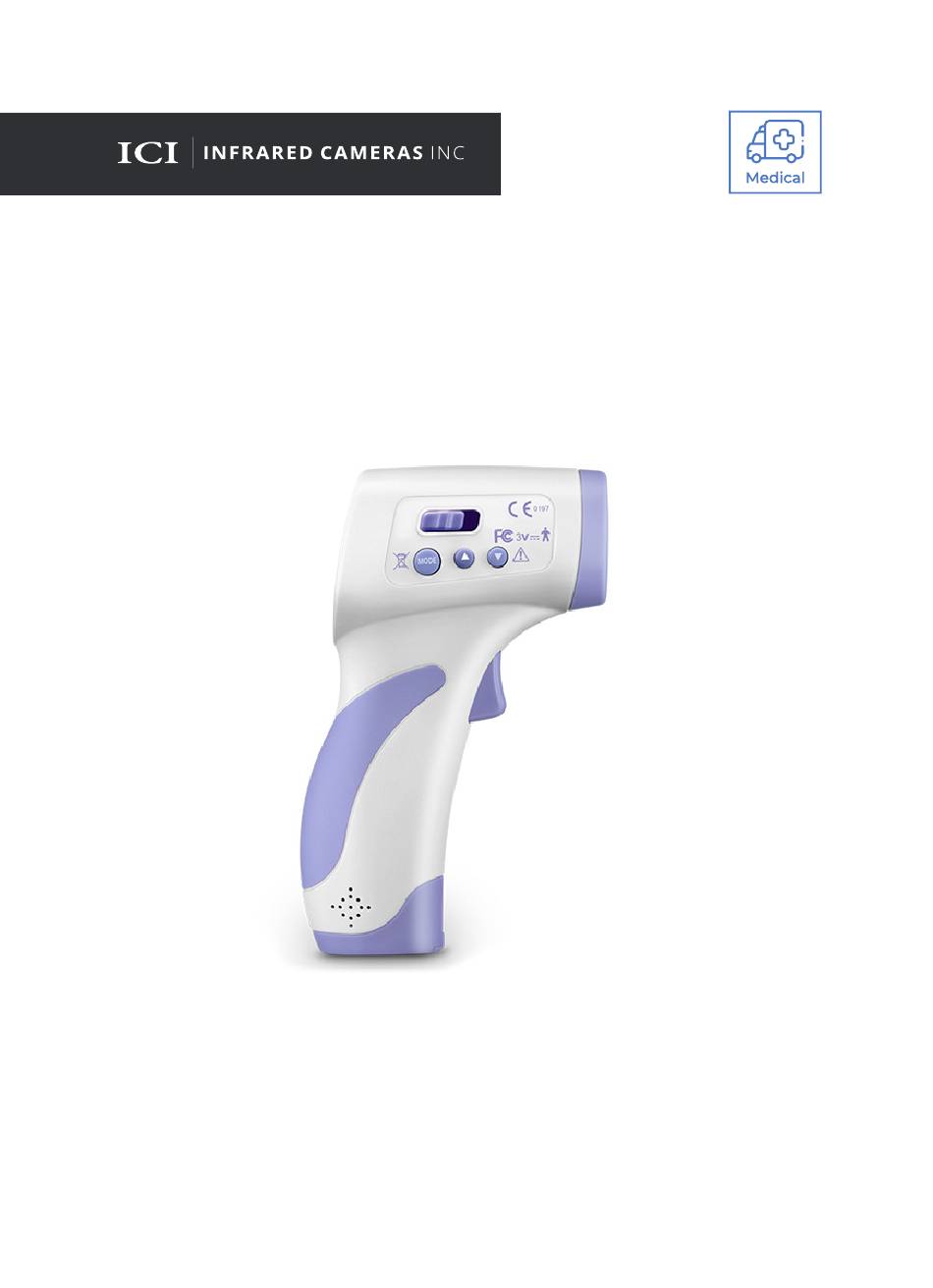

HOTSPOT IR
NON-CONTACT THERMOMETER
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
2105 W. Cardinal Dr. Beaumont, TX 77705 | Phone: (409) 861-0788 | Toll Free: (866) 861-0788
infraredcameras.com | sales@infraredcameras.com | We Are IR ™
Advertisement
Table of Contents
Summary of Contents for ICI HOTSPOT
- Page 1 Edit Text Outlines Medical Medical HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. 2105 W. Cardinal Dr. Beaumont, TX 77705 | Phone: (409) 861-0788 | Toll Free: (866) 861-0788...
- Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 3: Table Of Contents
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL Contents General Description Safety Information Features Intended Use Configuration Indicator Description of Symbols Technical Specifications Calibration Instructions Intended Use Measuring Operations Advice Maintenance and Cleaning Troubleshooting Conformity Standards About ICI THESE SYSTEMS ARE INTENDED TO BE USED ADJUNCTIVELY... -
Page 4: General Description
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 1. General Description The HotSpot IR Non-Contact Thermometer is specially designed to take the body temperature of a person regardless of room temperature. Depending on various skin types and thickness, there may be temperature difference. -
Page 5: Features
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL • Clean the glass with a cotton swab lightly moistened with 70% alcohol. Important: • Before taking a temperature measurement make sure to remove hair and perspiration from the forehead. • Selecting “Body” mode to measure the body temperature;... -
Page 6: Intended Use
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 4. Intended Use Non-Contact IR Thermometer is designed for body surface and temperature measurement for infants and adults without coming into contact with the human body. Non-Contact IR Thermometer can also be used to measure the temperature of a baby-bottle or bath, or room temperature (by using the Surface Temp function). -
Page 7: Configuration

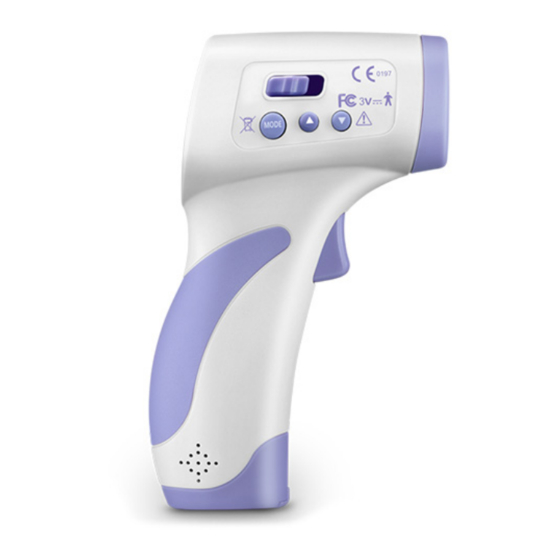

HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 5. Configuration IR Sensor LCD Display Mode Selection Down Button Up Button Mode Button Measurement Trigger Battery Cover 6. Indicator Surface mode Symbol Body mode Symbol Digital readout Battery Symbol The order number Save data readout Temperature Scale: °C(Celsius)/°F(Fahrenheit) -
Page 8: Description Of Symbols
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 7. Description of Symbols... -
Page 9: Technical Specifications
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 8. Technical Specifications 8-1. Normal Conditions of Use Display Resolution 0.1 °C (0.1 °F) Operating Temperature 10 °C to 40 °C (50 °F to 104 °F) Storage Temperature 0 °C to 50°C (32 °F to 122 °F) Humidity Rate <... -
Page 10: Calibration Instructions
IR Non-Contact Thermometer keeping 5 to 15 cm (2” to 5.9”) distance between the thermometer and the person. If you get 37 °C (98.6 °F), the HotSpot IR Non-Contact Thermometer is properly set and ready for use. If you get a lower or higher temperature, 38.1 °C (100.6 °F) for example, you should re-calibrate the HotSpot IR Non-Contact Thermometer. -
Page 11: Intended Use
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 10. Use Install battery. For first use or when inserting new batteries, wait 10 minutes for the device to warm-up. If the device is not used for a long time, the device will delay turning on for one or two seconds in order to first test the room temperature. -
Page 12: Measuring Operations
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 11. Measuring Operations 11-1. Choosing the Temperature Unit – F1 Function Press MODE button for 2 seconds, screen will display: F1. Press ▼ for degrees Celsius, ▲ for degrees Fahrenheit. 11-2. Alarm Setup – F2 Function Press MODE button for 2 seconds, screen will display: F1. - Page 13 HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 11-6. The HotSpot IR Non-Contact Thermometer is specially designed to take the body temperature of a human being. For this, use the Body mode. Measurement range for Body mode: 32 to 42.5 °C (86°F to 108 °F).
-
Page 14: Advice
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 12. Advice • The protective glass over the lens is the most fragile part of the thermometer. Be careful with it. • Do not attempt to recharge non-rechargeable batteries. • Do not throw the device in a fire. -
Page 15: Troubleshooting
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 14. Troubleshooting If you happen to have problems while using your the non-contact IR thermometer refer to guide below to help resolve the issue. Contact customer service at support@infraredcameras.com if problems persist. Strange Readings when taking Skin Surface Temperatures... - Page 16 HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL Message Warnings Reasons for “LO” or “HI” See Troubleshooting message Temperature reading Make sure that there is no hampered by hair, obstruction prior to taking perspiration… temperature measurements Temperature hampered Make sure there is no air flux by an air flux.
-
Page 17: Conformity Standards
HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL 15. Conformity Standards • EN12470-5 and ASTM E1965-1998 • EN 980: Graphical symbols for the labeling of devices • EN 1041: Information supplied by the manufacturer • 60601-1: Electrical equipment Part General requirements for safety (IEC:60601-1:1998) •... -
Page 18: About Ici
You can see our products and services used in industrial, commercial, and government applications worldwide. Additionally, our ICI 7320 was awarded “Product of the Month” by NASA*. Originally named Texas Infrared (still DBA), Infrared Cameras Inc. has been in business since March, 1995. - Page 19 HOTSPOT IR NON-CONTACT THERMOMETER USER MANUAL...
