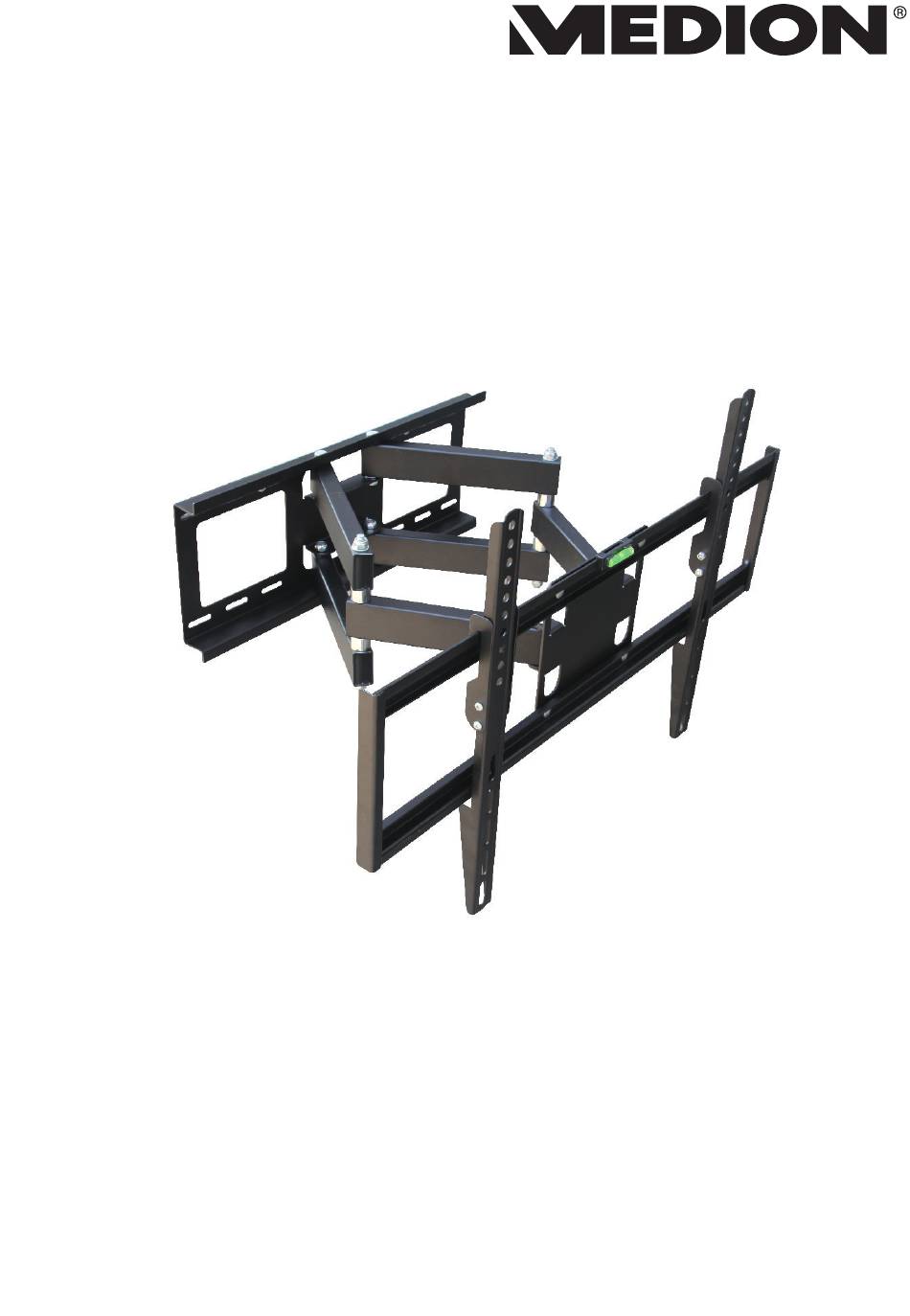

- Page 1 User Manual LCD-TV WALL MOUNT 94 – 177.8 cm (37”-70”) MEDION LIFE ® ® S13907...
-
Page 2: Table Of Contents
Contents Information about this user manual ............3 1.1. Explanation of symbols ..................3 Proper use ....................4 Safety information ..................5 3.1. User groups ......................6 Required tools ....................6 Mounting ...................... 7 Device parts ....................7 6.1. Getting started ....................... 8 6.2. -
Page 4: Information About This User Manual
1. Information about this user manual Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions and all other instructions carefully before using the appliance for the first time. Note the warnings on the appli- ance and in the user manual. -
Page 5: Proper Use
2. Proper use This product is designed for mounting flat screens with certain display sizes, weights and fixing points to a vertical wall that is strong enough. With it, you will find it easy to mount screens, and adjust (tilt, pivot) them, even where space is short. •... -
Page 6: Safety Information
3. Safety information • Proper installation is absolutely essential, and is not the re- sponsibility of the manufacturer/supplier. The supplied screws must only be used for fixing the wall mount to the wall and the wall rails to the rear of an LCD TV. •... -
Page 7: User Groups
3.1. User groups Due to the high potential for danger and the risk to health, some working steps must only be performed by trained specialists. Working step User group Installation, disassembly, Users with mechanical expertise cleaning and similar, trans- To avoid personal injury or damage to port, storage, disposal property, keep the wall mount away from children and persons with reduced... -
Page 8: Mounting
5. Mounting 6. Device parts Wall mount 2x adapter brackets 6x hex socket screws, 6 x 55 mm 6x wall plugs (8 x 60 mm) 4x cross-head screws, M6 x 20 mm 4x hex bolts, M8 x 16 mm 6x washers, dia. 6 mm 4x washers 2x cross-head screws, M5 x 120 mm 4x spacers, dia. -
Page 9: Getting Started
6.1. Getting started Check the package contents are complete and undamaged, based on the list of items supplied. Ensure that the technical properties for all the products used lie within the stated ranges. CAUTION! Risk of injury! Risk of crushing if the wall mount is opened or closed accidentally when it is being mounted or removed! ... - Page 10 CAUTION! Risk of injury! Risk of injury due to unsuitable ambient conditions! Check the wall's properties and select a safe location for the installation. Make sure you do not damage any live electricity cables or ot- her wires or pipes in the wall. ...
-
Page 11: Installing The Screen
6.3. Installing the screen CAUTION! Risk of injury! Unsecured and protruding parts pose a trip and fall ha- zard and can cause injuries! To avoid injuries, ensure that the wall mount and all accessories are transported, installed and positioned safely. -
Page 12: Mounting And Securing The Screen
6.4. Mounting and securing the screen CAUTION! Risk of injury! Unsecured and protruding parts pose a trip and fall ha- zard and can cause injuries! To avoid injuries, ensure that the wall mount and all accessories are transported, installed and positioned safely. -
Page 13: Adjusting The Screen
Together with a second person, mount the prepared screen on the wall mount using the adapter brackets Screw the cross-head screws to the adapter brackets from below to secure the mounted screen. 7. Adjusting the screen CAUTION! Risk of injury! Careless use of the wall mount may result in crushing due to moving heavy parts! ... -
Page 14: Care, Maintenance, Storage And Transport
8. Care, maintenance, storage and transport The wall mount must only be serviced by qualified personnel in a specialist workshop. Remove dirt from the moving joints and use light machine oil to lubricate these parts regularly. To avoid scratches, clean the wall mount carefully, using only a soft, dry cloth. Lightly moisten the cloth with water, and use it to remove heavy soiling. -
Page 15: Vesa Standard
10. VESA standard VESA (the Video Electronics Standards Association) has defined three standards to harmonise the mounting options for monitors, TVs and their stands and wall mounts in a user-friendly manner. You can identify the fixing points using the rele- vant information on your device or in the technical data in your device's user manu- al, and the information in these instructions. -
Page 16: Service Information
In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 17: Legal Notice
15. Privacy statement Dear Customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, 45307 Essen, Germa- ny process your personal data as a data controller. For matters regarding data protection, we are supported by our company data pro- tection officer, who can be contacted at MEDION AG, Datenschutz, Am Zehnthof 77, D –... - Page 18 Produced in China for: MEDION AG AM ZEHNTHOF 77 45307 ESSEN GERMANY MSN 3002 9308...
