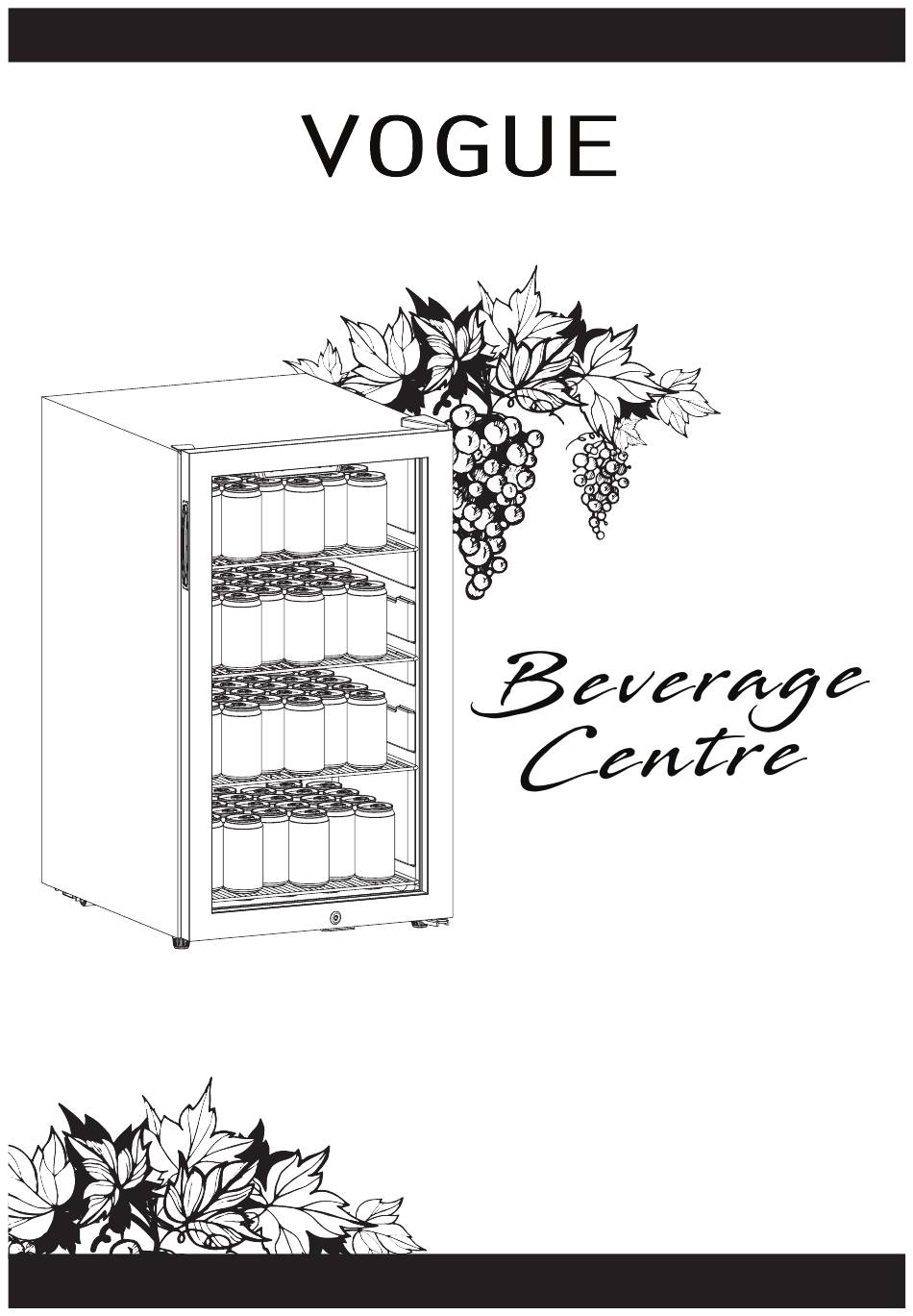

- Page 1 4 8 0 x 57 5 x 8 55 mm 3 56 1 32...
-
Page 2: Table Of Contents
IN D EX Safety Instructions & Warnings ...... Installation ...... Description of the Appliance ...... Operation ...... Troubleshooting ...... Maintenance and Cleaning ...... Technical Parameters ...... -
Page 3: Safety Instructions & Warnings
SAFETY INSTRUCTIONS & WARNINGS Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. CAUTION This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 SAFETY • Do not allow child play inside the appliance in case of entrapment. • Do not allow child hang on the door to play in case of falling of the appliance. • Do not allow child reach into compressor compartment or touch metal components at rear of the appliance in case of possible injury.
-
Page 5: Installation
INSTALLATION Position • Do not lean the appliance over 45° when moving it to position. • The appliance must be put on flat, firm & dry floor or similar noncombustible pad; do not use the package foam pad. • Do not expose the appliance to rain •... -
Page 6: Operation
OPERATION Start operation 1. CLEANING THE COMPARTMENT Before power on, clean inside of the appliance and check the drainage pipe in good connection. (For details, please refer to the “Maintenance and Cleaning”) 2. PLACEMENT BEFORE Powering on, level the appliance on the firm & dry floor for at least 30 minutes. 3. - Page 7 FAHRENHEIT/CELSIUS (Interchange Combination key) Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid. ATTENTION 1. The cooling temperature could be set from 0°C-10°C. 2. Alarm sound: when the system malfunction occur and alarm sound, press any key on the control panel to cancel the alarm sound.
-
Page 8: Troubleshooting
TROUBLESHOOTING • Please adjust the front foot, keep the appliance leveling. The appliance makes lots of noise? • Please keep the appliance a bit space from walls Liquid flowing sound inside the cabinet? • It is normal because of the refrigerant working inside. •... -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING CLEANING Disconnect the appliance before cleaning. Clean the appliance with soft cloth or sponge by water. Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Do not flush the compartment of the appliance. THE BELOW ITEMS WILL DAMAGE THE SURFACE OF BEVERAGE COOLER: Alkaline Detergent Organic Solvents... -
Page 10: Technical Parameters
TECHNICAL PARAMETERS Product Model 356132 (YC-124) Voltage/Frequency 220-240V~/50Hz Refrigerant/Weight R600a/30g Effective Volume 124L Loading Capacity 132 Can Net Weight 32.2kg Unit Dimension(WxDxH) 480 x 575 x 855mm Packing Dimension(WxDxH) 510 x 605 x 890mm REMARKS 1. The Net weight includes shelves and the Unit dimension is without handle on the door.
