  • Page 1 HD75 S erieS USER GUIDE...
  • Page 2 Welcome to Sound World Solutions!
  • Page 3 Ready to hear better with your new HD75 device? It may take some time to get used to the amplification provided by your new device. You will hear many sounds with clarity that you are not used to hearing. Ambient and environmental sounds like shuffling papers, cutlery, and dishes may be distracting at first.
  • Page 4 Congratulations on Your New HD75! Package Includes: Take a Ear Tips (5 sizes) moment to Cleaning Tool familiarize yourself HD75 with your with medium ear tip HD75. Batteries HD75 Carry Case *If you bought a pair of the HD75s see page 6.

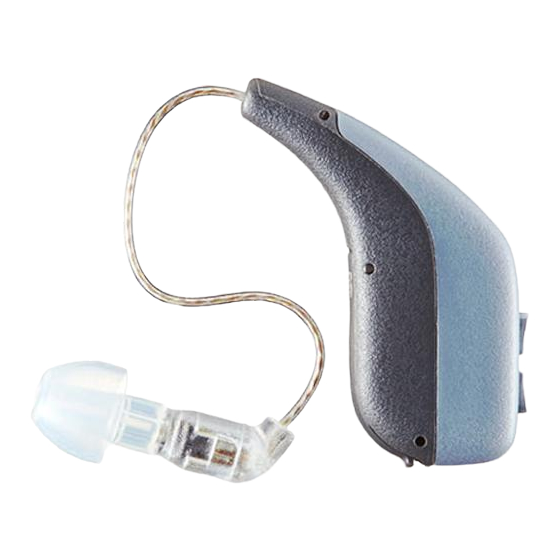

  • Page 5 HD75 Buttons & Features Buttons & Features: Your HD75 provides Flexible comfort and Microphones Length Tube control for a superior Volume Up/ Ear Tip listening Environment Modes experience. Receiver Volume Down/ Presets Battery Door...
  • Page 6 Bought a pair? If you bought a single HD75 you can wear it on either ear. If you bought a pair, look at the serial number on the battery door. One of your HD75s will have hashtags (####) after the serial number (the other HD75 will not have hashtags) to differentiate between the two.
  • Page 7 Ready out of the box Your HD75 comes pre-programmed and ready to use right out of the box. You can adjust for: • Physical Fit • Presets • Volume • Environment Modes To power on, insert battery (+ side up) as shown and close the door.
  • Page 8 Ear & Ear Tip Selection Which Ear to Fit? Which Ear Tip to Select? Your HD75 comes packaged with the medium ear tip placed on the If you only have one HD75, device. You can replace the medium ear tip with a smaller or larger one. select which ear to fit: •...
  • Page 9 Proper Placement/Insertion Wearing the HD75 When placing the HD75 in your ear, be sure to place the body of the device (the section with the buttons) behind your ear – not above the ear. Insert the Receiver with the ear tip as deep as you can while maintaining comfort (see image to the right).
  • Page 10 Removing the HD75 How to remove the HD75 To remove the HD75, simply grab the flexible tube by the ear canal and gently pull back and out to remove it from your ear. Do not forget to open the battery door when not in use to preserve the battery life.

  • Page 11: Button Function

    Button Function Volume – To increase volume, press and release the Volume Up button. The HD75 has To decrease volume, press and release the Volume Down button. When you two buttons that control different have reached upper or lower limits of volume, you will no longer hear a voice prompt. functions (Volume, Instead, you will hear beeps, which mean you have reached the limits.
  • Page 12 Customizing the HD75 Customize Customize your HD75 by either selecting one of the Presets HD75 app three Presets (see p. 13) The HD75 comes with 3 Presets. 1) Download the app onto or by downloading the The default setting is Preset 1. your smartphone HD75 app onto your The device will tell you which...
  • Page 13 Presets If you download the HD75 app and run the hearing screening program, skip this page and go to page 14 (HD75 app), if not, then continue here. A Preset is a pre-programmed frequency response to provide certain amounts of amplification at different frequencies. Your task is to select the Preset that provides you with comfortable hearing, at which point you can adjust Volume and/or Environment Modes to help you find the most clear and comfortable listening level.
  • Page 14 HD75 app Download the HD75 app onto your Smartphone. For iPhone, visit the App Store. For Android, visit Google Play. The app should recognize your HD75 without having to Pair/Connect to your phone’s Bluetooth, as long as your phone’s Bluetooth is on when powering on your HD75.
  • Page 15 Equalizer The Equalizer, available only in the HD75 app, allows you to make adjustments to either a Preset or Personal Profile (your customized profile using the Hearing Screening). You can adjust overall Volume, Treble, Mid, and Bass. Equalizer Volume – Use this to adjust overall volume, all frequencies will be adjusted simultaneously. Treble –...
  • Page 16 Environment Modes Environment Modes allow you to select a mode that fits the environment you are in. Everyday, Restaurant, and Entertainment are available to toggle through by pressing and holding the Volume Up button. Environment Modes may be selected on the device (or through the HD75 app) anytime, no matter what Preset you have chosen or if you have downloaded the HD75 app and run the Hearing Screening.

  • Page 17: Care And Cleaning

    Care & Cleaning Care & Cleaning Cleaning the HD75 NOTE: Never use water, solvents, cleaning fluids or oil to clean your Do your best to keep instrument. A cleaning tool is included with your HD75. It is recommended your hearing instrument that you use the wire loop at the end of this tool to remove any wax clean at all times.

  • Page 18: Troubleshooting

    Troubleshooting Feedback (whistling noise) is heard Sound is muffled or garbled, or No Sound • The gain is set too high. Decrease volume. If using • Check that the ear tip is mounted to nozzle the Customizer app, decrease high/mid frequencies correctly •...

  • Page 19: Important Safety Information

    Important Safety Information WARNING: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The HD75 should not be exposed to dripping or splashing.

  • Page 20: General Warnings

    General Warnings USE ON AIRCRAFTS: The wireless capabilities featured in your hearing instruments should not be used on an aircraft unless specifically permitted by the flight personnel. Your Smartphone should be put into Airplane Mode or turned off. CONSULT A PHYSICIAN: If you have or think you may have any one of the following symptoms, do not use this product until you have consulted a physician: ...

  • Page 21: Service And Warranty

    Warranty information is as follows: For the HD75-HA Hearing Aid – This limited warranty is in effect for one year from the purchase date by the end-user (the “Customer”). Sound World Solutions’ liability shall be limited to the cost of the affected part or parts. All shipping, taxes and other costs are the Customer’s sole responsibility.
  • Page 22 Exclusive Warranty: This Limited Warranty is Sound World Solutions’ exclusive warranty regarding the Product. This Warranty may not be modified, altered or amended and Sound World Solutions does not authorize and will not be bound by any other warranties or representations regarding the Product by its representatives, employees, agents or others.

  • Page 23: Limitation Of Liability

    Limitation of Liability Under no circumstances will Sound World Solutions have any liability or obligation whatsoever for consequential, indirect, incidental, special or punitive damages, including damages for loss of profit, damage to property or personal injury (including loss of consortium), whether based on contract, tort (including negligence and strict liability) or otherwise. Sound World Solutions’...

  • Page 24: Important Notice For Prospective Hearing Aid Users

    Important Notice For Prospective Hearing Aid Users Good health practice requires that a person with a hearing loss have a medical evaluation by a licensed physician (preferably a physician who specializes in diseases of the ear) before purchasing a hearing aid. Licensed physicians who specialize in diseases of the ear are often referred to as otolaryngologists, otologists or otorhynolaryngologists.
  • Page 25 Important Notice For Prospective Hearing Aid Users Federal law restricts the sale of hearing aids to those individuals who have obtained a medical evaluation from a licensed physician. Federal law permits a fully informed adult to sign a waiver statement declining the medical evaluation for religious or personal beliefs that preclude consultation with a physician.

  • Page 26: Fcc Information

    FCC Information Regulatory Notices FCC ID: 2ABRGBHA100 • IC: 11714A-BHA100 FCC Notice: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. IC Notice: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 28 Sound World Solutions 960 N. Northwest Highway Park Ridge, IL 60068-2358 (855) 792-0117 SoundWorldSolutions.com NantSound, dba SoundWorldSolutions, a member of the Nant family of companies. ©2019 Sound World Solutions 90-30038...
