Summary of Contents for WorkSmart WS-MH-PALL-006

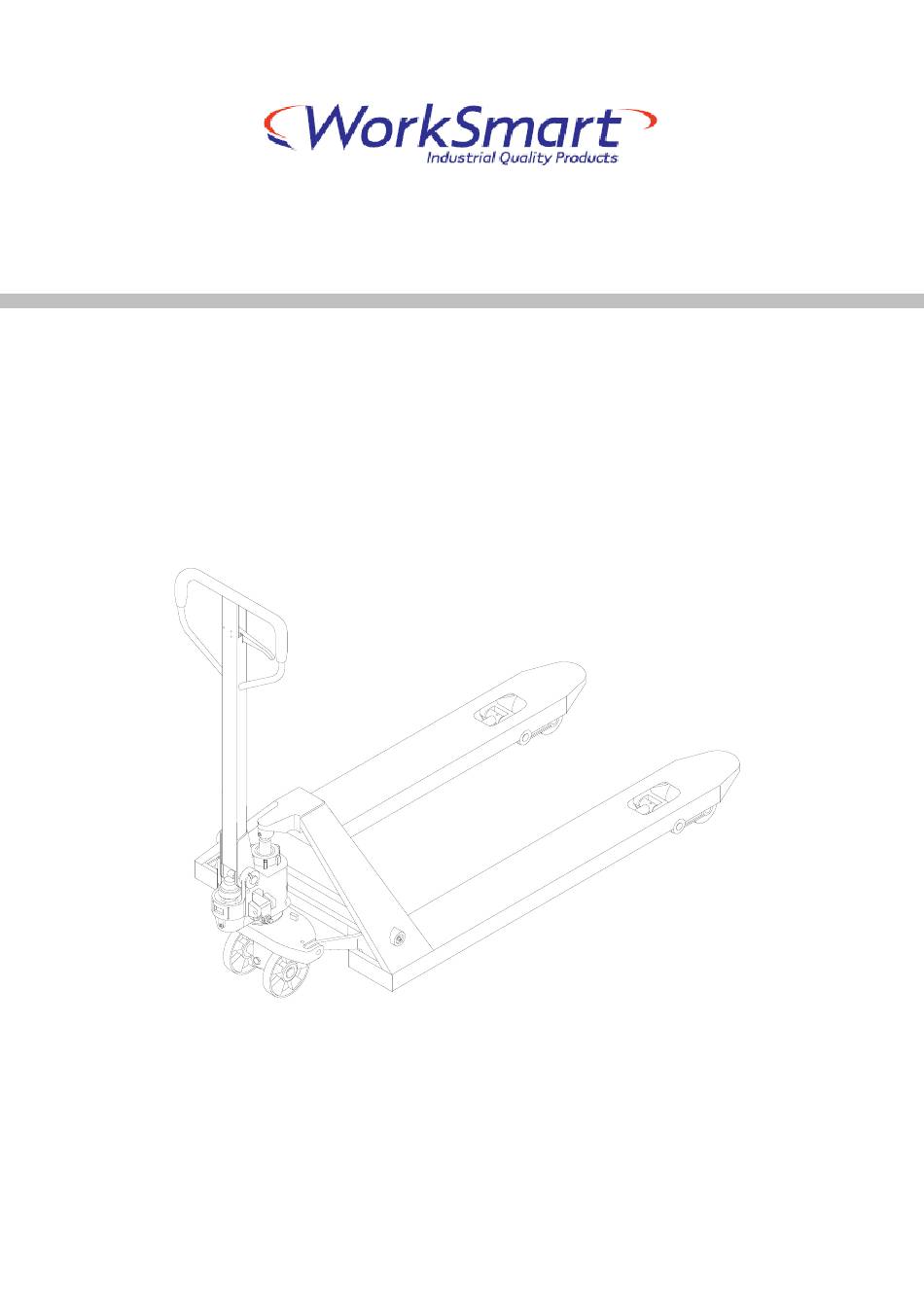

- Page 1 WS-MH-PALL-006, WS-MH-PALL-013, WS-MH-PALL-014 Hand Pallet Truck Owner’s Operational Manual...
-
Page 2: Applicable Range
1.2 The working place must be non-slip, hard and flat ground without holes or obstacles. 1.3 The ambient lighting is 50 lux at least. 2．Main parameter WS-MH-PALL-006, WS-MH-PALL-013, WS-MH-PALL-014 Capacity 2000/4400, 2500/5500, 3500/7700 （Kg/lbs）... - Page 3 4. Test of hand pallet truck 4.1 After the truck is assembled, try to pump the hand grip and operate Drop position different positions of control handle knob (10) to examine the lifting, free position and dropping and check that whether the different positions are Free position normal or not.
- Page 4 If the hand pallet truck is not used for a long time, air may get into the hydraulic system. Due to this, the trouble can be eliminated by the following method: Turn the hand knob to the drop position and pump the handle 4 to 6 times. Then release the operation knob. If necessary, the process can be repeated several times until the hand pallet truck can be operated normally.
- Page 5 The waste hydraulic oil shall be disposed in terms of relative laws. 13．Warning level 13.1 Please read the operation instruction carefully before you operate the hand pallet truck and learn about all the features of this type of hand pallet truck. 13.2 If you want to let the truck down by controlling the hand knob, you should lift the hand knob a little at first, and then let the truck down slowly.
