Allegro Industries 9860 Manual

Product Description:
Part Number:
Model:
GENERAL DESCRIPTION:
Perfect for confined space applications, it is portable, oil-less and produces no Carbon
Monoxide, oil vapors or mists. It provides clean, breathable air for up to two pressure
demand type respirators.
SPECIFICATIONS:
Motor: 1HP 1725RPM, 60Hz 115V, 10.4 Amp, Single Ø (14.8 Amp restart required)
Type: Reciprocating, straight piston, oil-less (6HCA-16T-M616X)
Tank: 12 gal. ASME coded, powder coated steel with manual drain valve
Comp Restart: 65 psi (Low press. alarm when press falls below 65 psi)
Power Cable: 8' 14/3 AWG SJTW
Plug: Integrated NEMA 5-15
Switch: Toggle with guard
Starter: Magnetic
Comp. Shutoff: 100 PSI
Performance: 10-12 CFM
Frame: Powder coated steel tube reinforced base
Plumbing: Brass, poly tubing, stainless braid hose
Couplers: 2 Hansen brass quick-connect
Relief Valve: Spring-loaded set at 125 psi
FILTRATION SYSTEM:
Regulator: High pressure, 0-160 pressure gauge, adjusting pressure knob
First Stage: 5 micron particulate filer element and automatic mechanical drain
Second Stage: 0.010 micron coalescing filter and manual drain
Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
.
DIMENSIONS:
Length
39"
7221 Orangewood Avenue Garden Grove, CA 92841
S P E C I F I C A T I O N S
COMPRESSOR
9860
PORTABLE, W/O CO MONITOR
*** If using a Generator, it must be 8,500 Watts or higher ***
Width
21"
714-899-9855

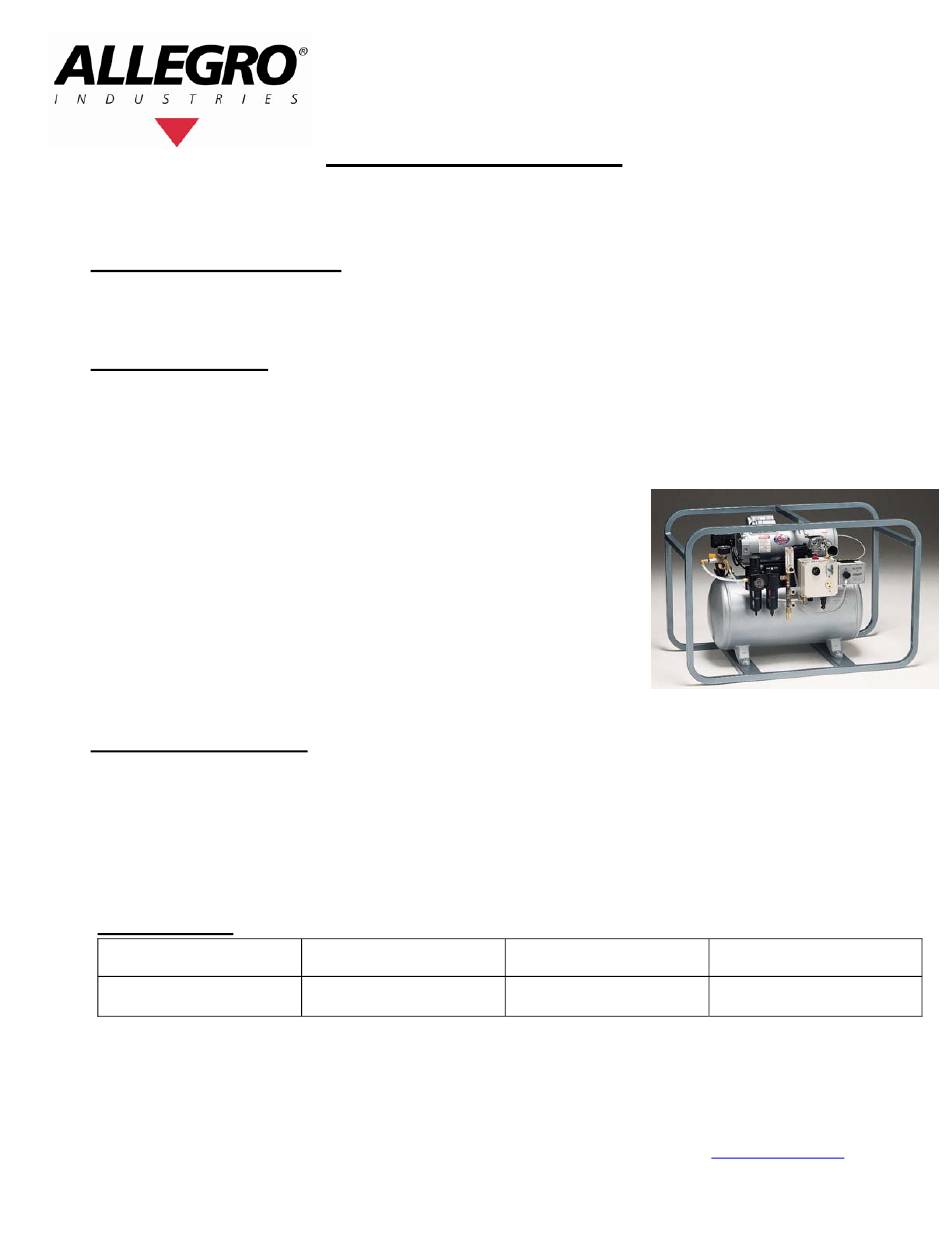

*compressor shown with CO monitor PN: 9865
Height
25"
800-622-3530 Fax: 800-362-7231
Weight
150 lbs
www.allegrosafety.com
Rev B 04-08-09
