Summary of Contents for Muller Ziegler Multi-E11-MU

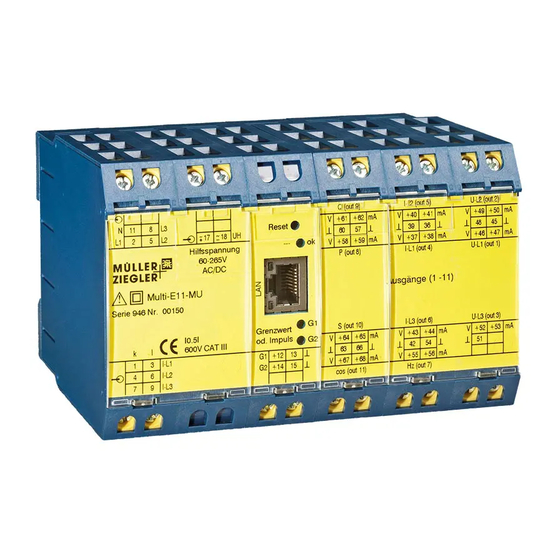

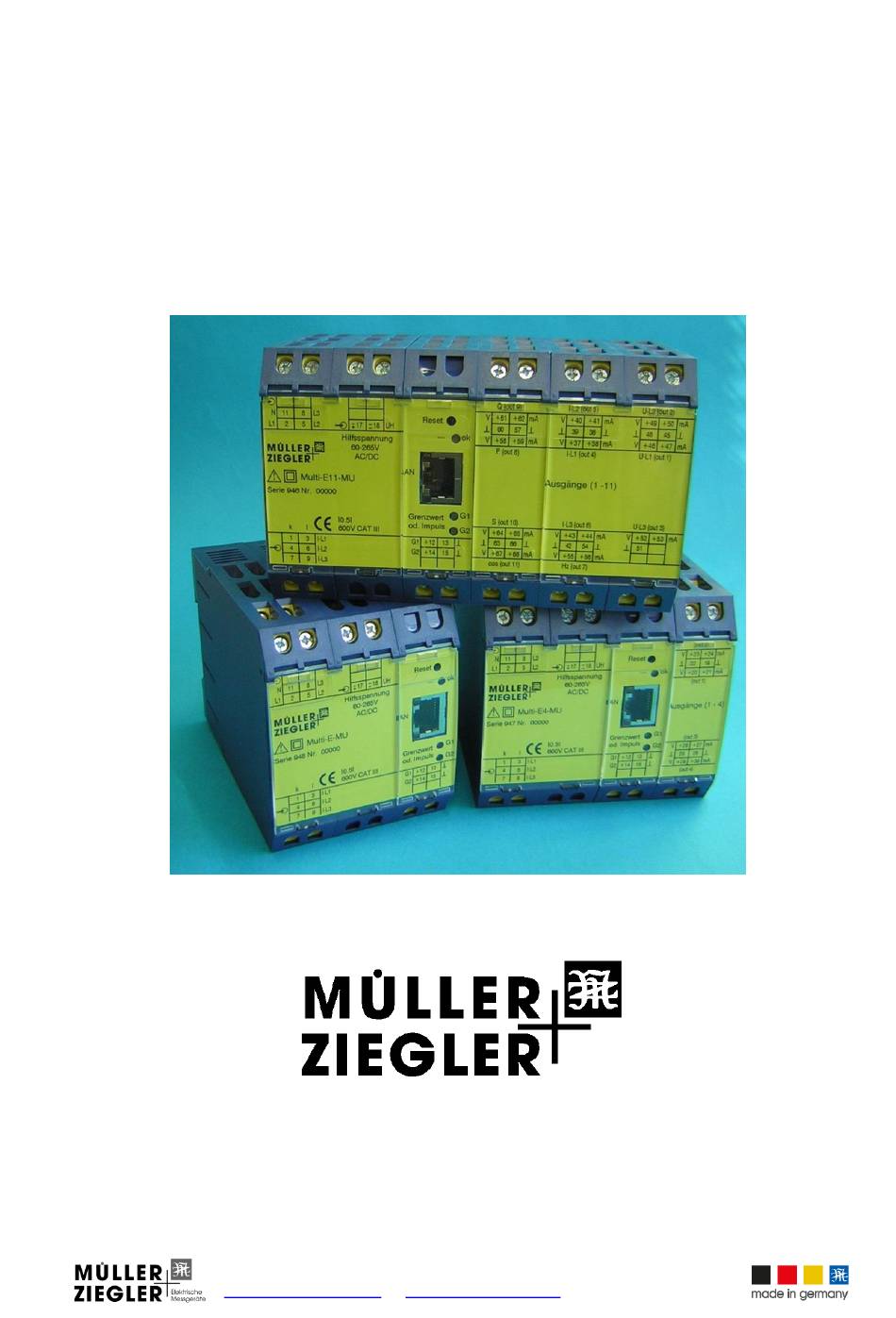

- Page 1 Guide Multi-E11/E4/E-MU Tool MÜLLER + ZIEGLER GmbH, Industriestr. 23, D-91710 Gunzenhausen Tel. +49 (0) 98 31.50 04 0, Fax +49 (0) 98 31.50 04 20 www.mueller-ziegler.de info@mueller-ziegler.de...
-
Page 2: Table Of Contents
Contents Introduction Connection of a Multi-E11/E4/E-MU to the PC Network configuration Websites Reset Software installation Starting the Program „Options“ menu „Voltage L1, L2, L3“ menu „Current L1, L2, L3“ menu „Frequency“ menu „Power / cos phi“ menu Menü „Outputs 1-4“ (only Multi-E4-MU) „File“... -
Page 3: Introduction
Connect the Multi-E11/E4/E-MU to the computer or network and connect the auxiliary supply to the measuring transducer. Open your web browser and enter the standard IP address of the Multi-E11/E4/E-MU (192.168.2.2 or e.g. "Multi-E11-MU", see rating plate) into the address bar. The following web site should appear. Website Home... -
Page 4: Websites
Use this website to adjust the Multi-E11/E4/E-MU network settings for your network. Please ask your network administrator for the required informations. Access to the network configuration and DynDNS is password protected. You may change the username and the password in the settings. The default user name is "admin" and the default password is "123multi". - Page 5 Netzwerkeinstellungen / Network configuration Use this website to adjust the Multi-E11/E4/E-MU network settings for your network. Please ask your network administrator for the required informations. Access to the network configuration and DynDNS is password protected. You may change the username and the password in the settings. The default user name is "admin" and the default password is "123multi".
- Page 6 measured value current L1 unit current L1 mA, A measured value current L2 mA, A unit current L2 measured value current L3 unit current L3 mA, A measured value frequency unit frequency measured value active power L1 unit active power L1 W, kW, MW measured value active power L2 W, kW, MW...
- Page 7 operating hours unit operating hours settings output G1 A, B, C, D, E, F, G, H, I, J, K, L, M, O, P * condition output G1 0, 1 * settings output G2 A, B, C, D, E, F, G, H, I, J, K, L, M, O, P * condition output G2 0, 1 * measured value kWh-counter / export...
-
Page 8: Reset
Website DDNS Reset To reset to the factory settings follow the steps below: 1. press the "RESET"-button for 5 seconds 2. when "ok" LED lights up release "RESET" button 3. reset to factory settings is complete. Software installation Place the program CD "Multi-E11/E4/E-MU Tool” in the CD/DVD drive of your computer. If the installation routine does not start automatically, open the file “setup.exe”... -
Page 9: Starting The Program
Starting the program Start the program from the start menu or from your desktop. The start window will appear and you can select the program’s language. “Options” menu This program menu allows you to read or send the configuration from the Multi-E11/E4/E-MU. Type in the text box "IP address or host name"... - Page 10 “Connection” Here you can select the type of connection in which the transformer should take measurements. You can select from: - alternating current - 3-/4- wire three-phase current, asymmetric load (measuring current in all 3 phases) - 3- wire three-phase current, asymmetric load (measuring current in 2 phases) - 3-/4- wire three-phase current, symmetric load (measuring current in phase L1) Important! When taking alternating current measurements, the voltage must be connected to terminals 2 and 11 and the current to terminals 1 and 3.
-
Page 11: Voltage L1, L2, L3" Menu
(between 40 – 60000 V) and input the required output values (e.g. 4 – 20 mA / 2 – 10 V). Any input values outside of these ranges are displayed as an error message. „Voltage L1, L2, L3“ menu Multi-E11-MU... -
Page 12: Current L1, L2, L3" Menu
(e.g. 4 – 20 mA / 2 – 10 V). The input current measured value can be between A and mA. Any input values outside of these ranges are displayed as an error message. „Current L1, L2, L3“ menu Multi-E11-MU... -
Page 13: Frequency" Menu
/ 2 – 10 V). The measurable frequency range is between 40 Hz and 100 Hz. A partial range, of 45 – 55 Hz for example, should be selected to achieve a higher resolution of the frequency measurements. Measurement ranges of 0 – 100 Hz can be entered. The smallest frequency measurement span is 10 Hz. „Frequency“ menu Multi-E11-MU... -
Page 14: Power / Cos Phi" Menu
Outputs 8 – 11 can be configured as unipolar outputs (e.g. 0 – 20 mA / 0 – 10 V) or as bipolar outputs (e.g. –20 – 0 – 20 mA / –10 – 0 – 10 V). At this analog outputs are the sum values of the corresponding measured values are displayed. „Power / cos phi“ menu Multi-E11-MU... -
Page 15: Menü „Outputs 1-4" (Only Multi-E4-Mu)
For Multi-E4/E-MU: This menu allows you to configure the power rating and the power factor. The power rating can be configured for energy supply or energy transfer or for both energy directions. Inputs of 0 – 50000 can be made in three measured categories (Watt, kW and MW). -
Page 16: File" Menu
"File" menu This program menu allows you to load and store multi transducer configurations. The configuration files are denoted by the file type *.mkg. The configurations of the different Multi-MU types are compatible with each other. With each configuration file is a text file stored, in which information on such as project descriptions, location, etc. are stored. -
Page 17: Read Configuration" Menu
PC. Open a TCP/IP client on your PC. The addressing of the Multi- E11/E4/E-MU is via its host name (e.g. 192.168.2.2 or e.g."Multi-E11-MU") and the port numbered 9760. Send a TCP/IP packet with the following hex values {0xBD 0x57}. The smallest interval for reading out the values should not be less than 50 ms. - Page 18 mA, A unit current L3 measured value frequency unit frequency measured value active power L1 W, kW, MW unit active power L1 measured value active power L2 W, kW, MW unit active power L2 measured value active power L3 W, kW, MW unit active power L3 measured value active power sum W, kW, MW...
-
Page 19: Measured Value Queries With The Http Protocol
DNS, for example). Open a HTTP client on your PC. The addressing of the Multi-E11/E4/E-MU is via its IP address or web address (e.g. "http://multi-e11-mu.dyndns.org/httpvalue.xml") and the request for file "httpvalue.xml". The measuring transformer's reply is a string containing the measured data. The smallest interval for reading out the values should not be less than 50 ms. - Page 20 mA, A unit current L3 measured value frequency unit frequency measured value active power L1 W, kW, MW unit active power L1 measured value active power L2 W, kW, MW unit active power L2 measured value active power L3 W, kW, MW unit active power L3 measured value active power sum W, kW, MW...
-
Page 21: Measured Value Queries With The Modbus-Tcp Protocol
condition output G1 0, 1 * settings output G2 A, B, C, D, E, F, G, H, I, J, K, L, M, O, P * condition output G2 0, 1 * measured value kWh-counter / export from serial number 0092 / 4414 / 8007 unit kWh-counter / export from serial number 0092 / 4414 / 8007 ) Limit setting: A = Active energy, reference (impulses output) at output G1 or reactive energy, inductive (impulses... - Page 22 Representation of power in the MODBUS-registers of the Multi-E11/E4/E-MU N = n x CT x VT N = power in W/var/VA n = value from MODBUS-Register CT = ratio of current transformer (if present) VT = ratio of voltage transformer present) Representation of cos phi in the MODBUS-registers of the Multi-E11/E4/E-MU...
- Page 23 0x0025 Voltage transformer, secondary 0x0026 measured value kWh-counter / export LONG from serial number 0092 / 4414 / 8007 0x0028 UINT serial number 0x0029 UINT software version 0x002A UINT X.X.x.x.x.x MAC-adress 1 0x002B UINT x.x.X.X.x.x MAC-adress 2 0x002C UINT x.x.x.x.X.X MAC-adress 3 0x002D LONG...
