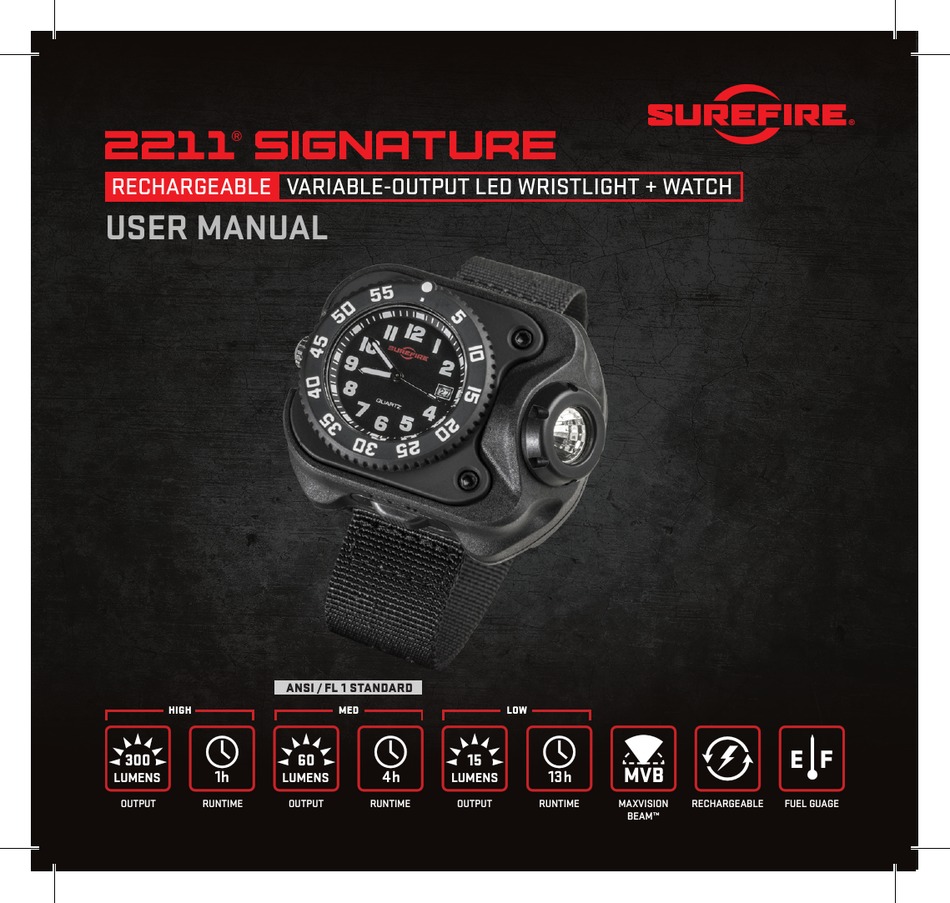

- Page 1 2211 SigNAturE ® RECHARGEABLE VARIABLE-OUTPUT LED WRISTLIGHT + WATCH USER MANUAL ANSI / FL 1 STANDARD HIGH 13 h LUMENS LUMENS LUMENS OUTPUT RUNTIME OUTPUT RUNTIME OUTPUT RUNTIME MAXVISION RECHARGEABLE FUEL GUAGE BEAM™...

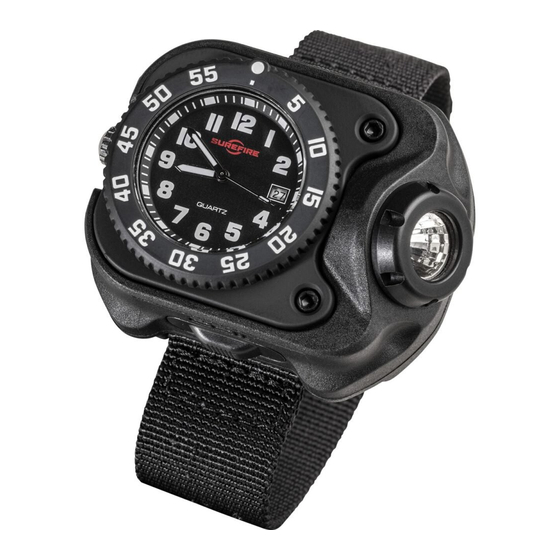

- Page 2 2211 SigNAtURE ® RECHARGEABLE VARIABLE-OUTPUT LED WRISTLIGHT + WATCH PUSHBUTTON SWITCH RUGGED POLYMER BODY INTEGRAL RECHARGEABLE MAXVISION LITHIUM-ION MULTIFACTED BATTERY REFLECTOR PUSHBUTTON SWITCH WHITE-LIGHT LED NYLON WRISTBAND Kit Contents: • 2211 Signature Wristlight • Micro-USB cable...
- Page 3 MaxVision Beam (MVB) is a ™ CHARGING PORT smooth, broad light pattern perfect for close- to mid-range tasks 2211 SIGNATURE WRISTLIGHT + WATCH OUTPUT High: 300 lumens Med: 60 lumens Low: 15 lumens RUNTIME High: 1.0 hours Med: 4.0 hours Low: 13.0 hours...
- Page 4 2. Press and release one of the pushbuttons three times until low output is activated 3. Wait 5 or more seconds, then press one of the pushbuttons once more, turning the 2211 Signature off 4. Remove 2211 Signature from its charger and test activation sequence — it should now be low-med-high-off...
- Page 5 FUEL GAUGE The 2211 Signature is equipped with an LED that lets you monitor the battery charge status, both during use and while charging. See FUEL GAUGE KEY for an explanation of the LED colors and their meanings.
- Page 6 Do not attempt to remove or replace the 2211 Signature battery. Doing so will void the warranty. If battery needs repair or replacement, contact SureFire at 714-545-9444. WATCH OPERATION & CARE Read the enclosed manual for instructions on how to operate and care for the watch movement of the 2211 Signature watch and WristLight.
- Page 7 We’ll do what it takes to keep your SureFire gear running smoothly. SureFire warrants that if you — our customer — purchase one of our products, and we determine that it is defective in material and/or workmanship during your lifetime, we will repair or replace it for free or refund your money —...
- Page 8 Revision C 2-2018 71-01-995 2211-B-BK-SF 18300 MT. BALDY CIRCLE FOUNTAIN VALLEY, CA 92708-6122 WWW.SUREFIRE.COM Patents: 9,155,168, D758,628...
Need help?
Do you have a question about the 2211 Signature and is the answer not in the manual?
Questions and answers
My watch is new, fully charged, but the quartz hand is not moving and time does not change. I adjusted the time, and pushed in the bezel to ensure that it should start operating, but the seconds hand does not move and time does not change. Serial No AO3218
The quartz hand on the Surefire 2211 Signature watch is powered by its own battery, separate from the rechargeable battery used for the WristLight. If the quartz hand is not moving despite the device being fully charged and adjusted, the possible issues could be:
1. Dead or Low Watch Battery – The watch battery may need to be replaced by a watchmaker.
2. Incorrect Adjustment – The time-setting mechanism may not be properly engaged.
3. Manufacturing Defect – A defect in the watch movement could be preventing operation.
4. Loose or Damaged Internal Component – Internal parts may be misaligned or defective.
If replacing the watch battery or readjusting the time does not resolve the issue, contacting SureFire customer service for repair or replacement is recommended.
