Summary of Contents for Blue Wave FlowXtreme FX Series

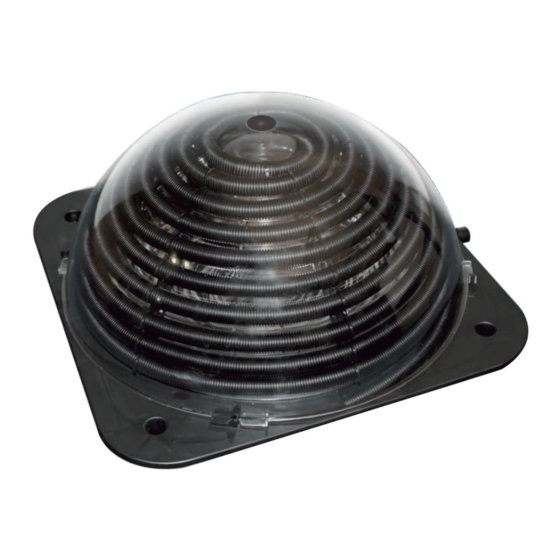

- Page 1 FX PREMIUM DOME SOLAR HEATER -24' POOL VER.0418 NS1001...
- Page 2 A. Safety instructions Read through these instructions carefully before you use the product. Caution: Failure to comply fully with our instructions for use, or safety instructions, may cause damage or injury to individuals. Please read the instruction manual and the directions shown there. ...
- Page 3 3. Tools and accessories required Tools required for assembly, but are not included in your set: Phillips screwdriver Flat head screwdriver 4. The ideal location for your solar heater Your solar heater needs to be in a location with as much sunshine as possible. ...
- Page 4 2.Connection between solar heater and pool For pools with a Ø1.25” (Ø32mm) or Ø1.5” (Ø38mm) swimming pool hose, follow the instructions below: Attach the hose to the return connector on the underside of the solar heater. Use a hose clamp to secure the hose to the return connector (see Fig. 2) ...
- Page 5 4.Connecting several heaters: If you would like to increase the heating power, you can connect several heaters together. For this you will need an additional swimming pool hose Ø1.25”-1.5” (Ø32/38mm). We recommend connecting a maximum of 2 heaters, depending on the power of your filter unit.
- Page 6 Figure 1 Figure 2 Figure 3 Figure 4 Figure 5...
- Page 7 H. NS1001 FX PREMIUM DOME SOLAR HEATER PARTS BREAKDOWN For Model Part Name BW SKU Cloth Cover NUP4070 NS1001 Clear Dome NUP4071 NS1001 Twist Pipe NUP4072 NS1001 Pipe Long Clip NUP4073 NS1001 Clear Inside Cover NUP4074 NS1001 Base NUP4075 NS1001 Return Connector NUP4076 NS1001...
