● Hanasis shall not be liable for technical or editorial errors in this document.
● This user guide is not intended for everyone. It is written for technically qualified personnel only.

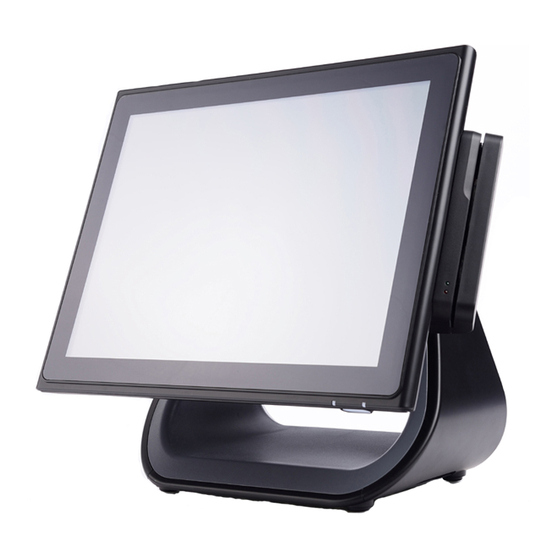

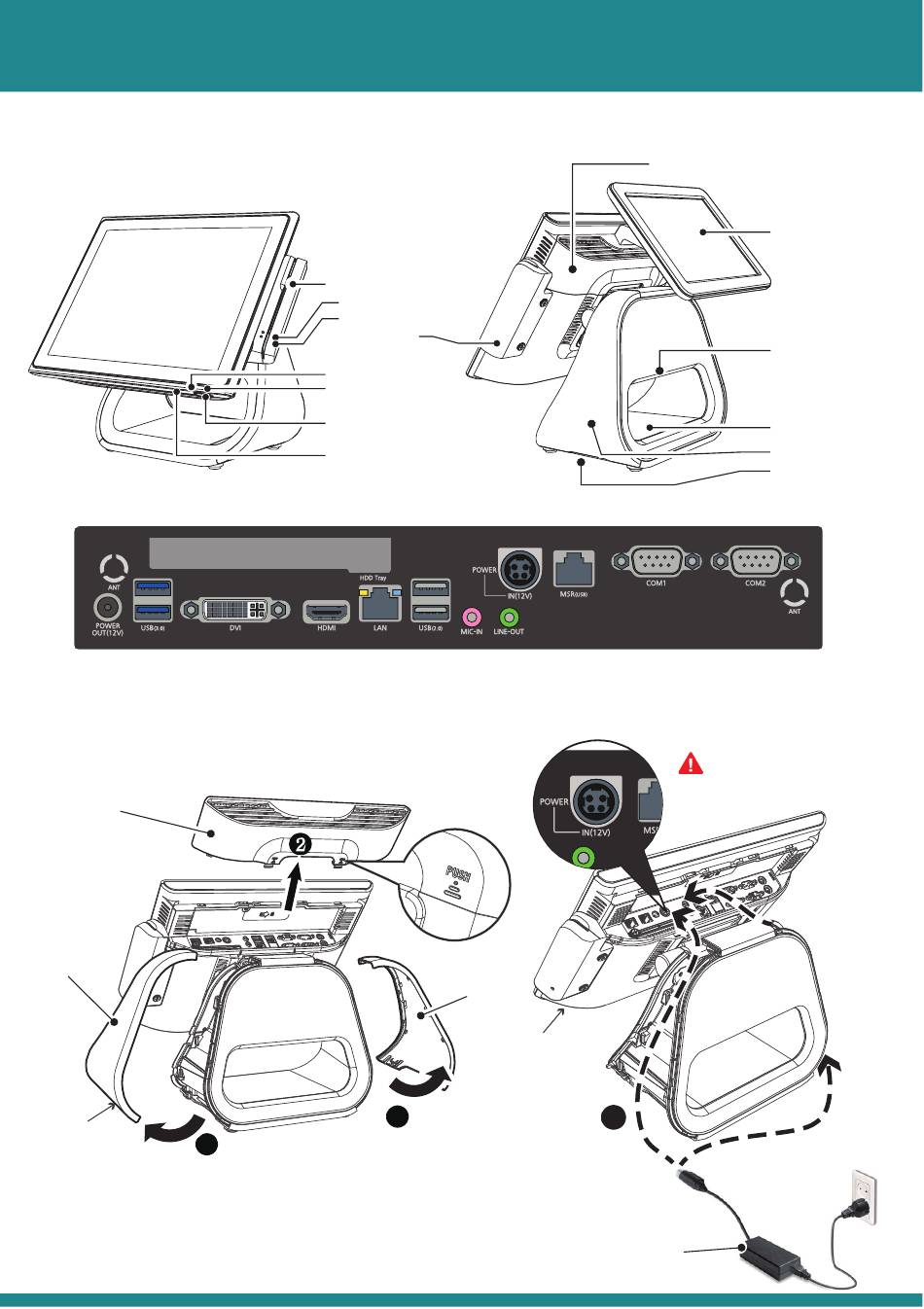

■ Parts Description
□ I/O Ports Layout
※ Product specifications are subject to change without prior notice and may vary according to region.
■ Connecting DC Power Supply Cable & Turning System On
I/O Ports Cover
Stand
Side Cover
Datachment
Handle
① Detach the Stand Side Covers as shown in the illustration.
② Detach the I/O Ports Cover.
③ Connect the Power Adapter.
④ Press the Power Button to turn on the system.
USER GUIDE
Card Reader
(MSR, SCR, iButton)
Power Lamp
Error Lamp
Reset Button
Storage Lamp
Lan Lamp
Power Button &
Power Supply Lamp
External USB (2 ports)
1
Stand
Side Cover
Power Button
1
I/O Ports
Dual (Touch) Monitor
Barcode Scanner
(Optional)
NFC Reader
(Optional)
Cable Space
Cable Vent
[ Standard ]
Please always check
the directions.
3 3
Power
Adaptor
