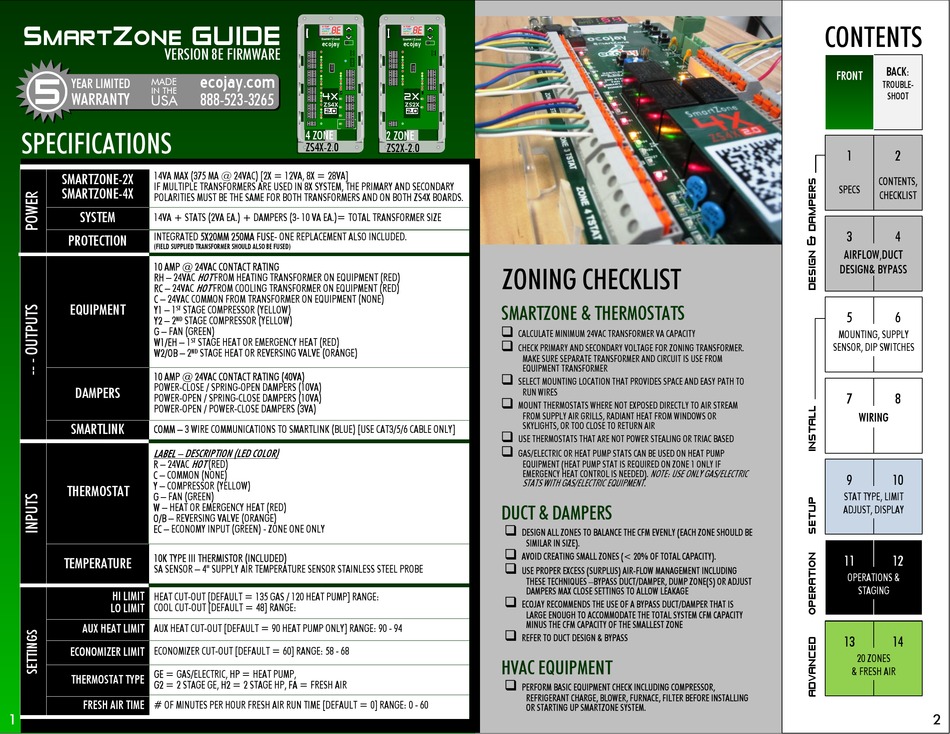

Ecojay SMARTZONE-2X Installation & Operation Manual page 2

S Z
MART ONE
VERSION 8E FIRMWARE
5
5
YEAR LIMITED MADE
YEAR LIMITED
MADE
IN THE
IN THE
WARRANTY
WARRANTY
USA
USA
SPECIFICATIONS
14VA MAX (375 MA @ 24VAC) [2X = 12VA, 8X = 28VA]
SMARTZONE-2X
IF MULTIPLE TRANSFORMERS ARE USED IN 8X SYSTEM, THE PRIMARY AND SECONDARY
SMARTZONE-4X
POLARITIES MUST BE THE SAME FOR BOTH TRANSFORMERS AND ON BOTH ZS4X BOARDS.
SYSTEM
14VA + STATS (2VA EA.) + DAMPERS (3- 10 VA EA.)= TOTAL TRANSFORMER SIZE
INTEGRATED 5X20MM 250MA FUSE- ONE REPLACEMENT ALSO INCLUDED.
PROTECTION
(FIELD SUPPLIED TRANSFORMER SHOULD ALSO BE FUSED)
10 AMP @ 24VAC CONTACT RATING
RH – 24VAC
RC – 24VAC
C – 24VAC COMMON FROM TRANSFORMER ON EQUIPMENT (NONE)
EQUIPMENT
Y1 – 1 STAGE COMPRESSOR (YELLOW)
ST
Y2 – 2 STAGE COMPRESSOR (YELLOW)
ND
G – FAN (GREEN)
W1/EH – 1
W2/OB – 2
10 AMP @ 24VAC CONTACT RATING (40VA)
POWER-CLOSE / SPRING-OPEN DAMPERS (10VA)
DAMPERS
POWER-OPEN / SPRING-CLOSE DAMPERS (10VA)
POWER-OPEN / POWER-CLOSE DAMPERS (3VA)
SMARTLINK
COMM – 3 WIRE COMMUNICATIONS TO SMARTLINK (BLUE) [USE CAT3/5/6 CABLE ONLY]
LABEL – DESCRIPTION (LED COLOR)
R – 24VAC
C – COMMON (NONE)
Y – COMPRESSOR (YELLOW)
THERMOSTAT
G – FAN (GREEN)
W – HEAT OR EMERGENCY HEAT (RED)
O/B – REVERSING VALVE (ORANGE)
EC – ECONOMY INPUT (GREEN) - ZONE ONE ONLY
10K TYPE III THERMISTOR (INCLUDED)
TEMPERATURE
SA SENSOR – 4" SUPPLY AIR TEMPERATURE SENSOR STAINLESS STEEL PROBE
HI LIMIT
HEAT CUT-OUT [DEFAULT = 135 GAS / 120 HEAT PUMP] RANGE:
LO LIMIT
COOL CUT-OUT [DEFAULT = 48] RANGE:
AUX HEAT LIMIT
AUX HEAT CUT-OUT [DEFAULT = 90 HEAT PUMP ONLY] RANGE: 90 - 94
ECONOMIZER LIMIT ECONOMIZER CUT-OUT [DEFAULT = 60] RANGE: 58 - 68
GE = GAS/ELECTRIC, HP = HEAT PUMP,
THERMOSTAT TYPE
G2 = 2 STAGE GE, H2 = 2 STAGE HP, FA = FRESH AIR
FRESH AIR TIME
# OF MINUTES PER HOUR FRESH AIR RUN TIME [DEFAULT = 0] RANGE: 0 - 60
1
GUIDE
HI TEMP 8E
LO TEMP
SUPPLY
DELAY ECO PURG
E
S Z
MART ONE
ecojay
ecojay.com
888-523-3265
888-523-3265
ecojay.com
4X
ZS4X
2.0
4 ZONE
ZS4X-2.0
HOT
FROM HEATING TRANSFORMER ON EQUIPMENT (RED)
HOT FROM COOLING TRANSFORMER ON EQUIPMENT (RED)
STAGE HEAT OR EMERGENCY HEAT (RED)
ST
STAGE HEAT OR REVERSING VALVE (ORANGE)
ND
HOT (RED)
HI TEMP 8E
LO TEMP
SUPPLY
DELAY ECO PURG
E
S Z
MART ONE
ecojay
2X
ZS2X
2.0
2 ZONE
ZS2X-2.0
ZONING CHECKLIST
SMARTZONE & THERMOSTATS
q
CALCULATE MINIMUM 24VAC TRANSFORMER VA CAPACITY
q
CHECK PRIMARY AND SECONDARY VOLTAGE FOR ZONING TRANSFORMER.
MAKE SURE SEPARATE TRANSFORMER AND CIRCUIT IS USE FROM
EQUIPMENT TRANSFORMER
q
SELECT MOUNTING LOCATION THAT PROVIDES SPACE AND EASY PATH TO
RUN WIRES
q
MOUNT THERMOSTATS WHERE NOT EXPOSED DIRECTLY TO AIR STREAM
FROM SUPPLY AIR GRILLS, RADIANT HEAT FROM WINDOWS OR
SKYLIGHTS, OR TOO CLOSE TO RETURN AIR
q
USE THERMOSTATS THAT ARE NOT POWER STEALING OR TRIAC BASED
q
GAS/ELECTRIC OR HEAT PUMP STATS CAN BE USED ON HEAT PUMP
EQUIPMENT (HEAT PUMP STAT IS REQUIRED ON ZONE 1 ONLY IF
EMERGENCY HEAT CONTROL IS NEEDED).
STATS WITH GAS/ELECTRIC EQUIPMENT.
DUCT & DAMPERS
q
DESIGN ALL ZONES TO BALANCE THE CFM EVENLY (EACH ZONE SHOULD BE
SIMILAR IN SIZE).
q
AVOID CREATING SMALL ZONES (< 20% OF TOTAL CAPACITY).
q
USE PROPER EXCESS (SURPLUS) AIR-FLOW MANAGEMENT INCLUDING
THESE TECHNIQUES –BYPASS DUCT/DAMPER, DUMP ZONE(S) OR ADJUST
DAMPERS MAX CLOSE SETTINGS TO ALLOW LEAKAGE
q
ECOJAY RECOMMENDS THE USE OF A BYPASS DUCT/DAMPER THAT IS
LARGE ENOUGH TO ACCOMMODATE THE TOTAL SYSTEM CFM CAPACITY
MINUS THE CFM CAPACITY OF THE SMALLEST ZONE
q
REFER TO DUCT DESIGN & BYPASS
HVAC EQUIPMENT
q
PERFORM BASIC EQUIPMENT CHECK INCLUDING COMPRESSOR,
REFRIGERANT CHARGE, BLOWER, FURNACE, FILTER BEFORE INSTALLING
OR STARTING UP SMARTZONE SYSTEM.
CONTENTS
NOTE: USE ONLY GAS/ELECTRIC
BACK:
FRONT
TROUBLE-
SHOOT
1 2
CONTENTS,
SPECS
CHECKLIST
3 4
AIRFLOW,DUCT
DESIGN& BYPASS
5 6
MOUNTING, SUPPLY
SENSOR, DIP SWITCHES
7 8
WIRING
9 10
STAT TYPE, LIMIT
ADJUST, DISPLAY
11 12
OPERATIONS &
STAGING
13 14
20 ZONES
& FRESH AIR
2
