Koganei DTY-EPU Series Manual

Electrostatic potential sensor

Hide thumbs

page of 16

/ 16
Bookmarks

Quick Links

Download this manual

ISO 9001 / ISO 14001

EP Sensor

Environmentally friendly

RoHS Compliant Product

Optimum sensor for electrostatic

monitoring of automated lines arrives!

Optimum sensor for electrostatic

monitoring of automated lines arrives!

Catalog No.BK-R0002

Need help?

Do you have a question about the DTY-EPU Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Koganei DTY-EPU Series

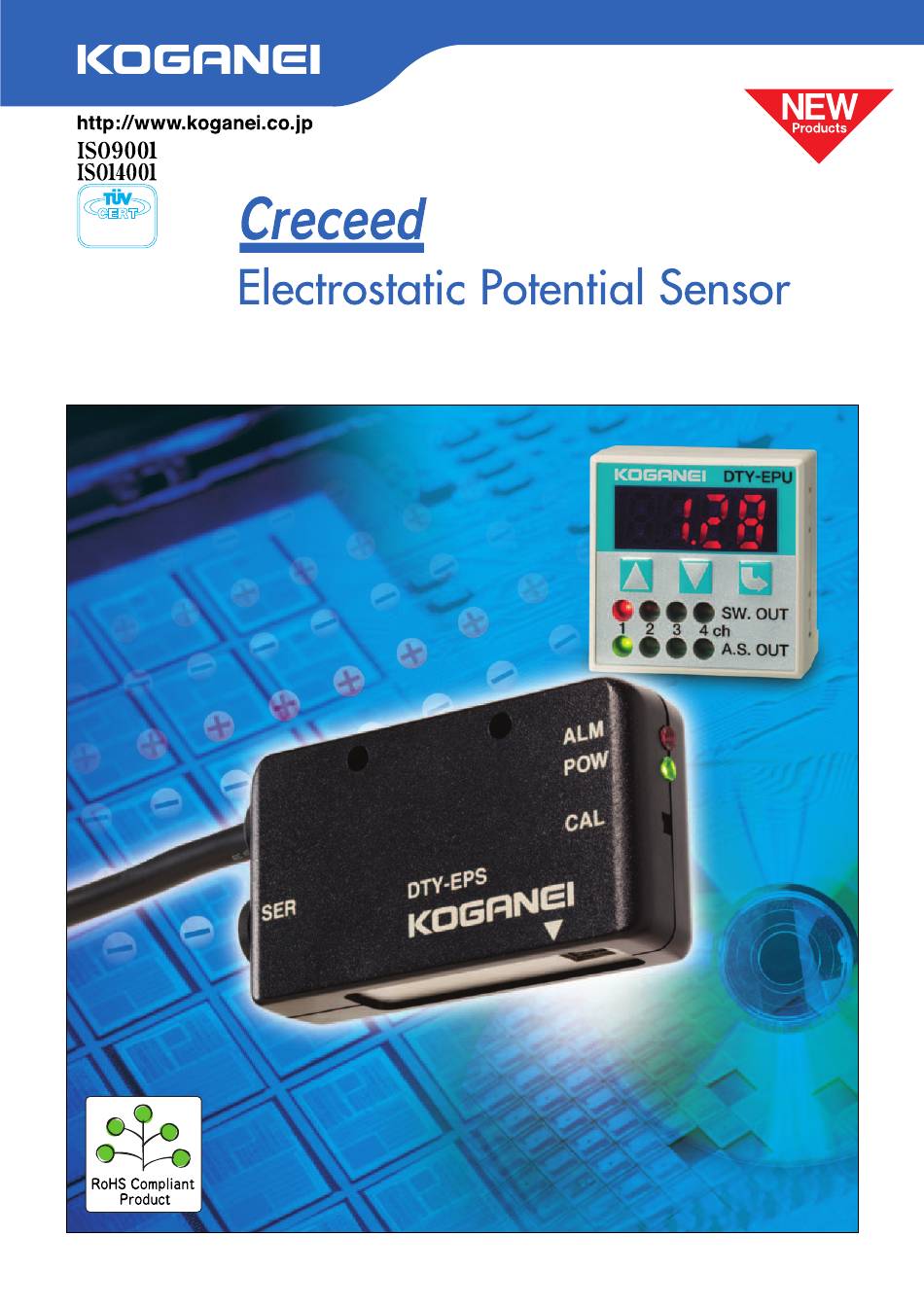

Page 1 Catalog No.BK-R0002 ISO 9001 / ISO 14001 EP Sensor Environmentally friendly Environmentally friendly RoHS Compliant Product RoHS Compliant Product Optimum sensor for electrostatic Optimum sensor for electrostatic monitoring of automated lines arrives! monitoring of automated lines arrives!
Page 2 RoHS Environmentally friendly compliant product! Optimum sensor for electrostatic monitoring Optimum sensor for electrostatic monitoring on production line arrives! on production line arrives! Offers electrostatic measurement and constant monitoring on production line difficult to handle with handy-type measuring instruments. All-in-one configuration achieves lower costs and total space reduction. EP Sensor Enables electrostatic control on production line Constant monitoring of invisible static electricity can be performed...
Page 3 Use the support software for setting, display, and control. ●Electric potential measurement of wrapping films, etc. Download the software from the Koganei website. Major characteristics • Can perform displays of EP Sensor settings and ●Electric potential measurement measurement data. of glass substrates, etc.
Page 4 Connection Patterns q Simple configuration Control circuit EP Sensor Judgment output •Lamp •Buzzer •PLC, etc. DTY-EPP-CA-3L RS232C Terminal PC support software for settings (use only for settings) w EP Monitor connection (with setting from EP Monitor) Sensor setting communication cable Cable (with communication cable) EP Sensor EP Monitor...
Page 5 Safety Precautions (EP Sensor) Always read these precautions carefully before use. Before selecting and using the product, please read all the Safety Precautions carefully to ensure proper product use. The Safety Precautions shown below are to help you use the product safely and correctly, and to prevent injury or damage to you, other people, and assets beforehand.
Page 6 (relays, solenoids, metal chips, etc.) near the sensor, or between the sensor and the item being Koganei cannot be responsible if these items are not properly observed. measured, could affect the measurement value. Zero calibration Handling Instructions and Precautions 1.
Page 7 Mounting and wiring Sensor and connector connection procedure Attaching and removing of the EP Sensor, and the power supply, switch, and communication cable Connect the EP Sensor DTY-EPS and the mini clamp connector. Follow the procedure below to perform the connections. EP Sensor DTY-EPS 1.
Page 8 EP Sensor Specifications Model DTY-EPS DTY-EPS-10L Item Voltage 24VDC±10% Current Max. 50mA Measurement range 5〜50mm [0.20〜1.97in.] Accuracy ±5%rdg ±2dig Method NPN transistor open collector Judgment output Applied voltage 30VDC or less Sink current 20mA or less Method NPN transistor open collector Sensor abnormality output Applied voltage 30VDC or less...
Page 9 EP Monitor Specifications Model DTY-EPU Item Voltage 24VDC±10% Current 100mA MAX Note 1 Number of inputs 4 channels Sensor input Voltage range 1 〜 5VDC Maximum applied voltage 5.3V Number of outputs Method NPN open collector Switch output Applied voltage 30VDC MAX Current 50mA MAX...
Page 10 Order Codes ■ EP Sensor Cable length EP Sensor series Blank: 3m [9.84ft.] 10L: 10m [32.8ft.] Note: The EP Sensor is provided with an L shaped bracket (with 2 mounting screws) for mounting. Additional parts (to be ordered separately) Component bracket Monitor plate Communication cable for EP Sensor (3m) ●...
Page 11 Dimensions (mm) EP Sensor ＋0.2 2- φ3.2 0 61.2 ● DTY-EPS-□ ±0.15 0.1 (Ground washer) 19.6 Ground washer Cable length 3m or 10m (Ground terminal) LED (red) DTY-EPS LED (green) 24V50mA Detecting portion 12.6 Bracket (supplied) M3×0.5 length 18 mounting screw, plain washer (with 2 pcs. each) 2- φ3.5 Ground terminal Component bracket...
Page 12 Dimensions (mm) EP Monitor ● DTY-EPU-□ Mini clamp wire mount plug (4 pcs. supplied) Wiring label enlarged view Pin 1 2 1 3 4 12.4 c c c c SENSOR 1 : ＋V 4 3 2 1 2 : 1−5V 11 10 3 : 0V 4 : PIN ００ 14.9 4-digit LED pressure display Wiring label Mode button Connctors for 4-sensor heads...
Page 13 Panel Mounting Parts Installed Diagram ● DTY-EPU-P (Panel mounting parts installed diagram) ● Machining dimensions for the EP Monitor mounting hole 55.4 ＋ 0.6 32.7 DTY-EPU Notes: 1. Use a mounting panel thickness of 1 to 3.2mm. S.W.OUT 2. If mounting in adjacent positions, make the interval larger than A. S. OUT the value shown in the figure above.
Page 14 MEMO...
Page 15 • KOGANEI CORP. warrants its products to be free from defects KOGANEI CORP. shall in no way be liable or responsible for injuries or damage to persons or property arising out of the in material and workmanship subject to the following provisions.
Page 16 Static Electricity Removing Unit IONIZER Catalog No.BK-R0001 URL http://www.koganei.co.jp E-mail: overseas@koganei.co.jp OVERSEAS DEPARTMENT 3-11-28, Midori-cho, Koganei City, Tokyo 184-8533, Japan Tel: 042-383-7271 Fax: 042-383-7276 MICHIGAN REPRESENTATIVE OFFICE 5070 East N Ave., Kalamazoo, Michigan, 49048, U.S.A. Tel: 269-388-8769 Fax: 269-388-8771 SHANGHAI KOGANEI INTERNATIONAL TRADING CORPORATION Room 2606-2607, Tongda Venture Building No.1, Lane 600,Tianshan Road, Shanghai, 200051, China...
