INSTRUCTIONS
Operation/Maintenance

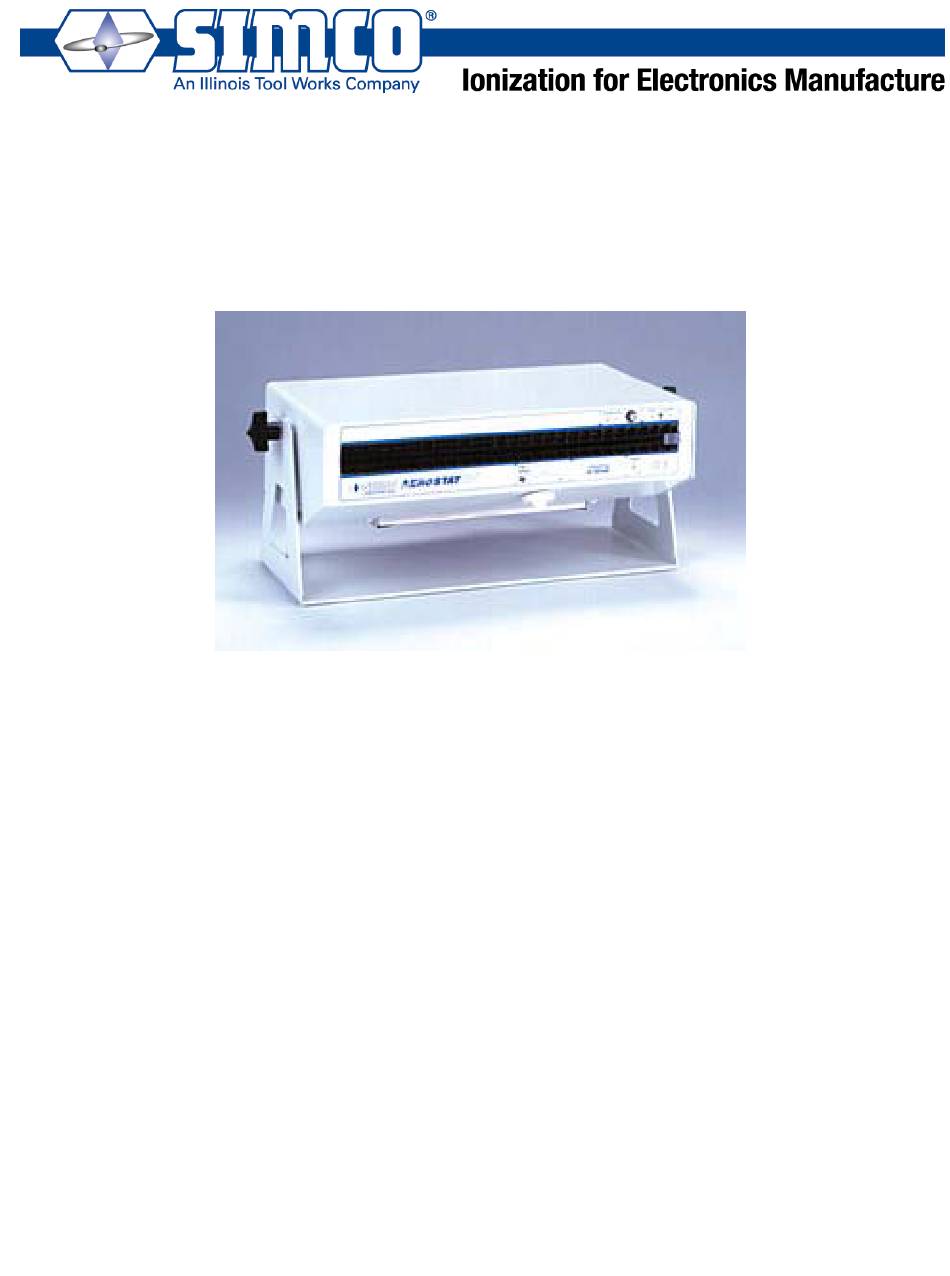

Aerostat XC™ Ionizing Air Blower
SIMCO's Aerostat XC was designed for use with sensitive electronic components where
electrostatic discharge (ESD) is a problem. It can be applied in inspection, testing, and
assembly environments. The Aerostat XC can also be used where static electricity causes
problems such as attraction of dirt to product, misalignment of small parts due to electrostatic
"jumping", and undesirable adhesion of plastic films due to electrostatic charge.
SECTION 1
Description
SECTION 2
Features
SECTION 3
Specifications
SECTION 4
Safety
SECTION 5
Installation
SECTION 6
Operation
SECTION 7
Maintenance
SECTION 8
Replacement Parts
SECTION 9
Warranty
2257 North Penn Road
Hatfield, PA 19440
(215) 997-0590
(800) 538-0750
Fax: (215) 997-3450
Publication 5100550 rev F
February, 2002
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Illinois Tool Works Simco Aerostat XC
Summary of Contents for Illinois Tool Works Simco Aerostat XC
- Page 1 INSTRUCTIONS 2257 North Penn Road Hatfield, PA 19440 Operation/Maintenance (215) 997-0590 (800) 538-0750 Aerostat XC™ Ionizing Air Blower Fax: (215) 997-3450 Publication 5100550 rev F February, 2002 SIMCO’s Aerostat XC was designed for use with sensitive electronic components where electrostatic discharge (ESD) is a problem. It can be applied in inspection, testing, and assembly environments.
-
Page 2: Section 1 Description
SECTION 1 Description The Aerostat XC ionized air blower produces an air flow that is rich in positive and negative ions. Directing the air flow on an object that has a static charge will neutralize the charge. If the object has a positive static charge, it will draw negative ions from the air flow. -
Page 3: Section 3 Specifications
SECTION 3 Specifications Unit Part Number: 4002612 4002667 Line Voltage: 120 VAC, 60 Hz. 220-230 VAC, 50 Hz Current Draw: Max. 3.6 Amp* 1.8 Amp* Min. 0.6 Amp 0.3 Amp *Heater on Air Volume Output: Fan Speed Flow 70 CFM Medium 95 CFM High... - Page 4 (39.1 cm W x 11.4 cm H x 20.6 cm D) Bench Stand Feet: Nonconductive, Nonstaining Polymer Optional Air Filter: 30 PPI Open Cell Polyurethane Foam Ion Balance (offset voltage): 0V + 5 Ion Output (discharge time): Fan Speed - High 1 ft.
-
Page 5: Section 5 Installation
4.6 A factory-qualified service technician must perform component service and repairs. Please contact SIMCO Customer Service for information. SECTION 5 Installation Carefully remove the equipment from the carton and inspect contents. Empty the carton to insure that small parts are not discarded. If any damage has occurred during shipment, notify the local carrier at once. -
Page 6: Section 6 Operation
SECTION 6 Operation Activate the XC by setting the POWER switch to the ON position. The ionization indicator will illuminate to indicate the presence of ionized air. Set the air flow as desired by adjusting the FAN SPEED to low ( I ), medium ( I I ), or high ( I I I ). If warm air is desired for operator comfort, set the HEATER switch to the ON (I) position. - Page 7 SECTION 7 Maintenance The Aerostat XC has been designed with low maintenance in mind. The only regular maintenance suggested is emitter point cleaning, ion balance checking and ion output checking. Emitter point cleaning takes only seconds with SIMCO’s patented point cleaner.
- Page 8 Do not try to verify operation of the unit by drawing a spark from an ion emitter point. The design of the balancing circuit makes the “spark test” inconclusive. Sustained grounding of the ion emitters may damage the balancing circuit. 7.5 Ion Balance Check To test the unit for ion balance, the use of a charge plate monitor such as the SIMCO EA-4 is recommended.
-
Page 9: Section 8 Replacement Parts
SECTION 8 Replacement Parts Item Part Number Description 4750557 Chassis 4340350 5050284 3-Speed Blower, 120 V 5050294 3-Speed Blower, 230 V 4630136 HV Transformer with Leads, 120 V 4630141 HV ransformer with Leads, 230 V 4103939 Ionizer Duct Assembly, 120 V Duct Assembly includes: 4104036 Ionizer Duct Assembly, 230 V heater, ionizer, and brush... -
Page 10: Section 9 Warranty
SECTION 9 Warranty SIMCO warrants its products to be free of defects in components, workmanship, or materials for a period of one year from date of purchase. This warranty does not apply to any physical or electrical damage caused by misuse, abuse or negligence (such as any modifications made to the unit or service work done by any other than SIMCO authorized technicians).
