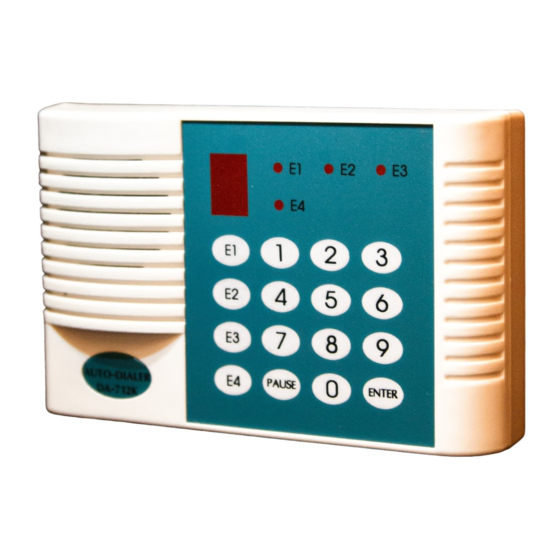

Voice Dialer Alarm System Installation Manual
（DA-712K）
FEATURES:
1. stores 4 sets of telephone number and 4-digit secret cords . each telephone
number has a 16-digit capacity .
2. Built-in voice I.C. records your voice message for 16 seconds.
3. Your voice message will be kept in memory when the power failure.
4. Equipped with 7-segment LED display, 4 LED indicators and echo sound to
make operation easier.
5. Check function to make sure 100% input accuracy for telephone, and
recording voice.
6. Dial tone detection. If the input terminal of auto dialer was triggered, it will
check the dial tone first, then dial out,
8. Busy tone detection. If dial out the line is busy, it will promptly quit and jump
to dial next telephone number.
9. Direct key-in 4-digit secret code to stop the auto dialer dial out.

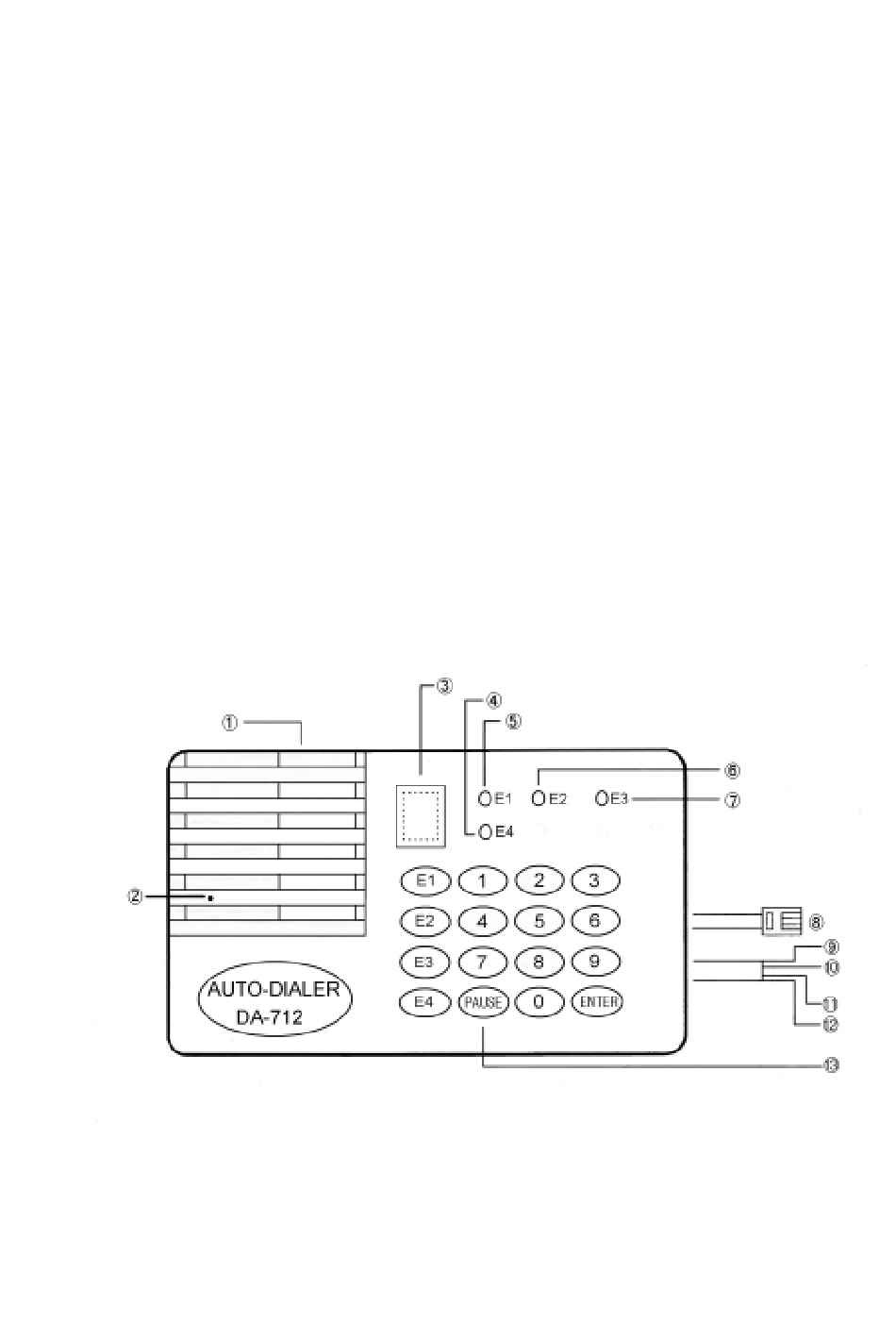

FRONT OUTWARD APPEARANCE
INSTALLATION
1. Speaker
2. Microphone
3. 7-segments LED display : It will show the number when you key-in.
1
Advertisement
Table of Contents
Summary of Contents for PROSER DA-712K
- Page 1 Voice Dialer Alarm System Installation Manual （DA-712K） FEATURES: 1. stores 4 sets of telephone number and 4-digit secret cords . each telephone number has a 16-digit capacity . 2. Built-in voice I.C. records your voice message for 16 seconds. 3. Your voice message will be kept in memory when the power failure.
- Page 2 4. E4 LED display : When you program E4 telephone number 5. E1 LED display : When you program E1 telephone number 6. E2 LED display : When you program E2 telephone number 7. E3 LED display : When you program E3 telephone number 8.
- Page 3 1、PROGRAM THE TELEPHONE NUMBER ( E1- E4 ) : Store the first set of the telephone number as 88612351 telephone number TEL 1 ENTER Store the second set of the telephone number as 0932158612 telephone number TEL 2 ENTER ※ the other three, four, establish way are the same store the first set of the telephone number as 88612351 ext.1 2 telephone number TEL 1...
- Page 4 E1 to E4.（It will jump by blank have not key-in number） Stop dialing out Remote stop dialing : (DA-712K increases the function) Asking for help from remote telephone key-in「＃」word can stop each re-store Telephone dialing or key-in the 「password」to stop all re-store telephone dialing .
- Page 5 SPECIFICATION Operating voltage DC 9V ~ 15V Operating current 80mA(max.) at DC 12V Standby current 15 mA (12V) Dialing mode Tone / pulse switch M/B ratio 33.3：66.7 Trigger type N.C., N.O (dry contact), or voltage acceptable Telephone number for programming 4 sets of telephone number with 4-digit secret code Message recording time 16 seconds Dimensions...
