Summary of Contents for TREND T60

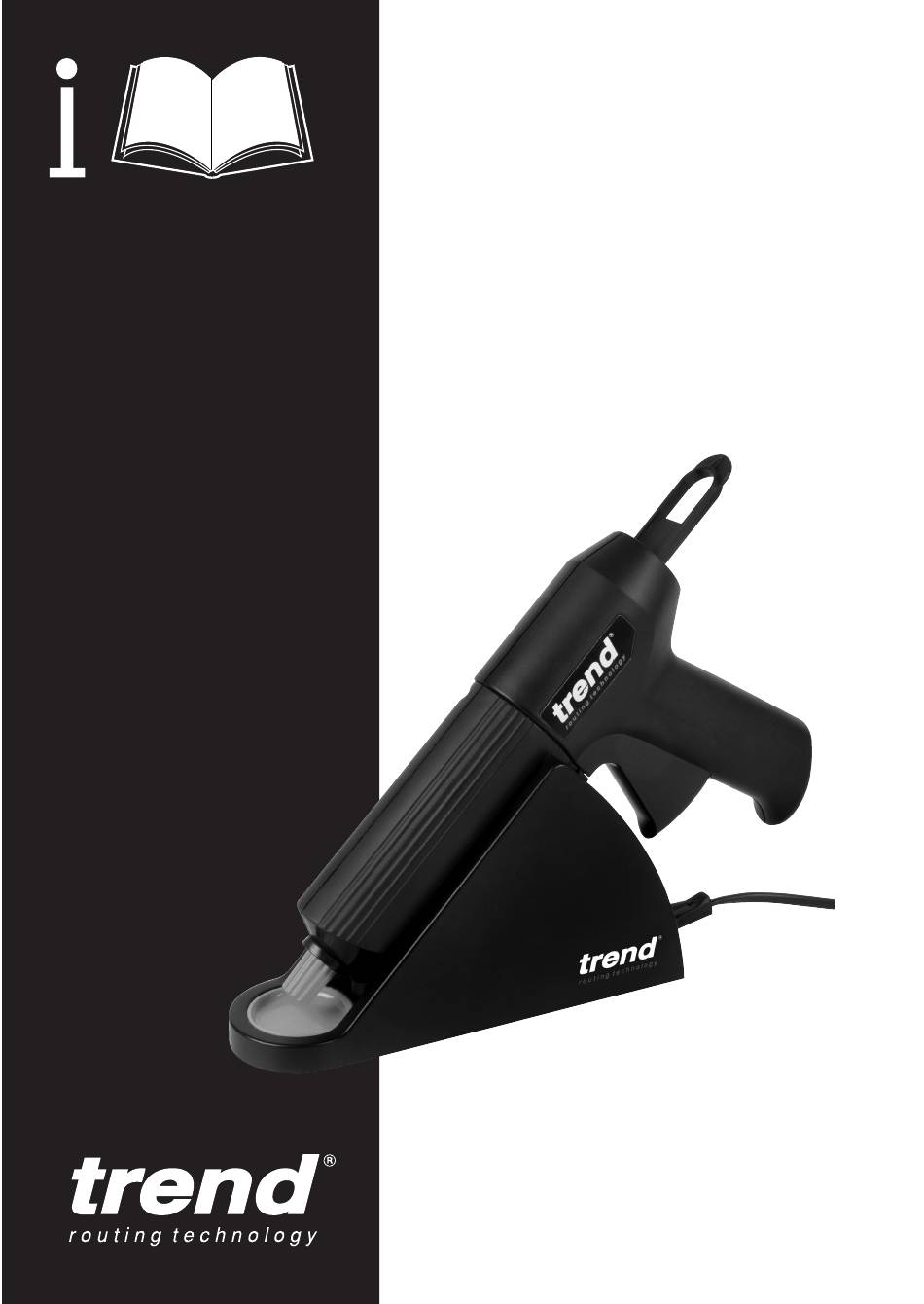

  • Page 1 GLUE...

  • Page 2: Table Of Contents

    Dear Customer INTRODUCTION Thank you for purchasing this Trend product, The T60 hot melt glue gun is a single component we hope you enjoy many years of creative and cartridge glue gun for hot melt PUR productive use. (polyurethane) adhesive. This adhesive features...

  • Page 3: Conformity Declaration

    CONFORMITY TECHNICAL DATA DECLARATION Voltage: 220-240V 50 Hz This product complies with European Directive Ampage: 2.3A on Low Voltage Appliances 73/23/EEC and the Heating output: 14W, starting EMC Directive 89/36/EEC. phase 500W Heat up time: 10-13 minutes Adhesive working temperature: 100-140 ºC Time allowed for alignment: 60 ±...

  • Page 4: Safety

    Practice and Guidance Document and any 8. Perfect operation will only be guaranteed by amendments. using genuine Trend supplied Steinel hot melt Users must be competent with woodworking adhesive. equipment before using our products. IMPORTANT NOTE: Residual Risk.

  • Page 5: Electrical Safety

    Using an Extension Cable operated from a 220 volt supply. s If an extension cable is required, use an The T60 is double insulated therefore no approved triple core extension cable suitable earth wire is required. for the power input of this tool (see technical data).

  • Page 6: Items Enclosed

    ITEMS ENCLOSED DESCRIPTION OF PARTS A. Feed rod 1 x Hot melt glue gun (handle and heating head) B. Handle 1 x Base station C. Cartridge cap storing compartment 1 x Cord with plug D. Trigger 1 x Feed rod E.

  • Page 7: Assembly & Operation

    ASSEMBLY & OPERATION Getting Started 4. Insert the sealed cartridge into the heating 1. Detach heating head from handle. To do this, head. release bayonet catch by pulling trigger and then turning heating head. 5. Re-assemble heating head and handle (turn bayonet catch so that it clips into place).

  • Page 8: Mounting Base Station In A Fixed Position

    7. Insert gun into contact slots on base station. Mounting Base Station in a Fixed The glue will now start to heat up. Position The red indicator will illuminate whilst the If you wish, you can mount the base station on a glue is warming up (approx.

  • Page 9: Tips On Achieving Good Gluing Results

    Tips on Achieving Good Gluing Results s Perfect operation can only be ensured when using genuine Trend supplied Steinel glue cartridges. s The materials to be glued should be free of grease, dry and absolutely clean (clean with a paper tissue, for example). Important: do not use any solvents or similar liquid cleaners.

  • Page 10: Final Strength Of Pur Adhesive Table

    Final Strength of PUR Adhesive PUR Bond Initial Strength Final Strength Final Strength after 5 minutes after 24 hours after 5 days Wood / Wood Wood / Metal Wood / Ceramics Wood / Leather Wood / Textiles Wood / Plastic Wood / Glass Metal / Metal Metal / Ceramics...

  • Page 11: Troubleshooting

    TROUBLE SHOOTING Fault Cause Remedy s Unit not warming up. s No power supply. s Check power cord. s No electrical contact between s Insert heating head into heating head and base station. contact slot on base station. s Electrical contacts on heating s Clean electrical contacts on head dirty or soiled with glue.

  • Page 12: Maintenance & Care

    Do not use water or any Please call Trend Customer Services for advice cleaning solutions. as to how to dispose of unwanted Trend electrical products in an environmentally safe way or visit www.trend-uk.com Disconnect the charger from the Business User power supply before cleaning.

  • Page 13: Spare Parts

    T60 - SPARE PARTS LIST V1.0 03/2009 Desc. Ref. Handle C/W Trigger WP-T60/01 Heat Head WP-T60/02 Feed Rod WP-T60/03 Base Station WP-T60/04 Cable 2 Core with Plug 230V UK WP-T60/05 Cable 2 Core with Plug 230V EURO WP-T60EURO/05 PUR Glue Cartridge 50g UK (1 off)
  • Page 14 RECYCLABLE © Copyright Trend 2009. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss.
