Installation Cause
Be sure to carefully read and understand the instructions before attempting
to install the Amplifier.

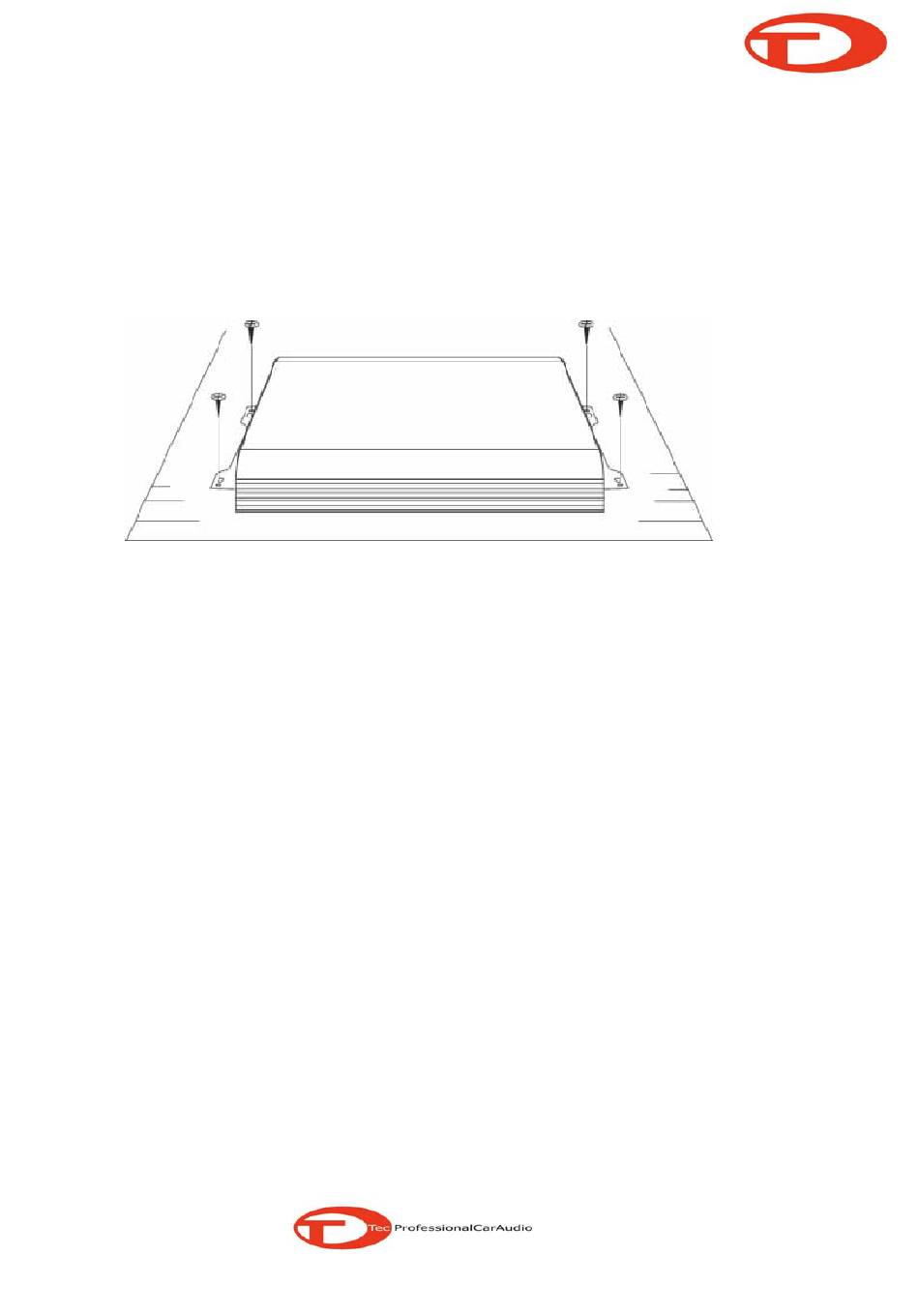

1. Mounting Location
The mouting location and position of your amplifier will have a great effect on its ability to dissipate
the heat generated during normal operation. The design of our aluminum heatsink serves to
easily dissipate the heat generated over a wide range of operationg conditions. However, to
maximize the performance of your amplifier, care should be taken to ensure adequate ventilation.
2. Unit Installation
This section focuses on some of the vehicle considerations for installing your new amplifier.
Checking your battery and present sound system as well as pre-planning your system layout and
best wiring routes will save installation time. When deciding how to lay out your new system, be
sure that each component will be easily accessible for making adjustments.
Before beginning any installation, be sure to follow these simple rules :
1) Be sure to carefully read and underatand the instruction before attempting to install the
amplifier.
2) For safety, disconnect the negative lead from the battery prior to beginning the installation.
3) For easier assembly, we suggest you run all wires prior to mounting your amplifier in place.
4) Route all of the RCA cables close together and away from any high current wires.
5) Use high quality connectors for a reliable installation and to minimize signal or power loss.
6) Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or
hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
7) Never run wires underneath the vehicle. Running the wires inside the vehicle provides the
best protection.
8) Avoid running wires over or through sharp edges. Use rubber or plastic gromments to protect
any wires routed through metal, especially the firewall.
9) ALWAYS protect the battery and electrical system from damage with proper fusing. Install
the appropriate fuseholder and fuse on the +12V power wire within 18" (45.7cm) of the
battery terminal.
10) When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a
good, clean ground connection. Grounding connections should be as short as possible and
always be connected to metal that is welded to the main body, or chassis, of the vehicle.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TEC TA Series

  • Page 1 Installation Cause Be sure to carefully read and understand the instructions before attempting to install the Amplifier. 1. Mounting Location The mouting location and position of your amplifier will have a great effect on its ability to dissipate the heat generated during normal operation. The design of our aluminum heatsink serves to easily dissipate the heat generated over a wide range of operationg conditions.
  • Page 2 TA-602 2 Channel Feature Guide On pruchasing a our product. This innovative line of mobile audio product has been designed with performance in mind. To get the best results from your our amplifier, our engineers have optimised the product and documented it in this manual. 2 Channel The notes and illustrations in this manual will help you to get the best performance out of your amplifier.
  • Page 3: Troubleshooting

    TA-602 2 Channel RMS 60Wx2CH System Example (Stereo Mode) System Example (Bridged Mode) Troubleshooting Symptoms Check Cure ● Check speakers for damage ● Have your dealer inspect Amplifier turns off at low volume levels. or short circuit. the speakers ● Is the power LED I lluminated? ●...
  • Page 4 TA-604 4 Channel Feature Guide 4 Channel RMS 60Wx4CH (1) LINE INPUT : This allows connection to any head unit that has a RCA outputs. (2) HIGH LEVEL INPUT : This allow connection to any head unit that has no RCA output via the use of the high level speaker wires. In the picture to the left you will see an enlarged drawing of the high level input connector.
  • Page 5: Power Cable Calculator

    TA-604 Power Cable Calculator 4 Channel RMS 60Wx4CH Total Amperage 0-4ft 4-7ft 7-10ft 10-13ft 13-16ft 16-19ft 19-22ft 22-28ft 0-20 20-35 35-50 50-65 65-85 85-105 105-125 125-150 The above chart shows cable gauges to be used, if no less than a 0.5 volt drop is acceptable. If aluminum wire or tinned wire is used, the gauges sould be of an even larger size to compensate.
  • Page 6 TA-series Specifications TA-602 TA-604 into 4 Ohms at 14.4V 60W x 2Ch 60W x 4Ch into 2 Ohms at 14.4V 95W x 2Ch 95W x 4Ch Bridged 4 Ohms 14.4V 200W x 1Ch 200W x 2Ch Frequency Response 20Hz ~ 22KHz 20Hz ~ 22KHz S/N Ratio with A-Weight >...
