CODE
R
TB
E
P
SS
T
L
PF
WI
S
N
DW
GC
C
NOTE: Take long pieces L and place tees T on the ends and align the holes. Put a screw S through the holes
and start a nut N on the screw S.
1.
Place a tee T on the end of a platform PF and align the holes. Put a screw S through the holes, and start a
nut N on the screw S. Repeat on other three ends. This will be the top shelf.
2.
For the bottom shelf, place a tee T on the end of the remaining platform PF and align the holes. Put a
screw S through the holes and start screw into the threads in the short spacer SS. The short spacer SS
should be a tight fit between the platform PF ends, and the indented hole should be on the outside.
Continue on the other three ends.
3.
Place the wheel inserts into the bottom of the endframes E. The endframe ends should be distorted, tapping
may be necessary.
4.
Place the end frame E (with the indented hole on the INSIDE) through the tees T of the top shelf, then the
middle, and finally the bottom shelf. Repeat with other end frame E
5.
Position the top shelf as desired and tighten the screws S, (use a large flat head screwdriver). Place the
remaining shelves where desired and tighten the screws S.
6.
Insert a screw S into the top hole of the end frame E. With the head of the screw on the outside, hang slide
rod R over the screw (on the INSIDE of the stand). Thread the screw into the top bracket.
7.
Position the bottom of the slide rod R on the outside of the short spacer SS. Place a screw S through the
hole on the short spacer SS (with the head of the screw on the INSIDE) and between the slide rod R ends.
Put a domed washer DW on the screw S with the indented side towards the slide rod R ends. Install and
tighten a nut N. Place a screw cover C on the end of the screw S. Repeat on the other end.
8.
Insert the wheels firmly until locked in place. Place the plant trays P on the shelves. Level the shelves by
loosening the screws and adjusting the tees T.

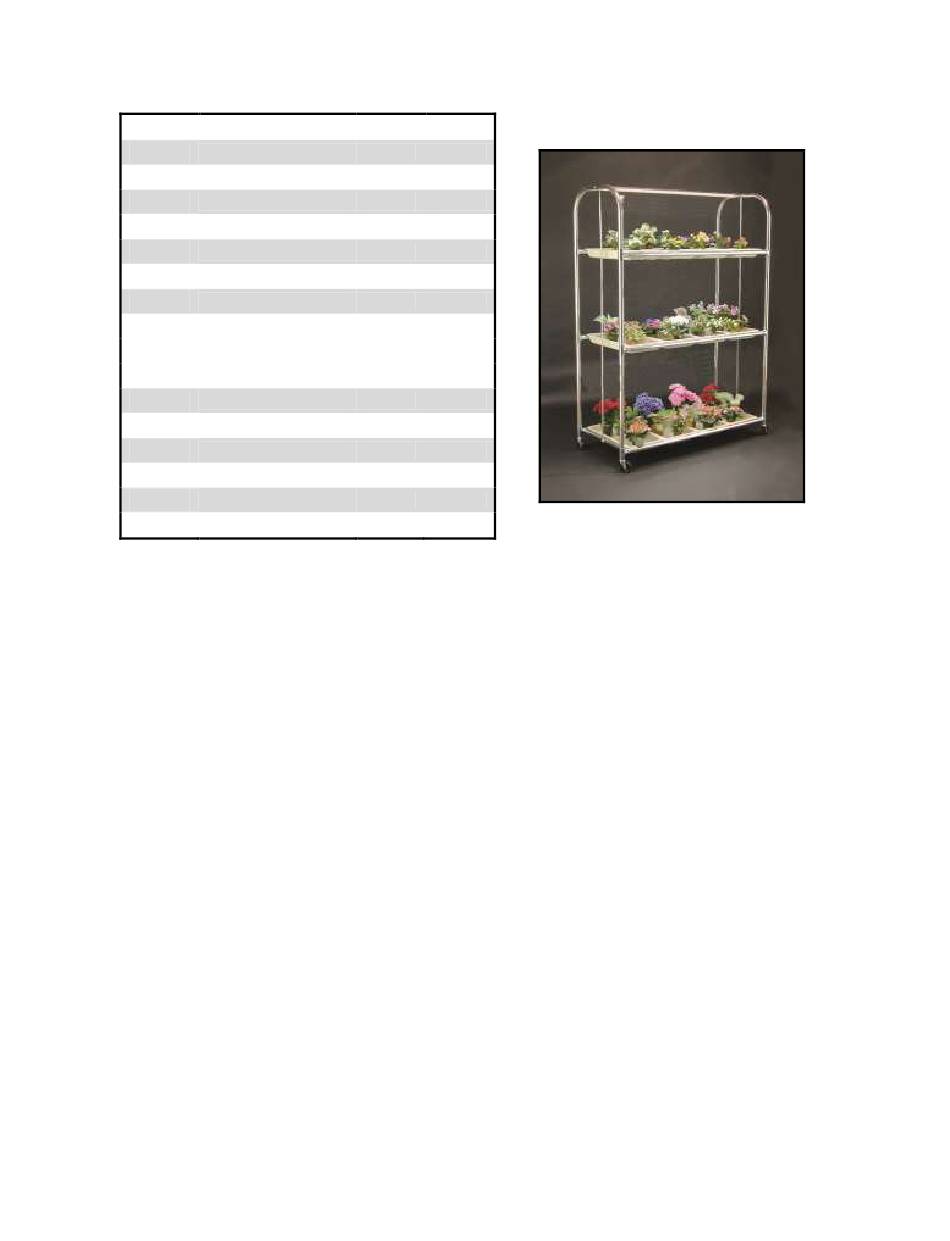

SEEDLING CART
ASSEMBLY INSTRUCTIONS
GA3
STAND PARTS
Slide rod
Top bracket
End frame
Plant tray
12
Short spacer
Tee
12
Long piece
Platform
BAG KIT
Wheel & insert
Screw
16
Nut
10
Domed washer
Ground cord
Screw cover
This will be the middle shelf/shelves.
GA4
2
2
1
1
2
2
16
2
2
16
2
4
2
2
4
4
20
14
2
2
1
1
2
2
