AutoFlush
for Urinals & Toilets
Installation INSTRUCTIONS
The AutoFlush
™
sends out a continuous infrared beam that is reflected back by the presence of a person in front of the urinal or toilet.
"Object Lock" technology differentiates between someone walking past the unit or actually using the fixture.

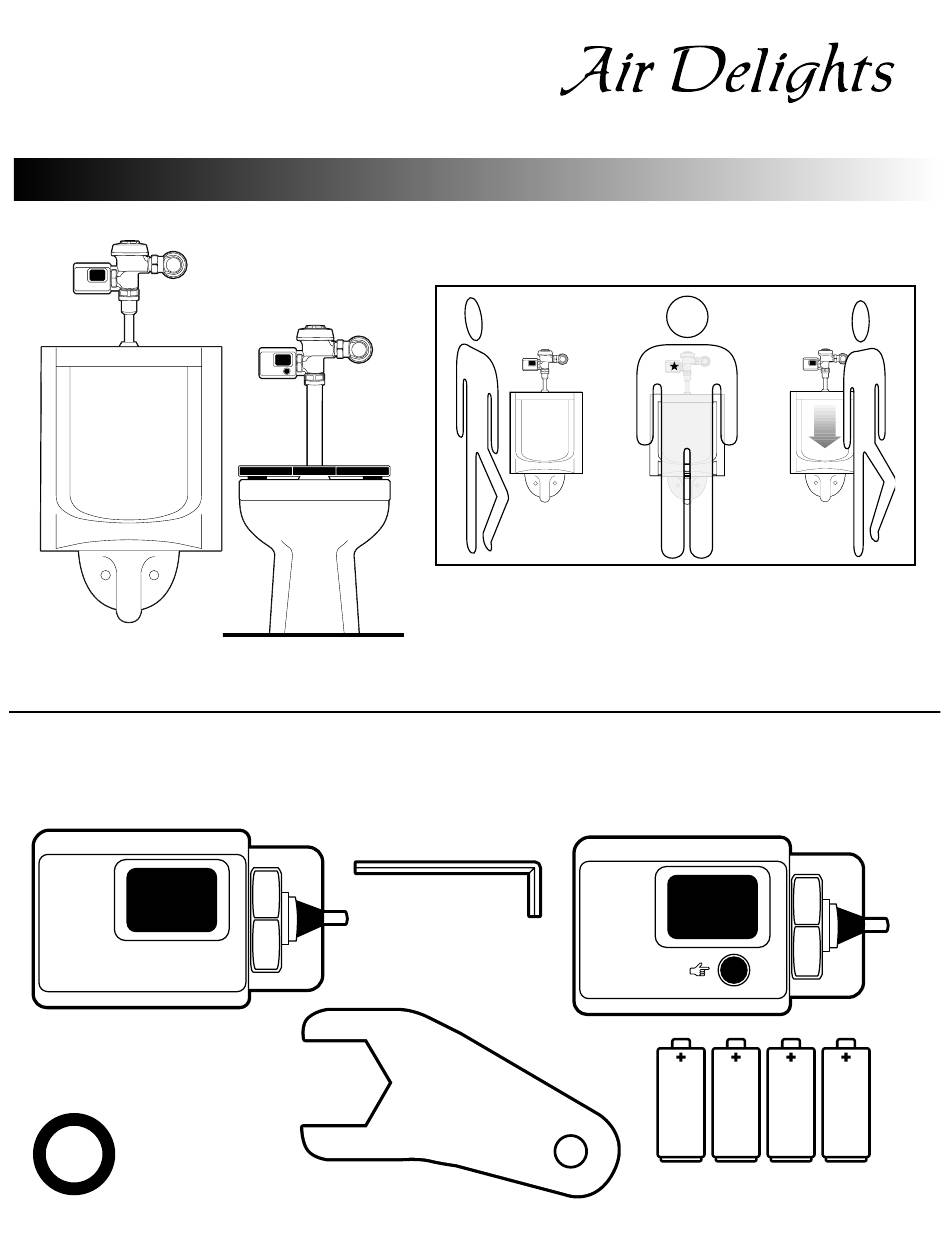

AUTOFLUSH COMPONENTS
AutoFlush for Urinals
Collar
Gasket
Unit
®
Battery
Compartment
Wrench
Collar Wrench

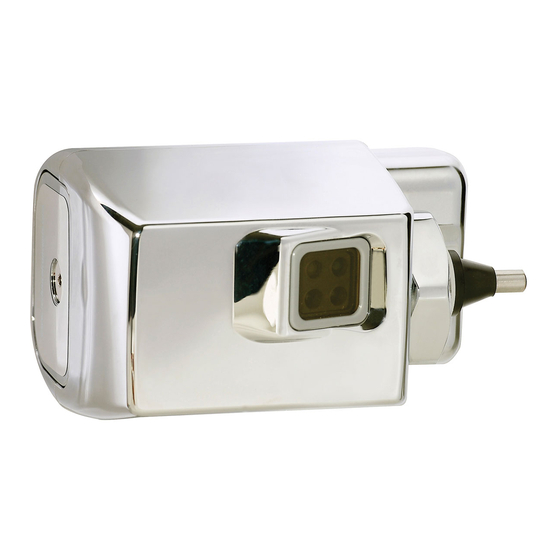

AutoFlush for Toilets
4 "C" Alkaline Batteries
Advertisement
Table of Contents
Summary of Contents for Air Delights AutoFlush
- Page 1 “Object Lock” technology differentiates between someone walking past the unit or actually using the fixture. AUTOFLUSH COMPONENTS AutoFlush for Urinals AutoFlush for Toilets Battery...
- Page 2 Install Battery Compartment adjustment of the activation distance, see Appendix A—Adjusting your AutoFlush. The AutoFlush unit has a 7 minute start-up sequence in which the Object Lock Object Lock Sensor Sensor will flash the User-In-View green L.E.D. continuously as long as a user is in view.
- Page 3 Remove battery compartment tray as shown at left. Remove cover and sensor adjustor tool as shown at left. Replace battery compartment in AutoFlush to activate unit. Press sensor range reset button shown on next page (the green L.E.D.will flash continuously when it has an object in view for the seven minute reset period).
- Page 4 Sensor activation distance.(See Appendix B.Adjusting door as a user the AutoFlush) AutoFlush unit is in 7 minute start up mode (when first Green L.E.D.(light) flashes Green L.E.D.(light) will flash only 3 times activated) or Sensor Range Reset Button has been...
