Summary of Contents for NOYAFA NF-8108

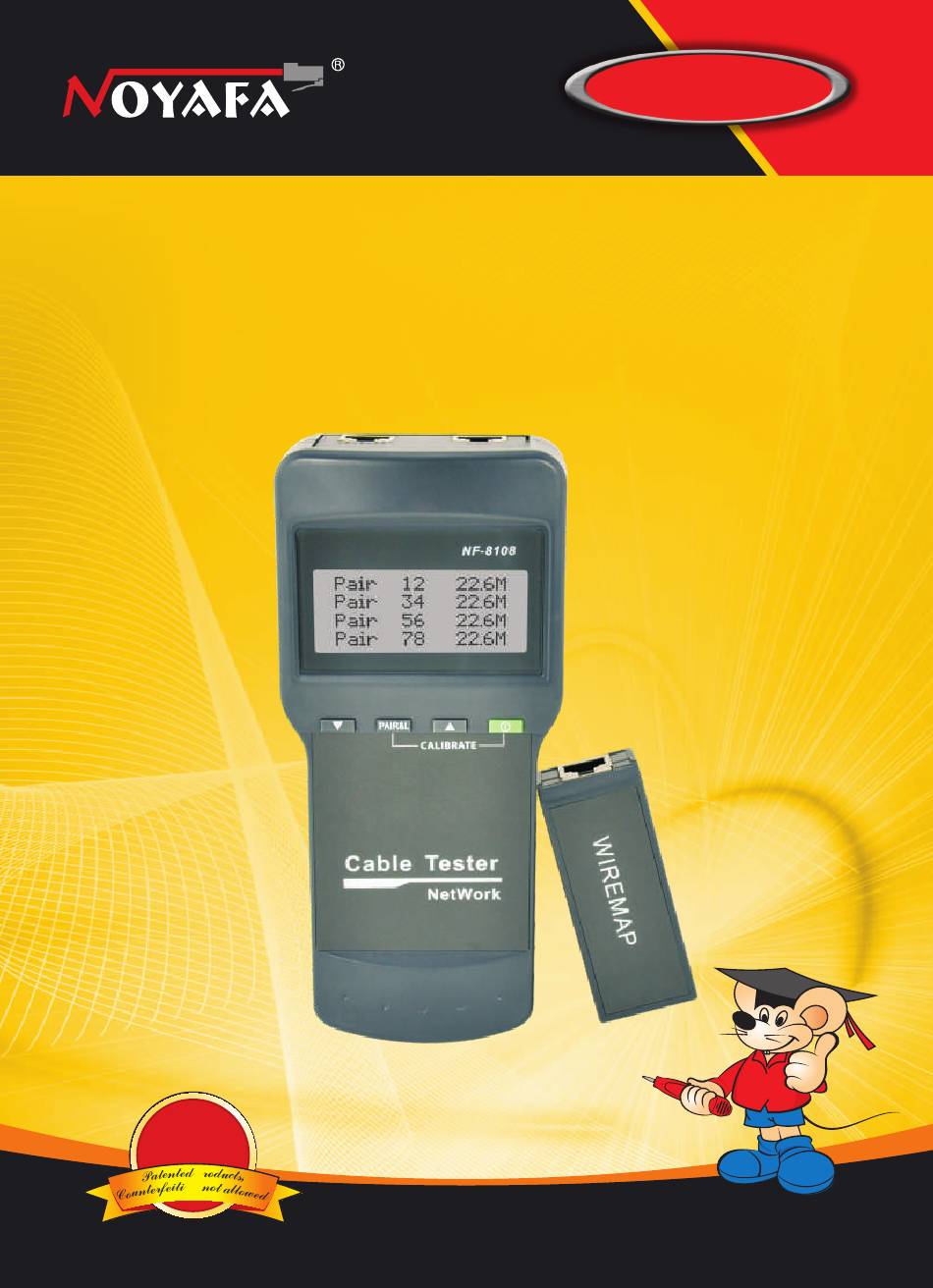

- Page 1 MODEL:NF-8108 Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Network Cable Tester ORIGINAL ORIGINAL AUTHENTIC AUTHENTIC REV1.0...
- Page 2 Please read and learn safety instructions before use or maintain the equipment Please store the test in right place and operate in correct way in case of the sharp probe hurts sb . Main testerr uses 6V DC for power supply;Receiver uses 9V battery for power supply .
-
Page 3: Table Of Contents
Contents Overview..............01 Main Functions and features........02 Technical index ............02 Product interface and keypad Introduction...04 Product operation methods........05 Diagram of series products........12 Your excellent helper in cable test! -
Page 4: Overview

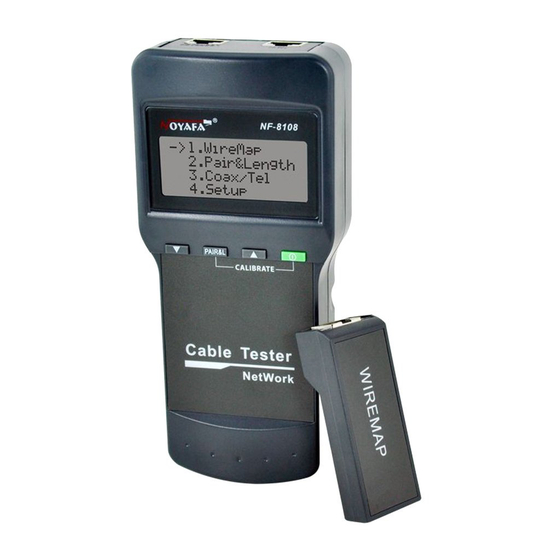

The equipment is composed of tester (NF-8108) and remote identifiers..It is especially designed to check and test network cable. Such as open, short, reserve. NF8108-M can also test cable length accurately. Thus, it becomes an avaiable tool in communiction field. -
Page 5: Main Functions And Features
Main Functions and features One person enough to complete cable continuity check. Check wiring error in 5E, 6E, coaxial cable such as open, short, jumper wire, reverse connection . Measure cable length and determine the distance of open and short circuit. Simple and easy use. - Page 6 (5). Ambient temperature in work -10℃~+60℃ (6). Tester Ports Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), Remote identifier RJ45 port ® (7). Length Measurement of Twin Twisted Cable Scope: 1~305 M ( 3 ~1000 ft) Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable >...
-
Page 7: Product Interface And Keypad Introduction
Product interface and keypad Introduction MAIN LOOPBACK NF-8108 1 . w i r e m a p 2 . p a i r &l e n g t h 3 . c o a x / t e l 4 . s e t u p RJ45 PAIR&L... -
Page 8: Product Operation Methods
Product operation methods Start and display: Carry out self-checking at the same time (The dotted line dynamically displays the course of self-checking from left to right): N e t W o r k C a b l e T e s t e r Wait 5 seconds or push any key to display main menu. - Page 9 Test Result 1: Short circuit (SHORT) It displays as follows if there is any short circuit in cable or terminal: (e.g.12 short circuit in the sample) S h o r t : At the moment,push key to restart testing or push key to PAIR&L return main menu.Always eliminate short circuit error first and then...
- Page 10 Test Result 4: Wiring diagram (WIREMAP) display when there is an open circuit at the far-end of cable. W i r e m a p : f a i l R: 12 x45 x78 id1 Iiiiiiii M: 12345678 "R:" line "3" and "6" pin location display "x", it indicates an open circuit in far-end plug "3"...
- Page 11 Pair and length measurement (PAIR & LENGTH) function: After entering into “PAIR & LENGTH" measurement , the tester shall have pair and length (PAIR & LENGTH) test and it will display as follows to indicate the measurement is being undertaken: ----T e s t i n g ---- 1 2 3 4 5 6 7 8 .
- Page 12 Test Result 3: Abnormal pair and length (PAIR &LENGTH) display It will display the paired lines first if there is unpaired lines and length (PAIR & LENGTH) measurement: P a i r 1 2 1 0 0 . 0 m P a i r 3 6 1 0 0 .
- Page 13 Calibration and setup (SETUP) function: After entering into calibration and setup (SETUP) function, the tester shall display as follows: ----s e t u p ---- U n i t : m e t e r C a l i b r a t i o n Q u i t Push key to move cursor...
- Page 14 At the moment, push key (No) to exit calibration function. Push (Yes) to repeat the measurement. S h o r t C o n t i n u e ? y e s At the moment, push key (No) to exit calibration function. Push (Yes) to repeat the measurement.
-
Page 15: Diagram Of Series Products
NF-306 NF-868 NF-8208 NF-268 NF-806R NF-816 NF-468L NF-3468 NF8108-M NF-388 NF-903 NF-906A Your excellent helper ! Your excellent helper in cable test! - Page 16 Your excellent helper in cable test! SHENZHEN NOYAFA ELECTRONIC CO.,LTD...
