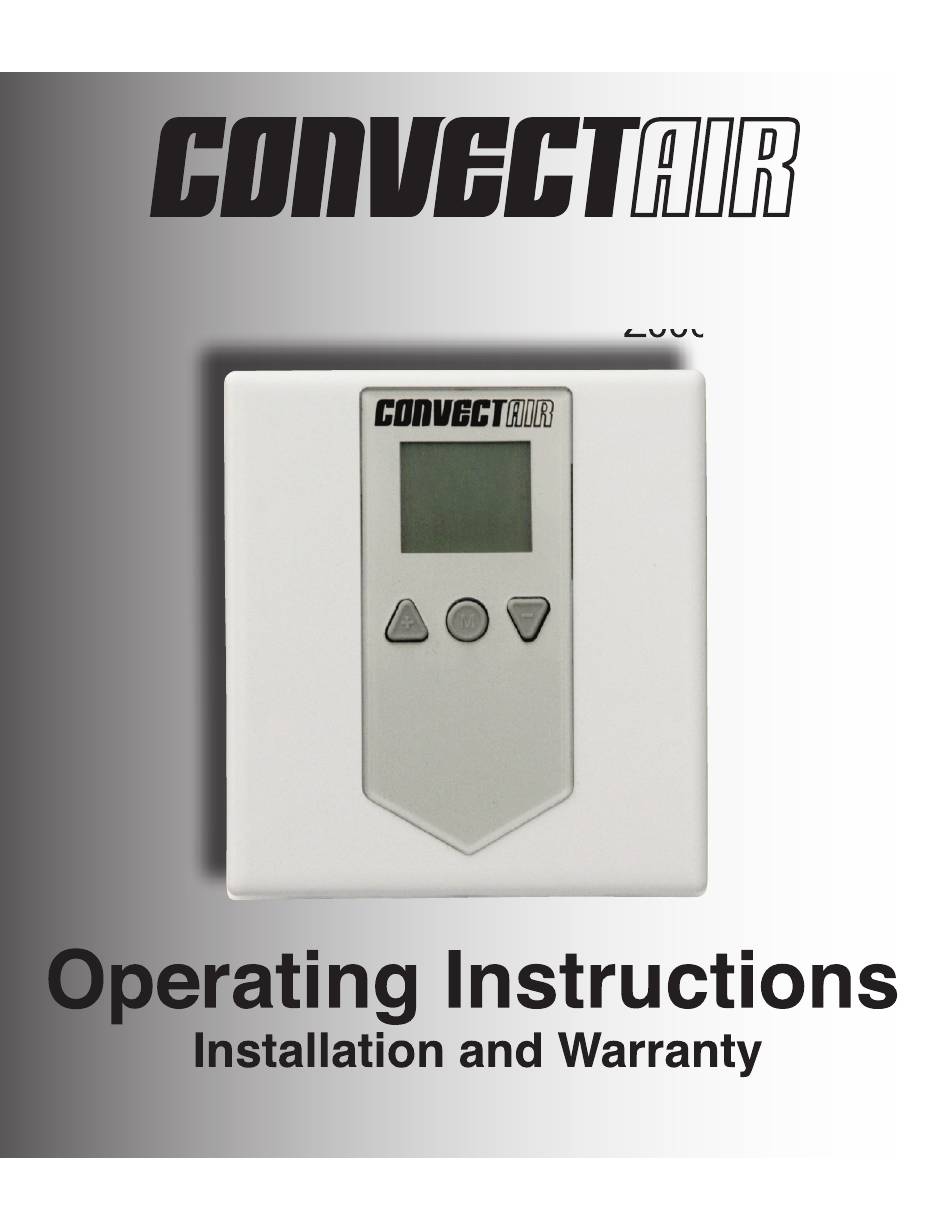

Page 1 Apéro Wall-Mount Controller (AWC) Z000 - 900 - 002 (To be read and kept by user)
Page 2: Table Of Contents
Foreword : Dear consumer, - Congratulation on the purchase of your new CONVECTAIR Apéro Wall- Mount Controller (AWC). - CONVECTAIR designs and manufactures high quality products for the electrical industry. - For maximum comfort and utmost efﬁciency of your heater, please read the installation and operation instructions contained in this manual.
Page 3: Quick Start
The Apéro Wall-Mount Controller (AWC) replaces a wall thermostat using the existing wires. It makes it possible to remotely adjust the temperature of one or more CONVECTAIR Apéro Digital heaters (model 7359). Warning The Apéro Wall-Mount Controller works ONLY with CONVECTAIR Apéro Digital heaters (model 7359).
Page 4 Installation and connection See diagrams on pages 6 and 8 Start-up Once the connections are made, restore power to the breaker. The AWC will show 21 °C and the installation will be functional in Comfort mode (page 12). Setting the temperature increases or decreases the desired temperature (page 13).
Page 5 Select unit of temperature °C or °F In Stand-by mode, simultaneously press for 3 seconds (page 12) Lock or unlock the controls In the desired mode, simultaneously press for 3 seconds (page 16) Troubleshooting (page 17). Contact CONVECTAIR (page 20).
Page 6: Description
Description The Apéro Wall-Mount Controller (AWC) makes it possible to control the thermostat of one or more Apéro 7359 electric heaters located in the same room. The Apéro Wall-Mount Controller (AWC) should never be used as a control center for the entire house. It can control up to four heaters and has a maximum capacity of 4000 W (240V).
Page 7: Installation
To prevent electric shock, disconnect power to the conducting wires at circuit breaker panel prior to installation. CONVECTAIR recommends that the devices be installed by a qualiﬁed electrician, in accordance with national and local codes. 3. Make sure that the Apéro Wall Controller air vents are free from...
Page 8 4. Make the appropriate connections according to the ﬁgures below, depending on the type of installation (2-wire or 4-wire), using the provided wire connectors. For an aluminum wire connection, be sure to use CO / ALR connectors. The Apéro Wall-Mount Controller wires have no polarity and the direction of the connection has no effect.
Page 9 5. Slightly unscrew the captive screw and slide the front of device upward to remove it. 6. Using two supplied screws, secure the bottom of the Apéro Wall-Mount Controller to the junction box. 7. Replace front of the device and tighten the screw.
Page 10: Operation
Operation Units of measure : Celsius/Fahrenheit Set temperature and modes Heat indicator display Daily repetition Temperature indicator setting Mode...
Page 11 1- Operating mode : The following ﬁve operating modes can be selected with - Comfort - Eco (setback of the temperature) - Eco with daily automatic repetition - Frost Protection - Stand-By (turning off the heat) Eco with daily automatic repetition Comfort Stand-by Frost Protection...
Page 12 2- Starting or stopping the Apéro Wall-Mount Controller : To start, press . The display shows the desired comfort temperature. until Stand-by is To stop the device, press reached Note : The Apéro Wall-Mount Controller memorizes your settings. 3- Select unit of temperature in °C or °F : In Stand-by mode Press simultaneously during 3...
Page 13 4- Adjusting the set temperature/ Comfort mode : With , the set temperature can be increased or decreased by 1° increments. Close windows and doors in the room and wait a few hours for the temperature to stabilize at the desired value. If the temperature reached is not suitable, increase or decrease the set point.
Page 14 To do so : Press until the display reads « Eco ». 6- Eco Mode with automatic daily repetition : automatic daily repetition mode automatically repeats the setback temperature period each day (Ex: at night). Once this period has ended, the Apéro Wall-Mount Controller will resume to Comfort mode.
Page 15 To set Eco temperature: press for 3 seconds and the temperature on the display will ﬂash. Press to obtain desired Eco temperature. Press to accept. Note : The temperature is relative to the Comfort temperature. If the Comfort setting is changed, the temperature will change automatically to maintain the same difference between the two values.
Page 16 1. In the Eco mode to be programmed, press for 3 seconds, the display will ﬂash indicating the current length or «- -» if the Eco mode is permanent. 2. Adjust length with 3. Press to accept. 9- Frost Protection Mode : If you are away from home for a long period of time (+ 24 hours), this operating mode keeps the room temperature at approximately...
Page 17: Troubleshooting
Troubleshooting PROBLEM VERIFICATION ACTION - Press any key on the Apéro. - Connect the purple wire (pilot - Does the Apéro display show wire) with the black wire of the - The heater(s) does(do) «AU» Apéro. not respond to the AWC - Is the purple wire (pilot wire) - The display should show setting.
Page 18 - Redo this veriﬁcation in the - If the problem persists, devices controlled by the evening when there is no acti- contact CONVECTAIR for same AWC, one device vity or other sources of heat in more information and to generates lots of heat and...
Page 19: Technical Specifications
Apéro 7359 heaters, these devices automatically switch to «remote control» mode. They cannot be used independently unless they are reset. If this is the case, contact CONVECTAIR customer service for the necessary instructions to restore the operation of these devices (Tel.: 1-800-463-6478).
Page 20: Warranty
Warranty 2 YEARS against all defects The CONVECTAIR Apéro Wall-Mount Controller has a 2-year warranty on all parts against defects in materials and workmanship. It begins on the date of purchase by the consumer and according to its speciﬁc conditions. All details are provided with each device.
