Summary of Contents for MarMonix MLD-705

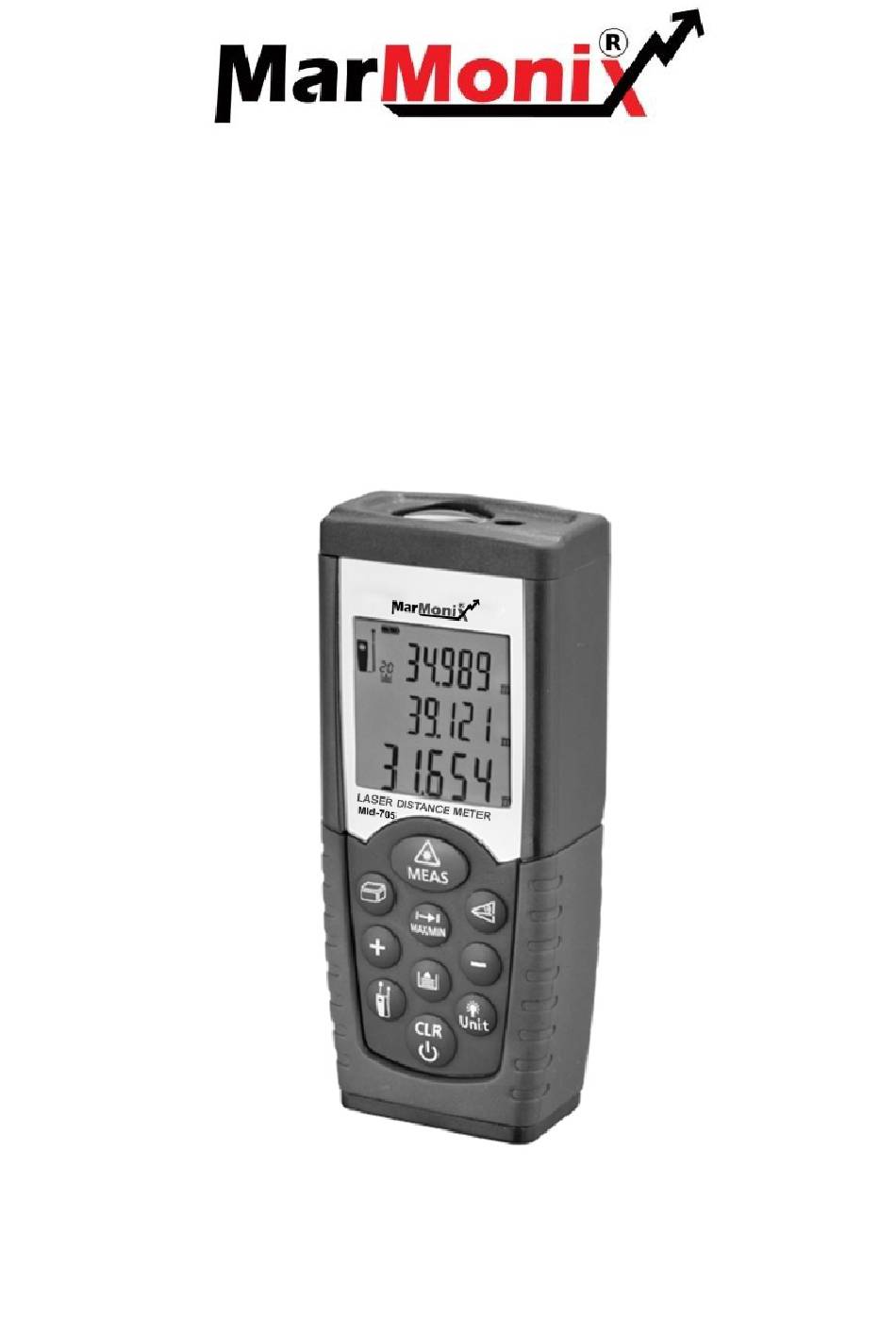

- Page 1 Laser distance meter Products Code: MLD-705 User manual WWW.MARMONIX.CO...
-
Page 2: Table Of Contents
Content 1. Safety Instruction 2. Start-Up 3. Initial Operating and Setting 4. Measuring 5. Functions 6. Technical Data 7. Troubleshooting-Causes and Corrective Measures 8. Measuring Conditions 9. Labelling The compact and handy base model was specifically designed for indoor applications. Shortcut and Soft grip keys for addition, subtraction, area and volume calculation make measuring fast and very reliable. -
Page 3: Safety Instruction
Carrying out modification or conversion of the product Use of accessories from other manufacturers without the express approval of Marmonix Technology Deliberate or irresponsible behavior on scaffolding, when using ladders, when measuring near machines which are running, or near parts of machines or installations which are unprotected ... - Page 4 Laser Classification The Marmonix produced a visible laser beam which emerges from the front of the instrument. Laser Class 2 products: Do not stare into the laser beam or direct it towards other people unnecessarily. Eye’s protection is normally afforded by a version responses including the blink reflex.
-
Page 5: Start-Up
2. Start-Up Inserting/replacing batteries (see “Figure A”) 1) Remove battery compartment lid. 2) Insert batteries, observing correct polarity. 3) Close the battery compartment again. Replace the batteries when the symbol “ ” flashes permanently in the display. Use alkaline batteries only. ... - Page 6 4. Single/ continous distance measurement button 5. Plus (+) button 6. Minus (-) button 7. Storage button 8. Reference button 9. Illuminating/UNITS button 10. Clear/Off button...
- Page 7 LCD Display (See “Figure C”) 1. Laser active 2. Reference level (front) 3. Reference level (rear) 4. Variable Area measurement Volume measurement Indirect measurement Indirect (second) measurement 5. Single distance measurement 6. Battery status 7. Historical memory 8. Instrument error warning 9.
-
Page 8: Initial Operating And Setting
3. Initial Operating and Setting Switching On and Off Switches on the instrument and laser Press this button longer to switch of the instrument The instrument switches off automatically after three minutes of inactivity. Clear Button The last action is cancelled or the data display is cleared. - Page 9 The default reference setting is from the rear of the instrument. Press this button to take selection from the front edge , A special beep sounds whenever the reference setting is changed. After a re-startup the reference returns automatically to the default setting (rear reference).
-
Page 10: Measuring
Display Illumination Click illumination/ UNITS button of the display can be switched on or off, user can trigger the function when he/she is in darkness situation. The value is clear visible o the LCD. Distance Unit Setting For Instrument Click the button longer to change the next type of unit, m, ft.in, ft+in then continue to click the button for the next unit selection 4. - Page 11 The continuous measurement function (tracking) is used for the transferring of measurements, e.g., from construction plans. In continuous measurement mode, the measuring tool can be moved to the target, whereby the measured value is updated approx. every 0.5 seconds in the third line. The corresponding minimum and maximum values are displayed dynamically in the first and second line.
-
Page 12: Functions
the function. The function is terminated automatically after continuous 100 times measurement. 5. Functions Addition/ Subtraction Distance measuring. The next measurement is added to the previous one. The next measurement is subtracted from the previous one. The last step is cancelled. Return to the single distance measurement Area Measurement Press the Area/Volume button. - Page 13 Volume Measurement For volume measurements, push Area/Volume button, twice until the indicator for volume measurement appears in the display. Afterwards, press to takes first distance measurement (e.g. length) press to takes second distance measurement (e.g. width) the result of the area measurement from the values already measured is displayed in the summary line.
- Page 14 Press this button once, the display shows. The distance to be measured flashes in the symbol. Aim at the upper point (1) and trigger the measurement. After the first measurement the value is adopted. Keep the instrument as horizontal as possible. Press to measurement the distance result of the horizontal point (2).
- Page 16 Indirect Measurement – Determining a Distance Using 3 measurements ( See “ Figure H”) Press this button twice; the display shows the symbol. The distance to be measured flashes in the symbol. Aim at the lower point (1) and trigger the measurement.
-
Page 17: Technical Data
buttons to navigate through these records. You can clear all records by press Storage button and Clear button simultaneously in historical storage mode. 6. Technical Data Technical Specifications 0.05 to 50 m*(0.16 ft to Range 164 ft*) Measuring accuracy up to 10m standard deviation) Typically: ±1.5mm** Measuring units... -
Page 18: Troubleshooting-Causes And Corrective Measures
Super Soft-Touch Keyboard Type (Long life) 0˚C to 40˚C Operating Temperature (32˚F to 104˚F) -10˚C to 60˚C Storage Temperature (14˚F to 140˚F) up to 4,000 Battery Life measurements Batteries Type AAA 2x1.5V Auto. Laser switch-off after 0.5 min Auto instrument switch-off after 3 min Dimension 115x48x28 mm... -
Page 19: Measuring Conditions
Corrective Code Cause measure 204 Calculator error Repeat procedure Received signal too weak, measurement time too long, Distance > 50m Use target plate Target too Received signal too reflective (use strong target plate) Cool down 252 Temperature too high instrument Warm up 253 Temperature too low instrument... - Page 20 Measuring Range The range is limited to 50m. At night or dusk and if the target is in shadow the measuring range without target plate is increased. Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties.
-
Page 21: Labelling
9. Labelling...
