Calimet RA-I00H Instruction Manual

Gate operator receiver

Receiver Instruction Manual

Gate Operator Receiver

RA-I00H

Frequency：418MHZ

Voltage：9-24V

Method：EV1527&DECODE，

Quantity：1000000&6500

Measurement：145mm*81mm*41mm

1．Introduction

Numeric Mode: Easy to set up, 6500 code combination, low rate of duplicated

codes to ensure safety

Learning Mode: Easy to set up, 100000 code combination, low rate of

duplicated codes to ensure safety

2．Receiver Installation

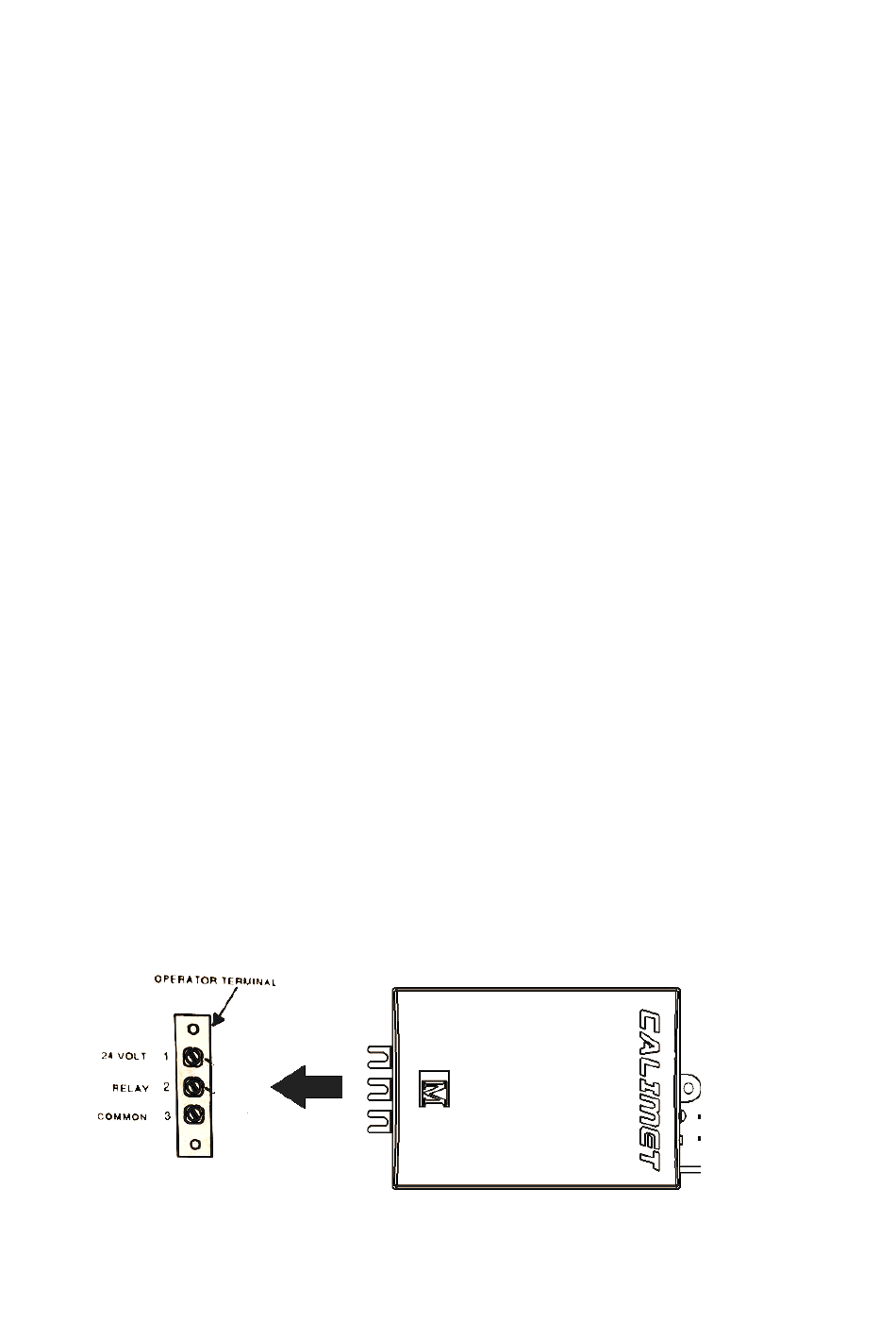

Plug receiver directly into the gate opener, the receiver can be installed on the

terminal that cannot be remotely controlled. (Figure 1)

Table of Contents

Need help?

Do you have a question about the RA-I00H and is the answer not in the manual?

Page 1 Receiver Instruction Manual Gate Operator Receiver RA-I00H Frequency：418MHZ Voltage：9-24V Method：EV1527&DECODE， Quantity：1000000&6500 Measurement：145mm*81mm*41mm 1．Introduction Numeric Mode: Easy to set up, 6500 code combination, low rate of duplicated codes to ensure safety Learning Mode: Easy to set up, 100000 code combination, low rate of duplicated codes to ensure safety 2．Receiver Installation...
Page 2 Figure 1， Tighten screws after receiver is plugged in Once the power is on, signal light starts blinking when properly installed. 3．Program Numerical or Learning Mode Numerical Mode: 1. Unscrew the bolts on the remote 2. Key 1 & Key 2 are compatible with two button remote. Choose only one button for setting ( not suitable for Learning Mode)
Page 3 4. Instruction for dual function remote (Numeric and Learning Mode) 1. Before using the new remote, unscrew the bolts on the back of the remote (see figure) 2. “STUDY” and ”DECODE”。 Choose from “STUDY” or “DECODE”. For learning mode choose STUDY, for numerical mode choose DECODE. (Factory setting: Learning Mode) 3.
