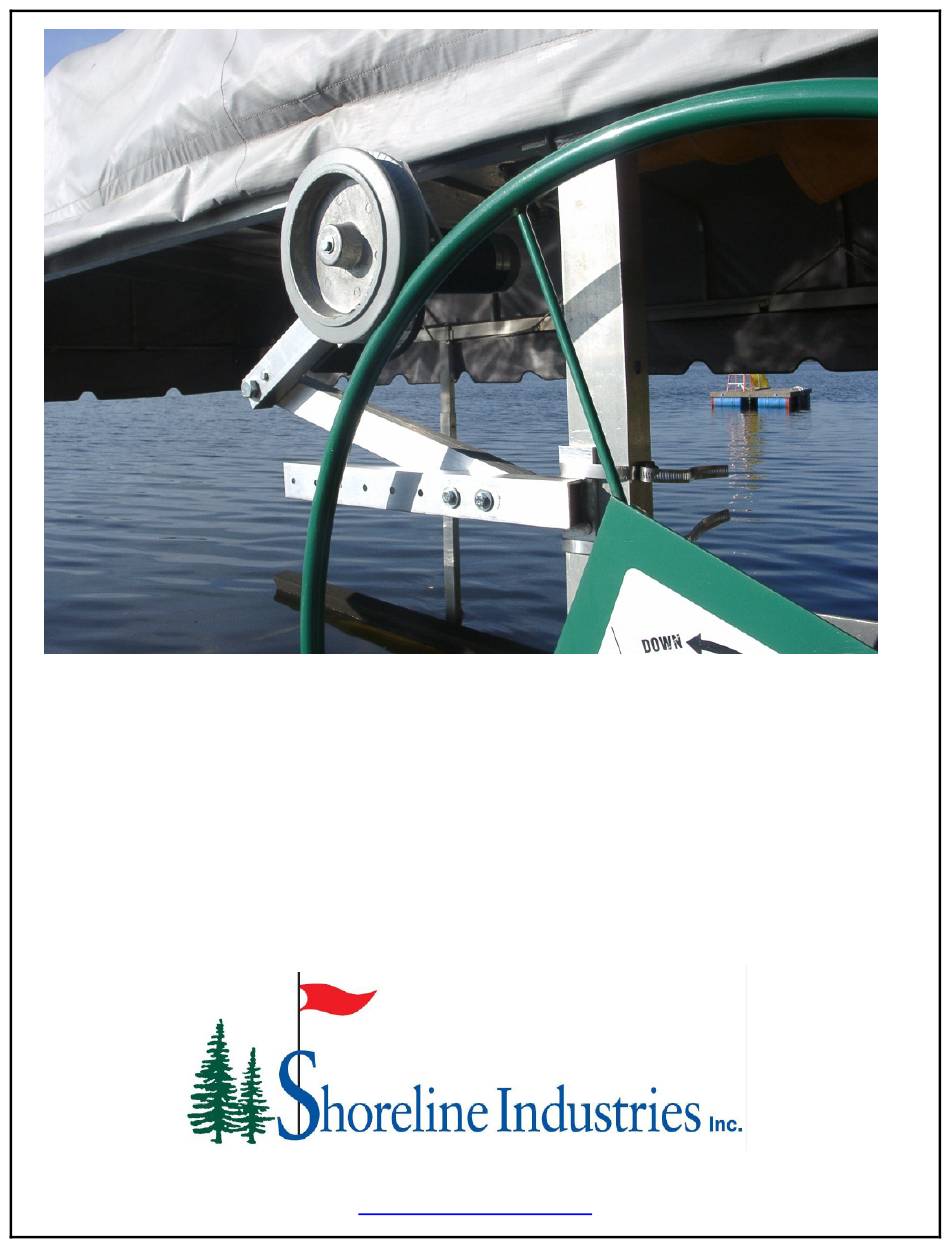

- Page 1 “LIFT MATE” BOAT LIFT MOTOR ASSEMBLY Assembly and Operating Manual www.boatliftmotor.com...
-
Page 2: Limited Warranty
Shoreline Industries, Inc. warrants its products shall be free from defects in materials and workmanship for a period of two years from the date of purchase as shown on the customer’s invoice. Shoreline’s warranty is limited to products purchased new by the original owner and is not transferable. - Page 3 ACCESSORIES/OPTIONS REMOTE CONTROL ADD-ON KIT Turns any Lift Mate into a “keyless remote” like your automobile. 20 FT. BATTERY CABLE PONTOON KIT 25 FT. BATTERY CABLE FOR PONTOONS 3 ft. wheel extension. Moves the wheel away from 30 FT. BATTERY CABLE FOR PONTOONS the winch.
-
Page 4: Packing List
PACKING LIST INSPECT SHIPMENT Your boat lift motor was shipped complete in one carton. Use care when handling the carton. Remove all items from your shipping carton. Check all items against the packing list below. Note any items lost or damaged in shipment. Note any damage to the shipping carton. -
Page 5: Plan Your Installation
As viewed from Dock See Fig. 2 & 3. FIG. 2 Note that the Lift Mate motor is mounted so that it Lift is between the left and right lift posts. Motor See Fig. - Page 6 STEP 1: INSTALL INNER ARM WITH BRACKET ONTO WINCH POST Inner Arm Inner Arm FIG. 7: Right Post Winch Post Installation FIG 6: Left Winch Post Installation View Band Strap Band Strap Band Strap Band Strap FIG. 9: Right Winch Post Installation FIG.
- Page 7 STEP 2: INSTALL OUTER ARM ONTO INNER ARM Outer Inner FIG 11: Right Winch Post Installation View FIG 10: Left Winch Post Installation View Inner Outer INSTALL OUTER ARM The outer arm can be installed in a variety of configurations. See Fig 12. The outer arm is the Outer transition piece between the inner arm and the lift motor.
- Page 8 STEP 3: INSTALL MOTOR ARM ONTO OUTER ARM Rubber Wheel INSTALL MOTOR ARM 1. Run the 5/8” pivot bolt thru the pivot hole in the motor arm with threads away from dock. See Fig. 14. 2. Run the 5/8” bolt thru the pivot hole in the outer Motor arm and lightly screw on 5/8”...
- Page 9 Motor Switch We recommend that you hook the harness to the boat battery on the 12 volt Lift Mate. The boat motor is charging the battery all the time. It is unlikely that Quick the lift motor would drain the battery so you cannot Connect start your boat.
- Page 10 OPERATING, MAINTENANCE AND STORAGE INSTRUCTIONS ON/OFF SWITCH The Lift Mate has a rocker style on/off switch. 1. Hold the switch up to raise the lift. 2. Hold the switch down to lower the lift. Caution: Stay clear of all moving parts during raising and lowering of the lift.
- Page 11 Rectangular Lift With Canopy Rubber Strap Rubber Strap Winch Post Winch Post Outer Arm Outer Arm Left Winch Post Installation Right Winch Post Installation Rectangular Lift Without Canopy Strap Strap Pivot Bolt Outer Outer Winch Post Winch Post Right Winch Post Installation Left Winch Post Installation...
- Page 12 Aluminum Shore Station Pivot Pivot Hole Hole Outer Outer Inner Inner Winch Winch Post Post Bolt Bolt Band Band Straps Straps Left Winch Post Installation Right Winch Post Installation ShoreMaster Aluminum Platform Hoists Outer Arm Inner Arm Canopy Post Inner Arm Outer Arm Band Canopy Post...
- Page 13 Steel Shore Station Inner Inner Pivot Pivot Hole Hole Band Band Straps Straps Outer Outer Right Winch Post Installation Left Winch Post Installation...
- Page 14 Problem Cause Remedy Motor will not run 1. Not connected to power source. 1. Connect to power source. 2. GFI button tripped. 2. Push in reset button on GFI. 3. Wiring and connections 3. Repair or Replace. corroded, worn, or frayed. 4.
-
Page 15: Exploded View
9, 10 16, 17 ( Not Shown) Exploded View... -
Page 16: Parts List
Parts List Part Description Number 1014519 12” Rubber Poly Strap (Not Shown) 1002614 Nut 5/8 - 11 SS Pivot Nut 1002458 Bolt 5/8 - 11 X 4 SS Pivot Bolt 1014432 Bolt 5/16 X 3" Zinc L/M Kit 1014429 Nut 5/16 Zinc Steel (L/M Kit) 1002608 5/16”...
